Legacy V Speaker System

$49,500.00

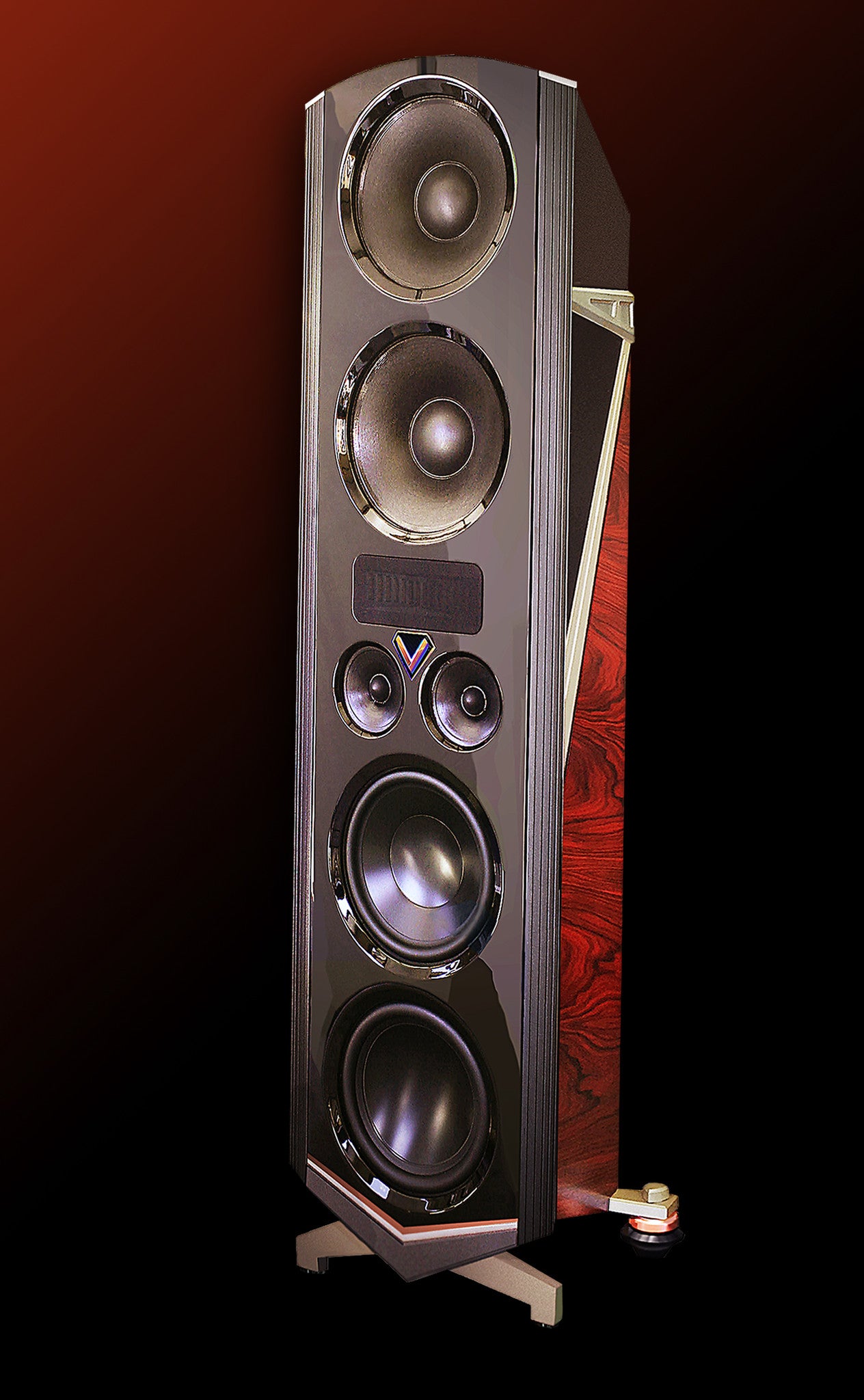

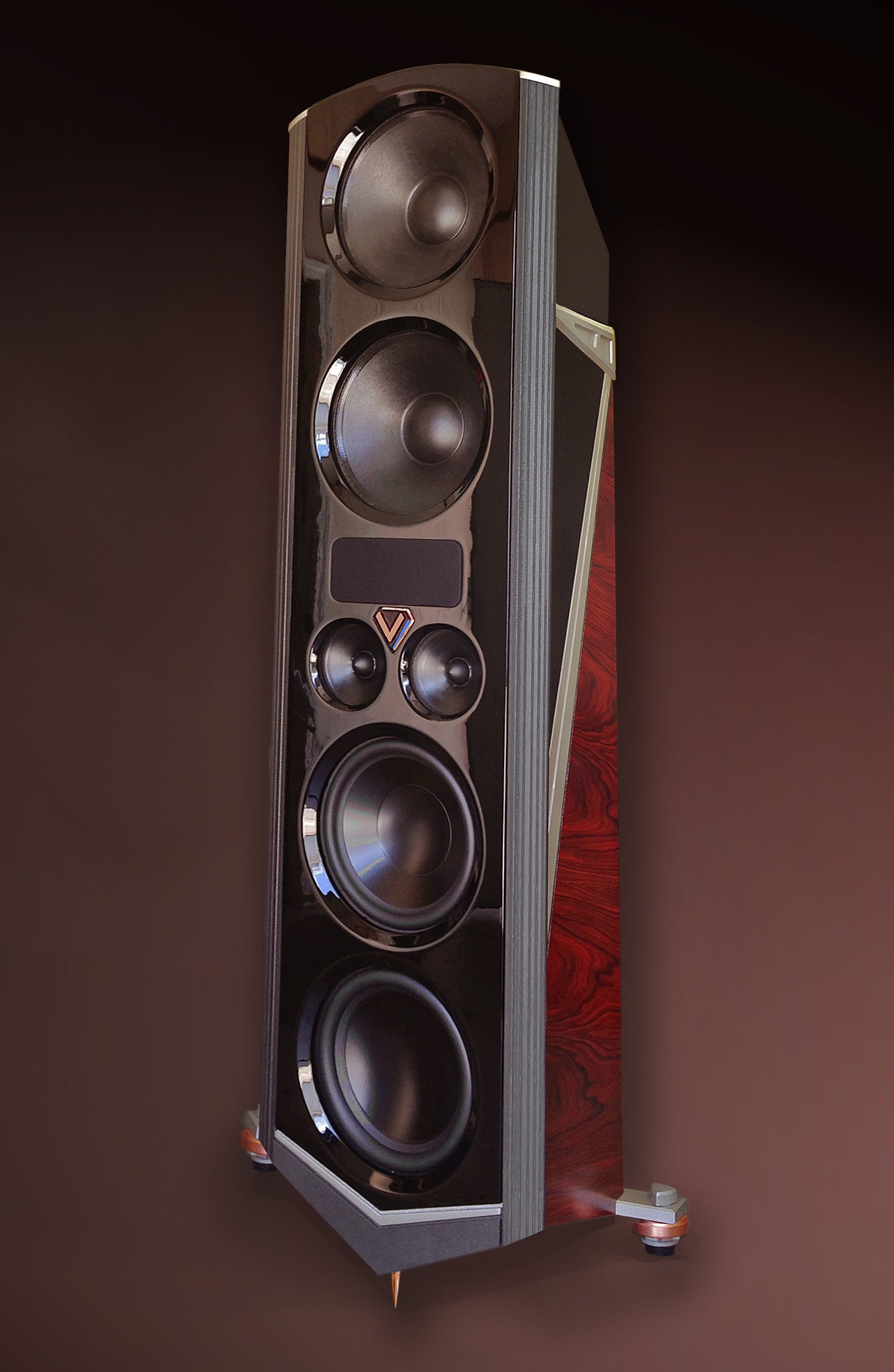

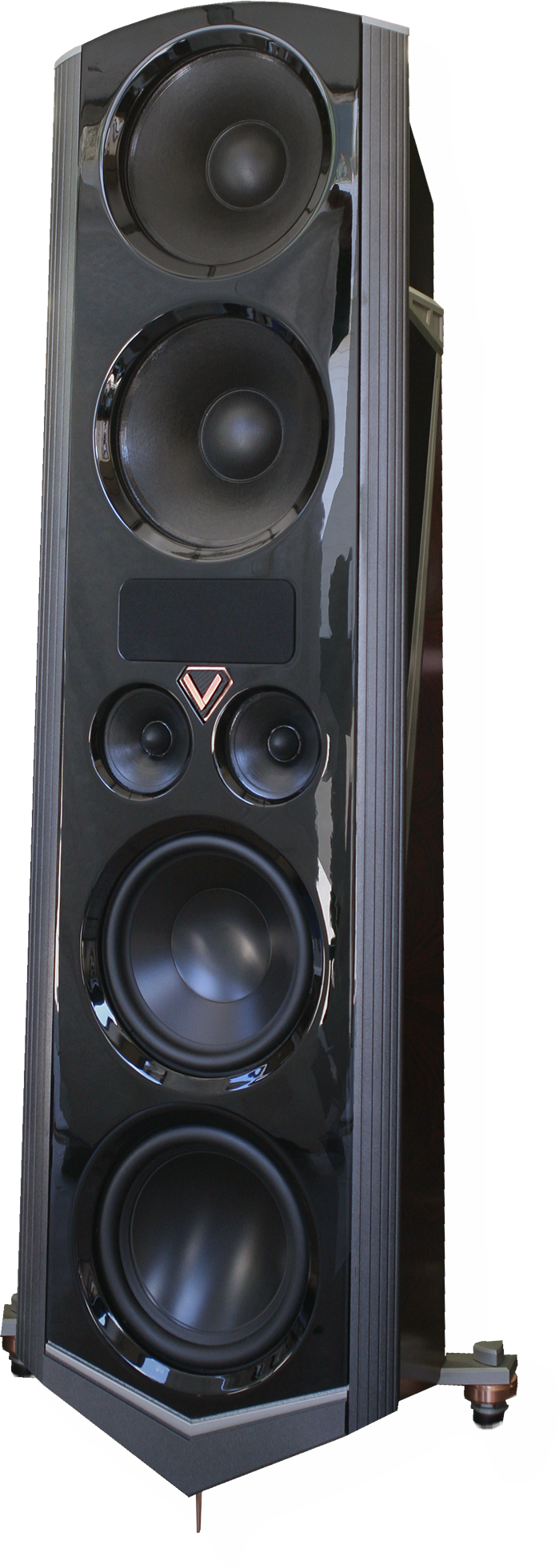

The V high performance speaker system from Legacy Audio is a groundbreaking achievement that unites perfect timing with incredible design.

The Legacy “V” is the first system to use the new dual 4” long Legacy AMT neodymium tweeters, arranged in a specially optimized post convergent array that masterfully presents treble which extends up to 30kHz. Building upon the advances first developed for the award winning AERIS speaker system, V features open air dual 14” carbon/pulp drivers delivering detailed and spacious midrange and bass.

Legacy Chief Designer Bill Dudleston utilized a 12” aluminum bass driver with a massive magnetic structure complemented by another 12” aluminum very low frequency radiator which drives three 10” mass loaded pneumatic radiators. The result? Unprecedented excursion at the longest wavelengths with superior dynamic response. The V speaker system even shapes low frequencies into a cardioid pattern to avoid room coloration. The low frequencies are amplified by the included 1,500 Watts of the latest generation of ICEpower® amplification.

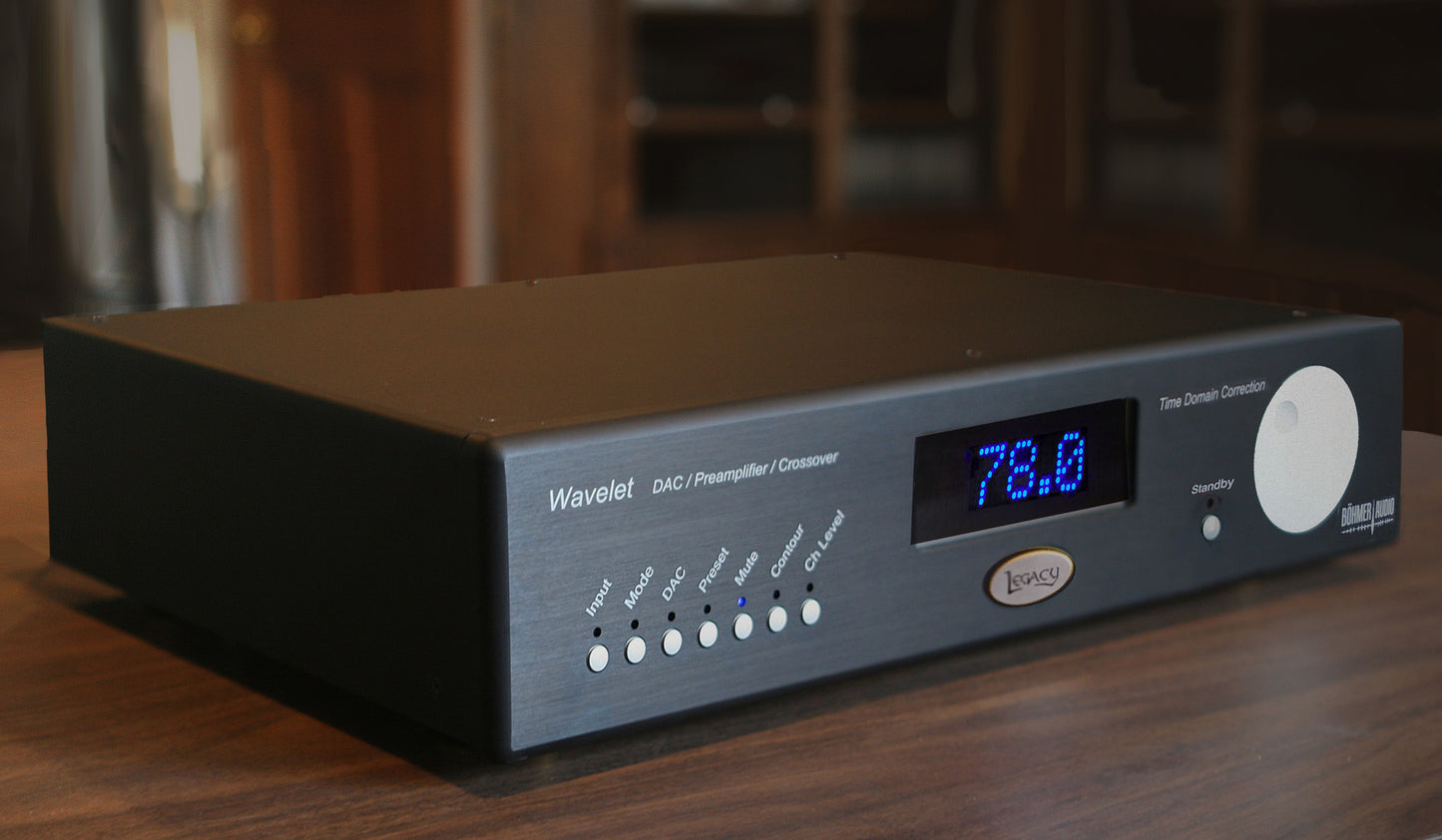

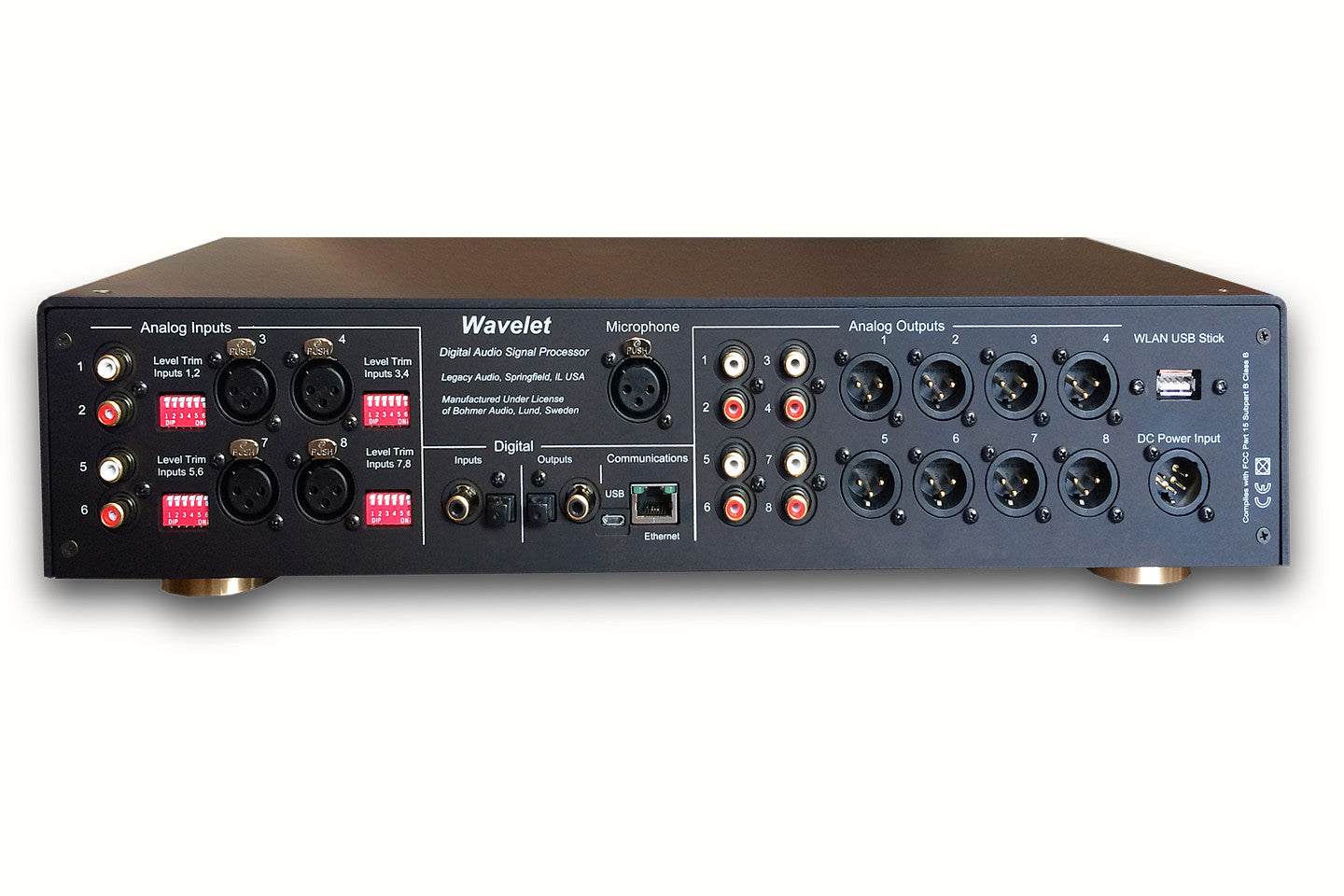

The system is the first to include the Legacy Wavelet Processor. Wavelet is a preamp, a four-way crossover with time alignment, a complete speaker and room resonance correction, and a high-end DAC with apodizing ability. The Preamp and DAC can also be bypassed at the touch of a button. Wavelet debuts the revolutionary Bohmer acoustic processing to optimize the loudspeaker/room acoustic transfer function in both the frequency and time domains. Working with new algorithms it starts with a psychoacoustically based measurement method with the provided calibrated microphone. Alignments are then individually optimized within an unprecedented 40ms window by way of a wireless iPad, smart phone or computer. The result is audibly improved transient response that allows the V system to operate accurately and consistently in any listening environment.

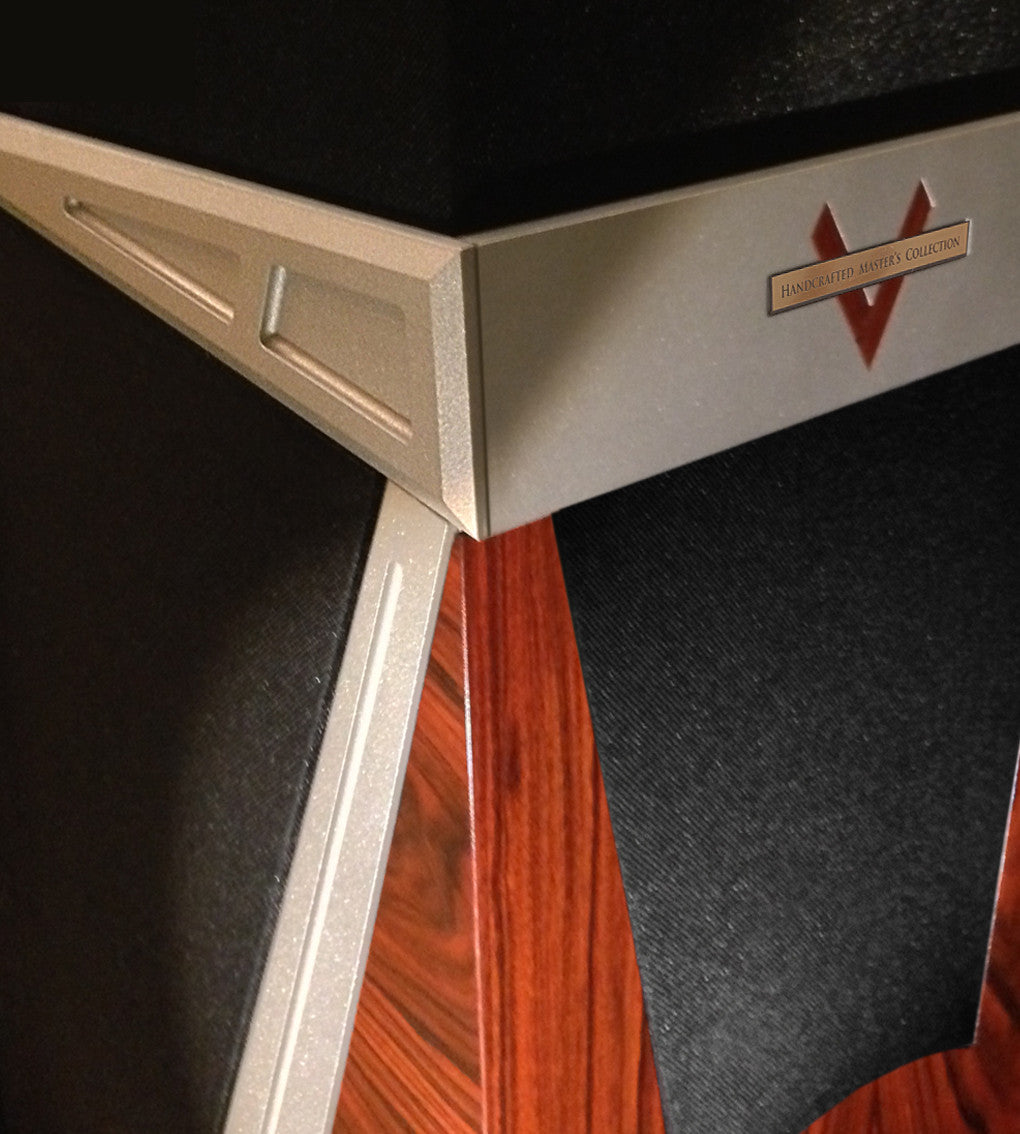

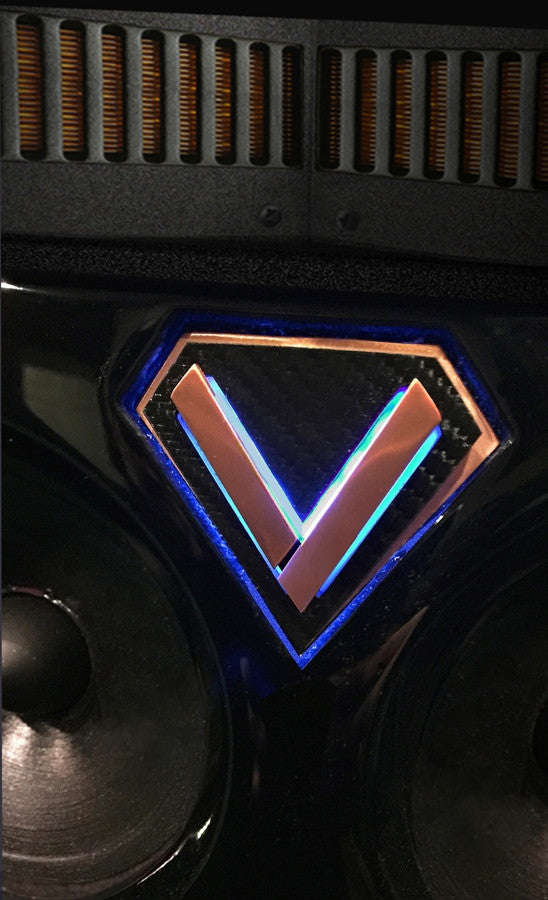

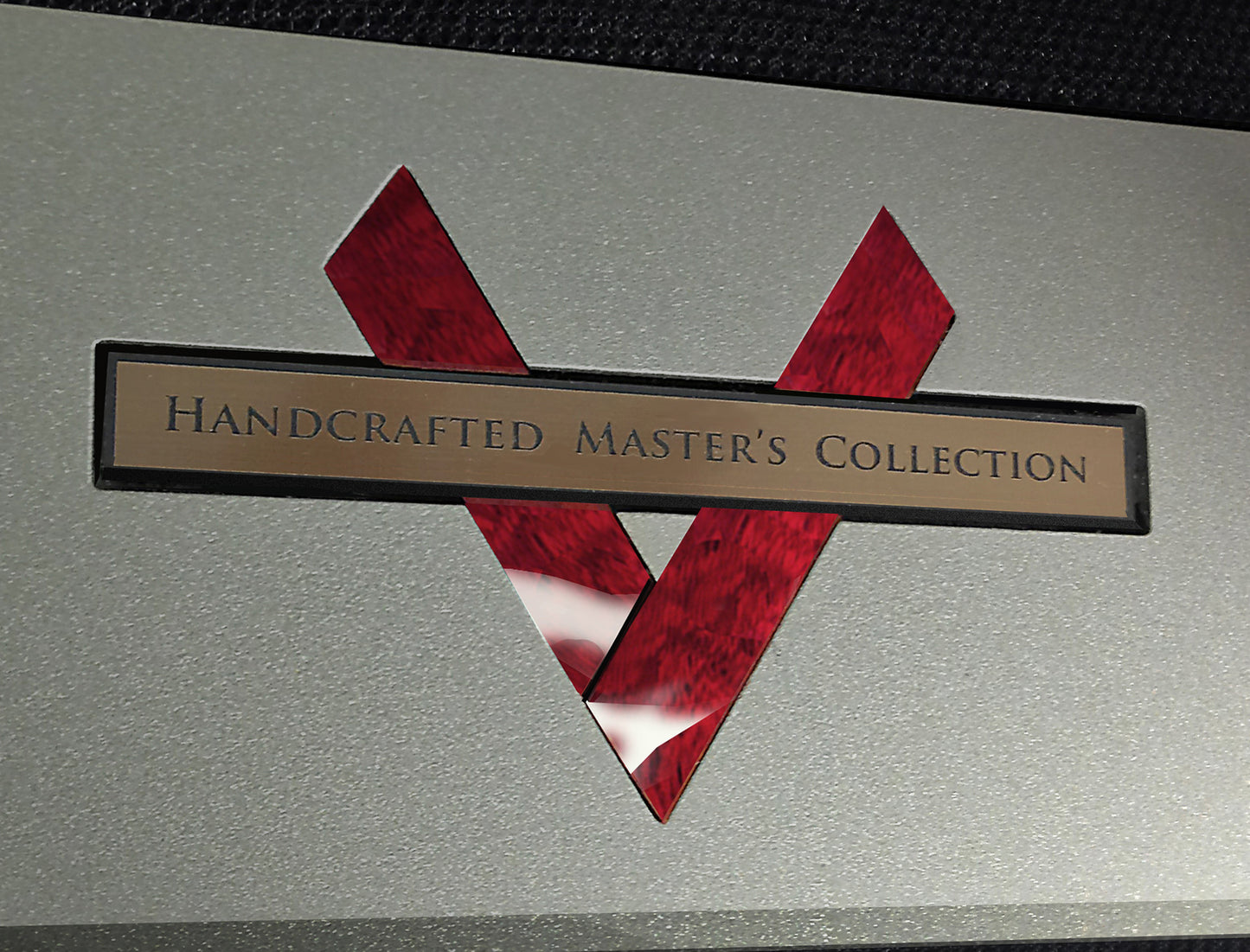

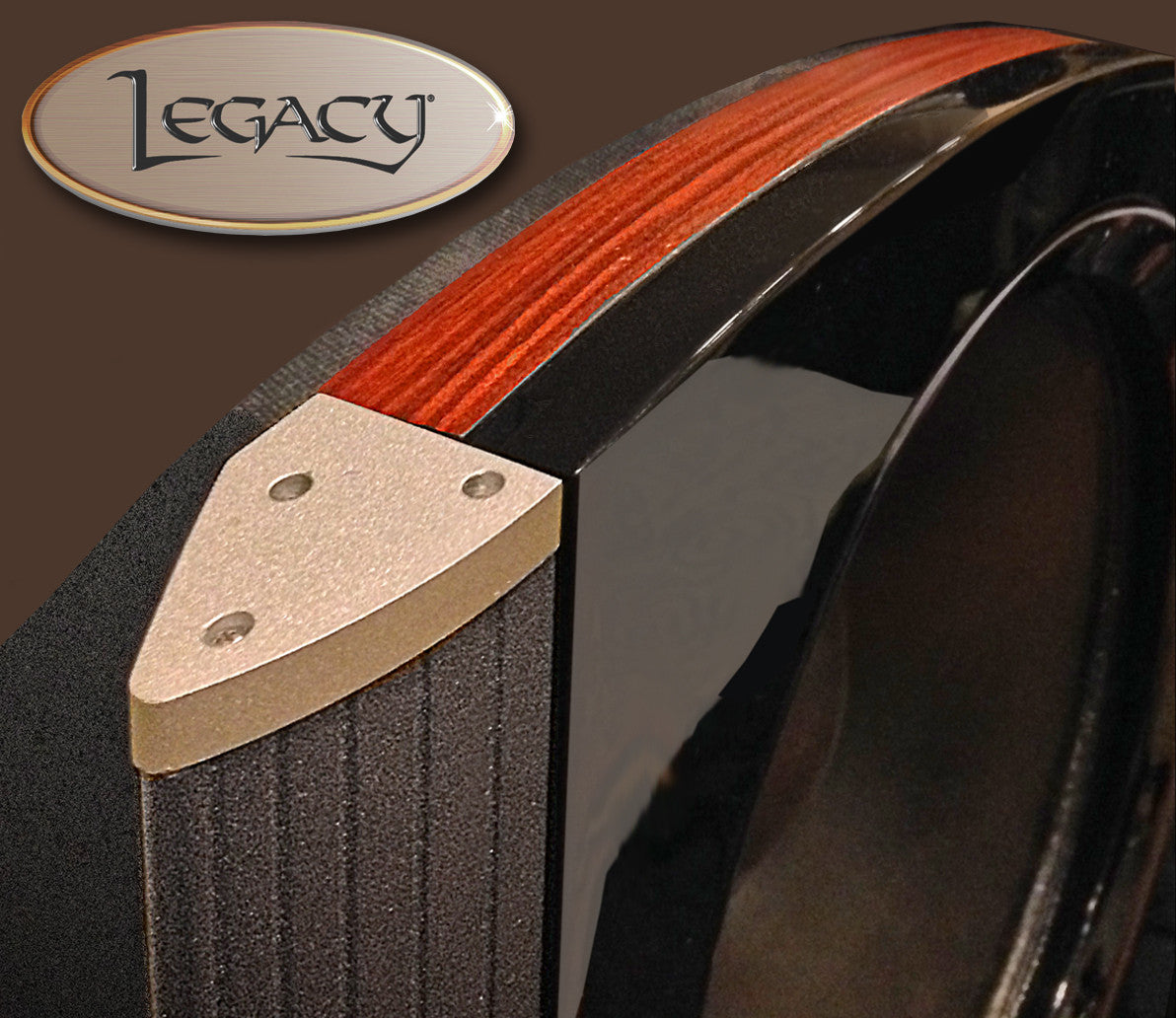

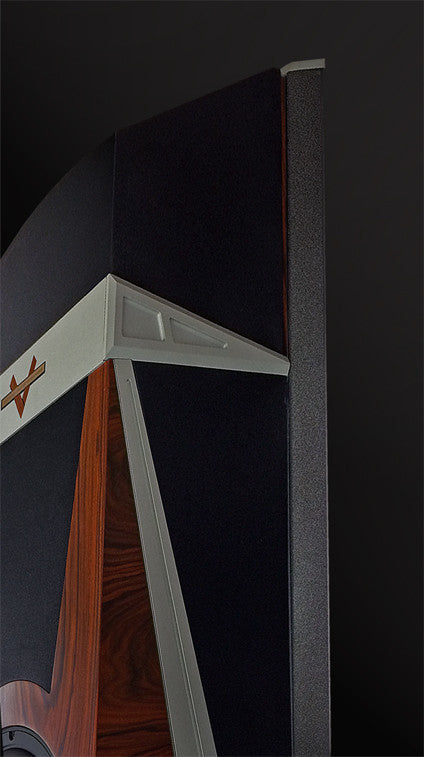

The V system’s ultra high end performance capabilities are only matched by its design. The intricately crafted cabinet features optional high gloss, real wood veneer and aluminum extrusions. The elegant design is highlighted by a gentle illumination (with on/off switch) from within the center of each tower- complimenting the groundbreaking performance technology within the V speaker system. The latest speaker in the Handcrafted Master's Series, the Legacy V ushers in the new benchmark in speaker systems.

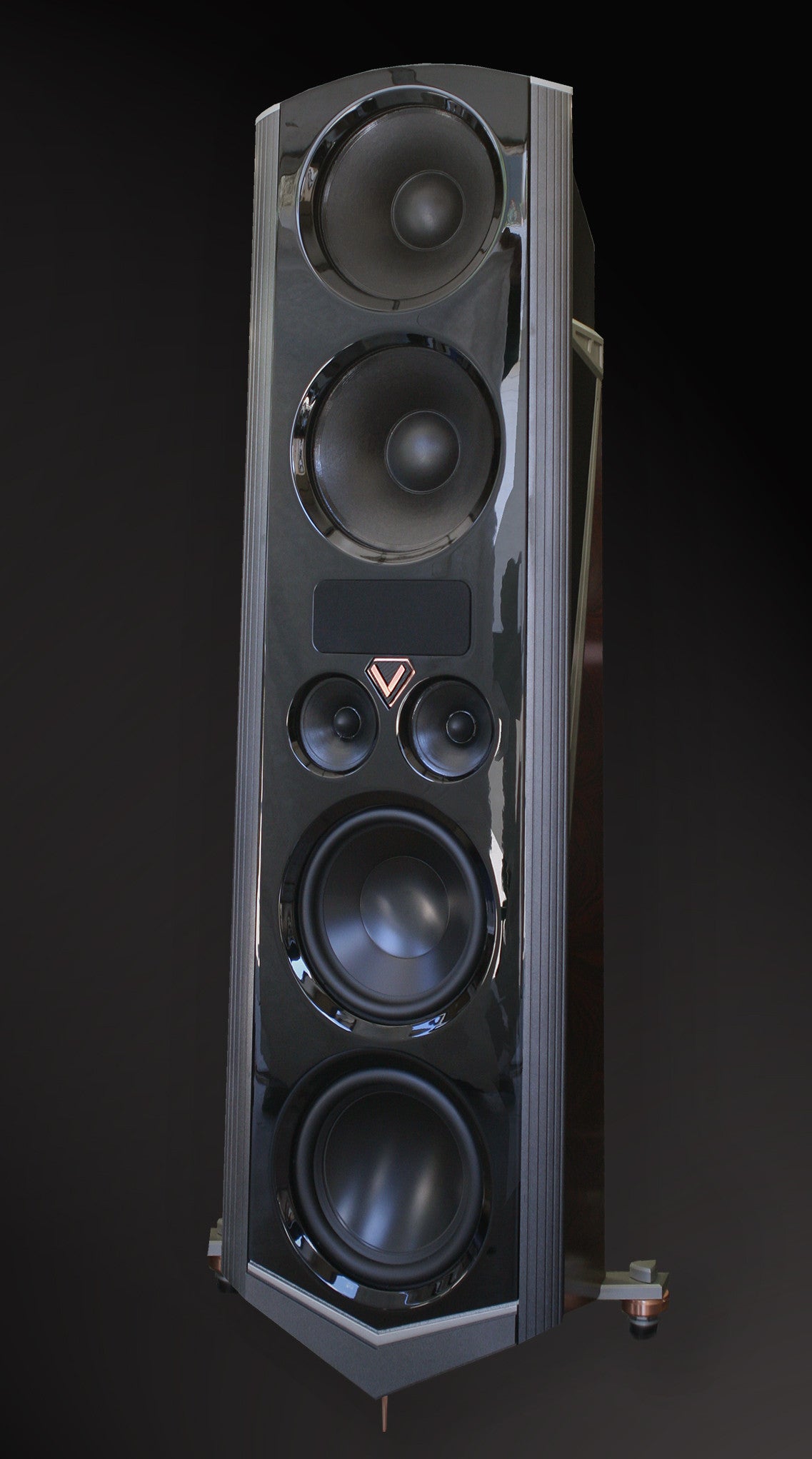

System Type: Frequency and time domain optimized four-way directivity controlled array Includes Wavelet Processor
Tweeter: Dual 4" AMT Ribbons configured in post convergent array
Upper Midrange: Dual 6" curvilinear with phase plug configured in dipolar array
Midrange/Midbass: Dual 14" Carbon/pulp, neodymium motor, cast frame, dipolar pattern
Bass: 12" Aluminum diaphragm, Aura neodymium motor, sealed sub-enclosure
Subwoofer: 12" Aluminum very low frequency radiator driving three 10" mass loaded pneumatic radiators
Low Frequency Alignment: Compound B6, B2 handing up to dipole
Freq. Response (Hz, +/-2dB): 16Hz -30kHz
Impedance: 4 ohm upper range
Sensitivity: 98 dB @2.83 Volts/1m in room
Recommended Amplification: Sub and bass sections are powered with 1500 watts of internal power, two external channels of 30 watts or greater required
Crossover: 80 Hz, 400 Hz, 3kHz
Binding Posts: 2 pair of external binding posts, 2 XLR balanced inputs
Cabinet Dimensions: HxWxD (inches):: 72 x 18.75 x 19
Available Finishes:
