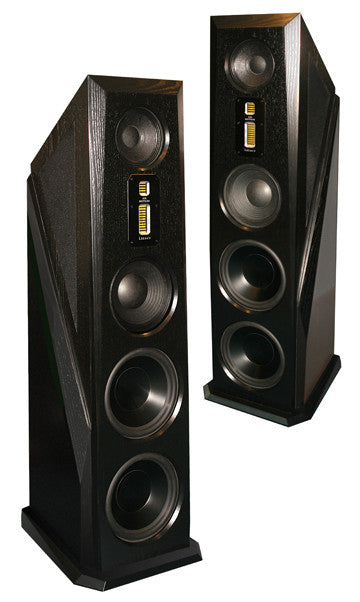

Instant Ship: Legacy Aeris XD Pair

The most popular Legacy finishes are available for immediate shipping!

Did you know? We are also the worldwide DSP specialist for Legacy Audio. In addition to a world class speaker, you are receiving world class tuning in your room and support to optimize your speakers. Maximize your Legacy experience and read about our extensive knowledge with the Aeris XD speaker.



AERIS XD from Legacy Audio is a speaker system whose striking looks are matched only by its performance capabilities. The system is the first to use the Legacy Dual Air Motion Tweeter (an advanced AMT design) with high power handling and high efficiency, and a titanium encrusted 8” midrange with an enormous motor structure imported from Italy. The bottom end is highlighted by a 10” midbass and dual 12” subwoofers with a linear volume displacement of nearly 200 cubic inches.

The bass section is powered by 1,500 watts of included ICEpower® amplification and offers exceptional extension to 16Hz. The included 24-bit DSP room correction features balanced analog inputs and outputs and USB input for optimizing performance. The upper portion of the speaker cabinet is open air dipole for fast decay of mid-bass frequencies and airy spacious highs.

The elegant design employs a 2.25” thick baffle with 2” side walls. LED Crossover Illumination within the upper portion of the cabinet reveals the intricately wired crossover design. Meticulous craftsmanship displays options include a faux leather laminated baffle with copper finish, sapele pommele veneer sides and back, carbon fiber laminated base with a facetted front and sculpted sides.

Chief Designer, Bill Dudleston, describes the development of the new AERIS XD loudspeaker: “…it gave me the opportunity to tool a new AMT folded ribbon tweeter to integrate with the smoothest, high efficiency 8” midrange built to date. I have yet to find a driver to challenge it. This silky 8” mid has a range of 7 octaves with nary a wrinkle in the response, yet a sensitivity of 98 dB. My initiative of providing a 4” AMT that could compliment these capabilities was met with the challenge of accordion-folding 16 square inches of Kapton into the 4” long, 1” wide chamber. Neodymium again was employed to provide the flux density required. But the solution was made even more elegant by mounting the new 4” ribbon on the same faceplate as its complementary 1” AMT ribbon super-tweeter. The results were more uniform dispersion and tremendous attack. Treble now had weight instead of tizz. A natural fullness in the treble is exhibited, reminding us why we love high-end audio so much.”

Details & Specifications

System Type:	6 driver, 4.5 way
Tweeter:	Dual Air Motion Tweeter System- 1" AMT super tweeter & 4" AMT tweeter
Midrange:	(1) 8" titanium encrusted, accordion edge with 6 lb magnetic structure
Midwoofer:	(1) 10" accordion edge with 10 lb magnetic structure
Subwoofer:	(2) 12" ultra-linear bass drivers with 15 lb motor
Passive Radiator	10" Mass loaded pneumatic
Low Frequency Alignment:	Hybrid Cardioid, dual rear ported
Inputs:	1 Pair binding posts for Upper range, 1 XLR balanced for Bass
Internal Amplification:	Dual 750w ICEpower amplifiers per side (1,500w per side)
Recommended Amplification:	1 External channel of 15-500w required. Bass section is driven with 1,500w of internal power
Freq. Response (Hz, +/-2dB):	18-30k, includes 24 bit processor
Impedance:	4 Ohm/ 10k amp Input
Sensitivity:	(Room, dB@ 2.83V/1m) 95.4 dB
Upper Cabinet Dimensions HxWxD (inches):	58" x 14.5" x 16"
Base Dimensions HxWxD (inches):	1" x 19" x 17.5"
Recommended Amplification:	60-500 watts
Crossover Points (Hz):	80, 2.8k, 8k
Cabinet Dimensions HxWxD (inches):	Upper Cabinet: 58 x 14.5 x 16 Base: 1 x 19 x 17.5
Weight:	182 lbs each
Available Finishes:
