CODA Technologies

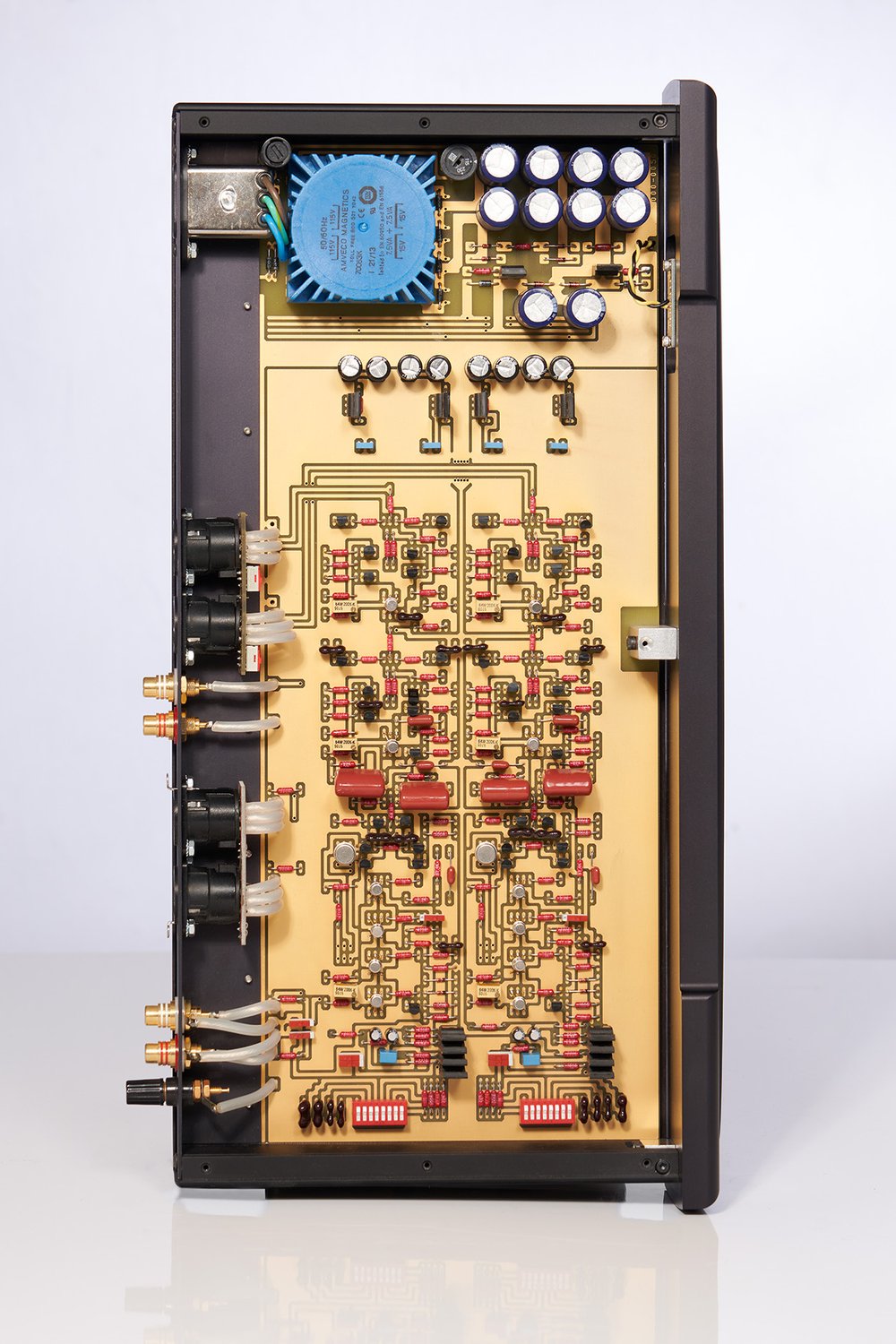

Coda 06x FET Phono Preamplifier
Regular price
$6,000.00 USD
Regular price
Sale price
$6,000.00 USD
Unit price
per
Couldn't load pickup availability
-
Circuit Specifications
-
Frequency Response: +/- .2dB of RIAA with subsonic roll off @ 14Hz
-
Distortion: < .01% from 20Hz to 20kHz @ 3V peak into 600 or higher shunted by 100pf or less
-
Gain: unbalanced output - 37dB @ 1kHz balanced output - 46dB @ 1kHz
-
Maximum Output: 12V peak
-
Noise: >87dB referenced to 1V output
-
Input Capacitance: 100pF to 1000pF
-
Input Impedance: 22Ω to 47kΩ
-
Output Impedance: 75Ω non-reactive unbalanced 150Ω non-reactive balanced
-
Crosstalk: 70dB @ 20kHz
-
Power Supply
-
Independently regulated with shielded toroidal transformer and 25,000uF of capacitance
-
Dimensions
-
Height: 2.5” Faceplate, 2.85” Overall
-
Width: 18.0” Faceplate, 17.0” Chassis Depth: 9.75” Overall
-
Weight: 14 lbs. Shipping
