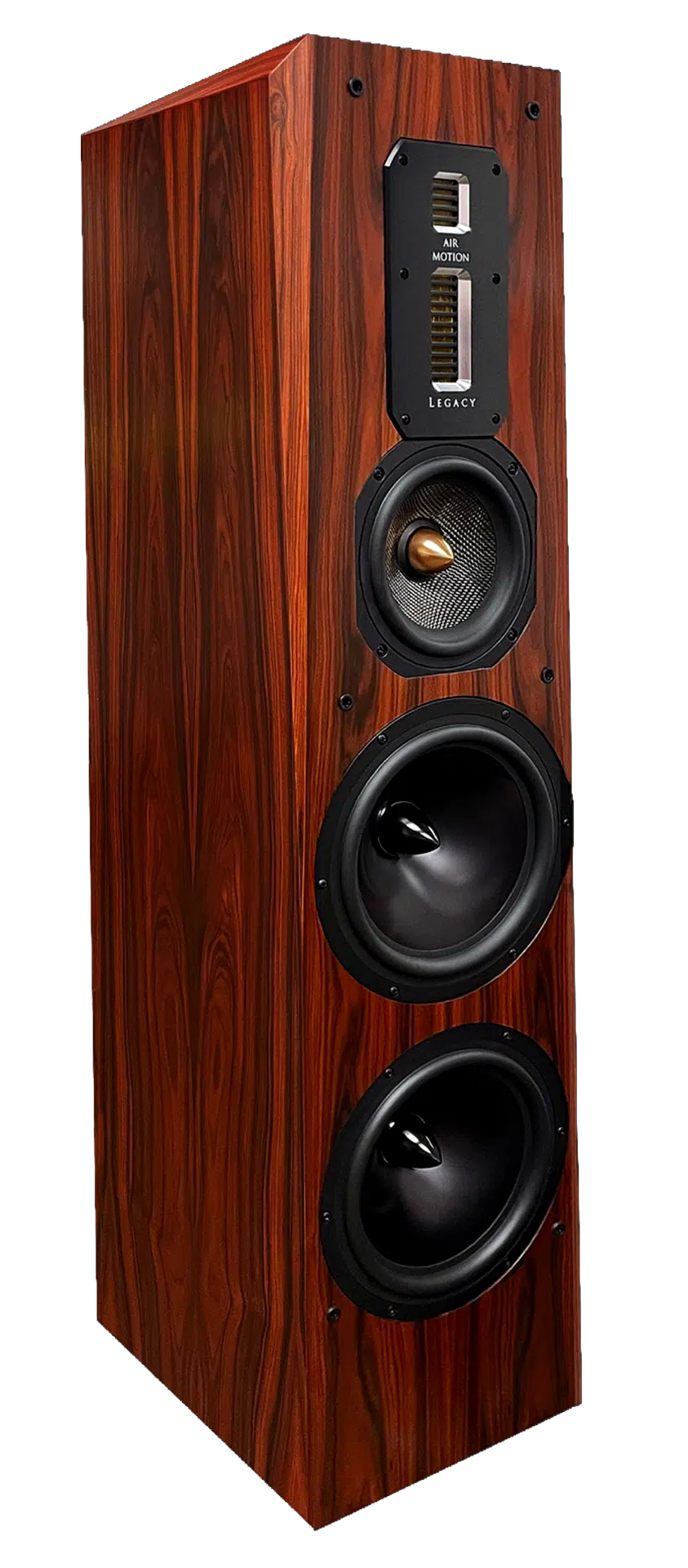

Legacy Signature XD Pair

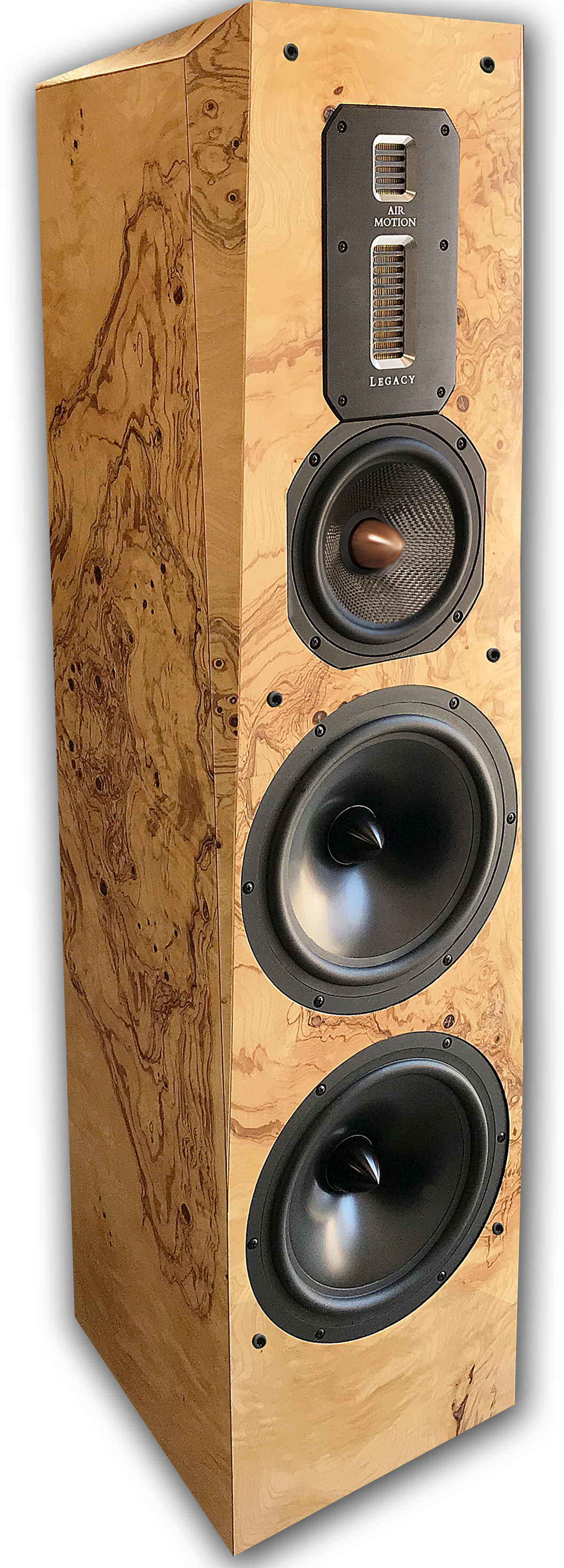

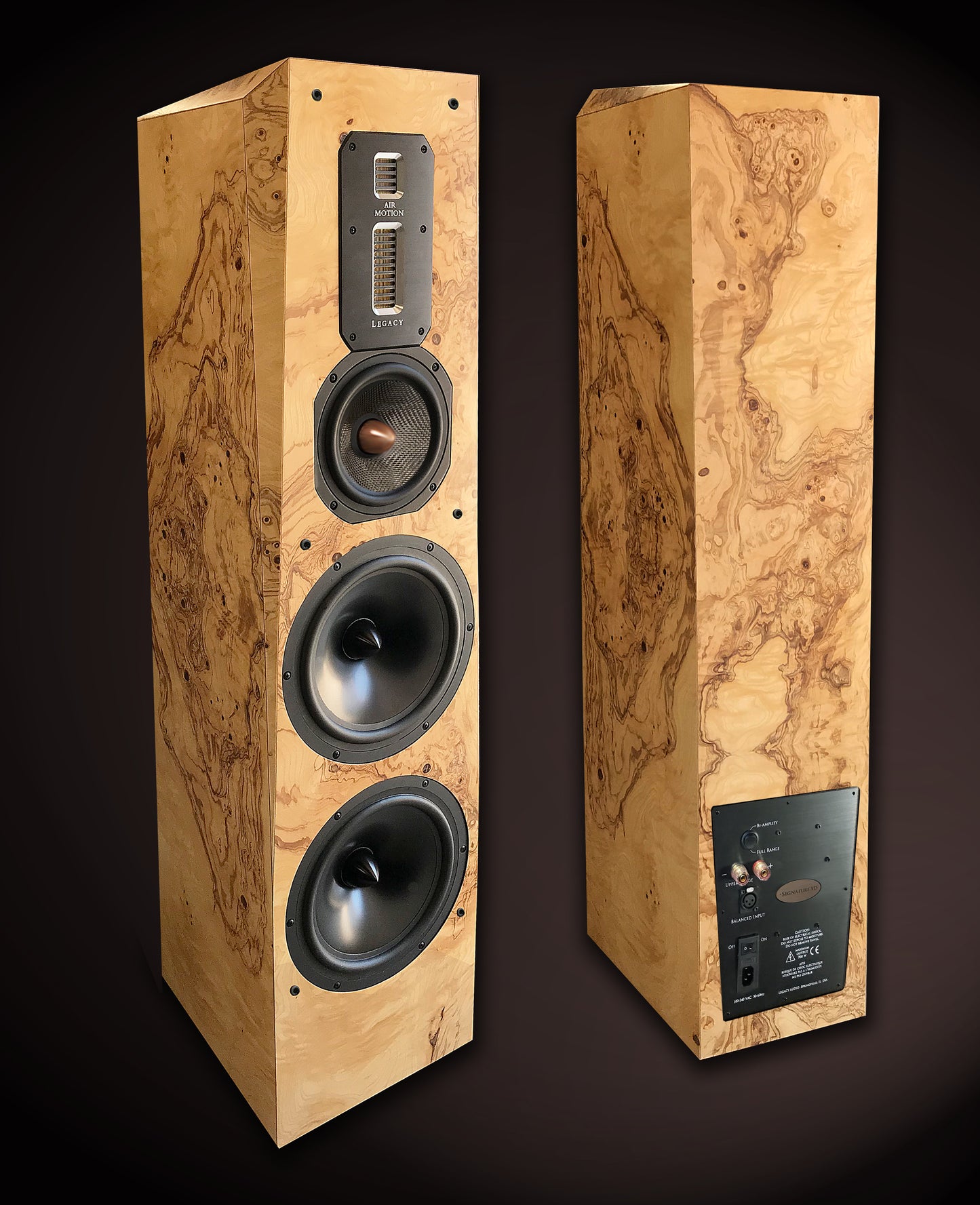

The newly released Legacy Signature XD brings the highest level of performance to an elegant slim five-driver four-way tower configuration. Though occupying little more than one square foot of floor space, the internally powered 48” Signature XD delivers tremendous clarity and impact with 650 watts of refined ICEpower® amplification.

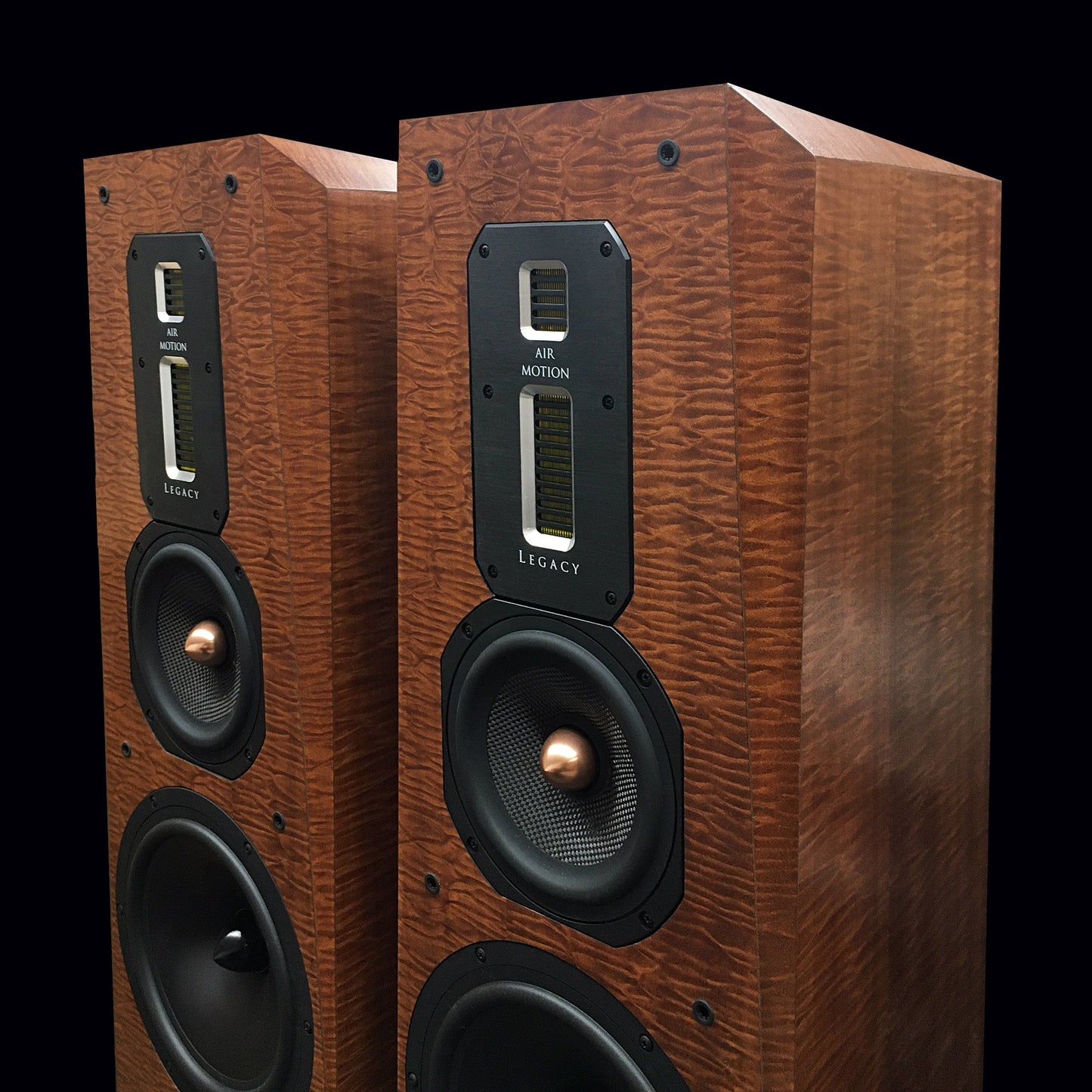

The mastering grade speaker system articulates the treble region with Legacy’s Dual AMT tweeter configuration. The air displacement and acceleration of the 1” and 4” pleated diaphragms is four times greater than conventional tweeters, thus providing greater air and detail. Vocals are delivered by Legacy’s recently developed 7” graphene filled carbon fiber midrange with a massive magnetic structure, computer optimized copper phase- plug and shorting ring. The dual 10” woofers employ a rigid aluminum diaphragm capable of reinforcing the lower vocal range and mid-bass, enriching baritones and larger stringed instruments as only larger speakers could previously. The powerful amplification assures bass weight and heft.

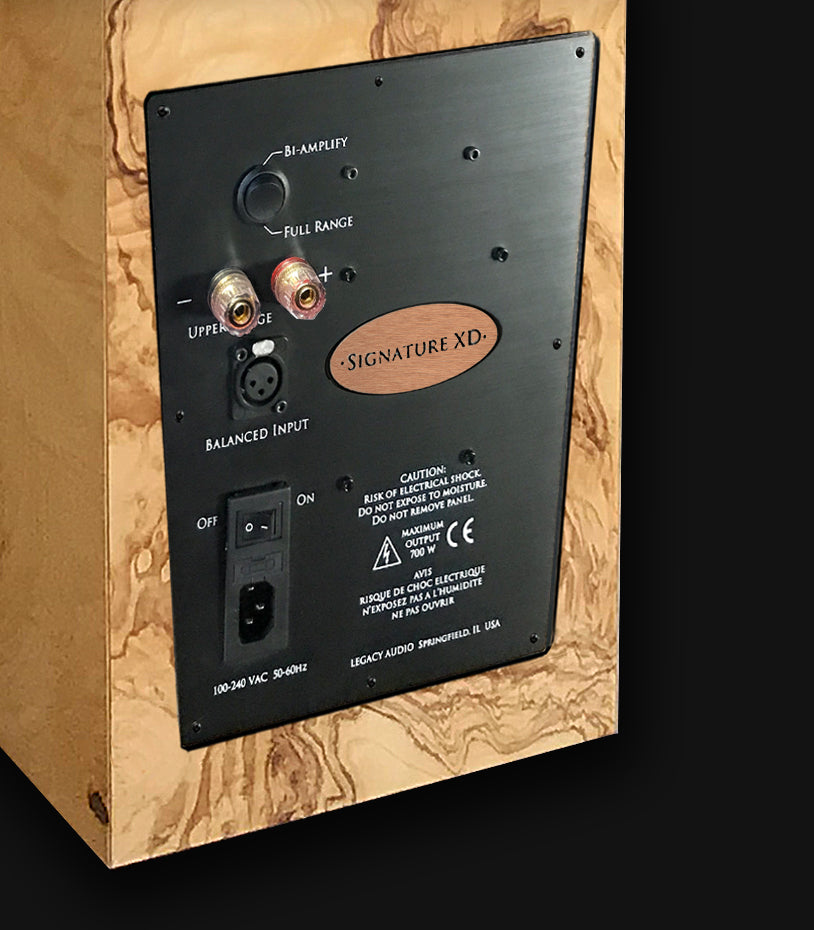

The Signature XD affords unusual flexibility in amplifier configuration and room placement. The self-powered speaker system can be driven full range with its pristine internal amplifier. The crossover network can be divided with the flick of a switch allowing the upper section to be driven with external amplification of the user’s choice. This feature accommodates the invested tube and Class A aficionados.
The Signature XD system can be placed near the front wall without concern due to its sealed configuration. The proprietary internal dynamic damping circuitry and carefully implemented crossover points greatly reduce colorations from early reflections. Even greater results can be achieved by employing the Legacy Wavelet processor which also facilitates bi-amplification.
|Application||Sealed enclosure, low sensitivity to room placement|
|System Type:||5 driver, 4 way|
|Tweeter:||Dual Air Motion Tweeter System- 1" AMT super tweeter, Kimber silver HF wire|
|Midrange:||Dual Air Motion Tweeter System- 4" AMT tweeter|
|Midwoofer:||(1) 7" Graphene-filled carbon fiber cone with cast frame|
|Subwoofer:||(2) 10" spun aluminum diaphragm, rubber surround, long throw suspension with cast frame|
|Low Frequency Alignment:||Sealed, dynamic damping|
|Freq. Response (Hz, +/-2dB):||22-30K|
|Sensitivity:||(Room, dB@ 2.83V) 92 dB|
|Preamp level Input||XLR/RCA with adapter|
|High Level||1 pair of 5-way binding posts|
|Internal Amplification||650 watts ICEpower® amplification|
|Recommended Amplification:||20 - 300 watts for upper section|
|Crossover:||180, 2.8K, 8K|
|Binding Posts:||2 Pair|
|Dimensions HxWxD (inches):||48 x 12 x 13.75|
|Weight:||110 lbs each|
