CODA Technologies

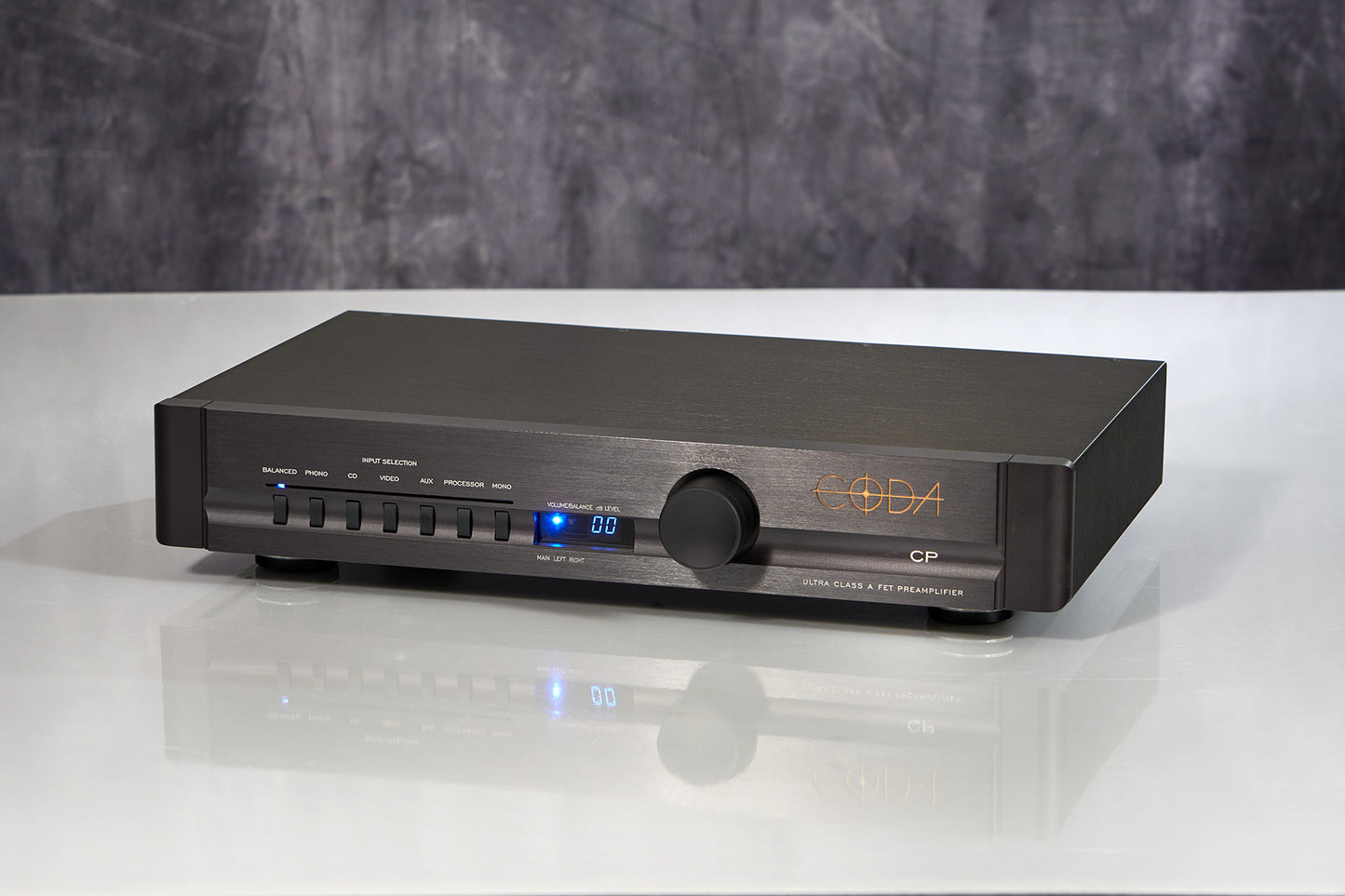

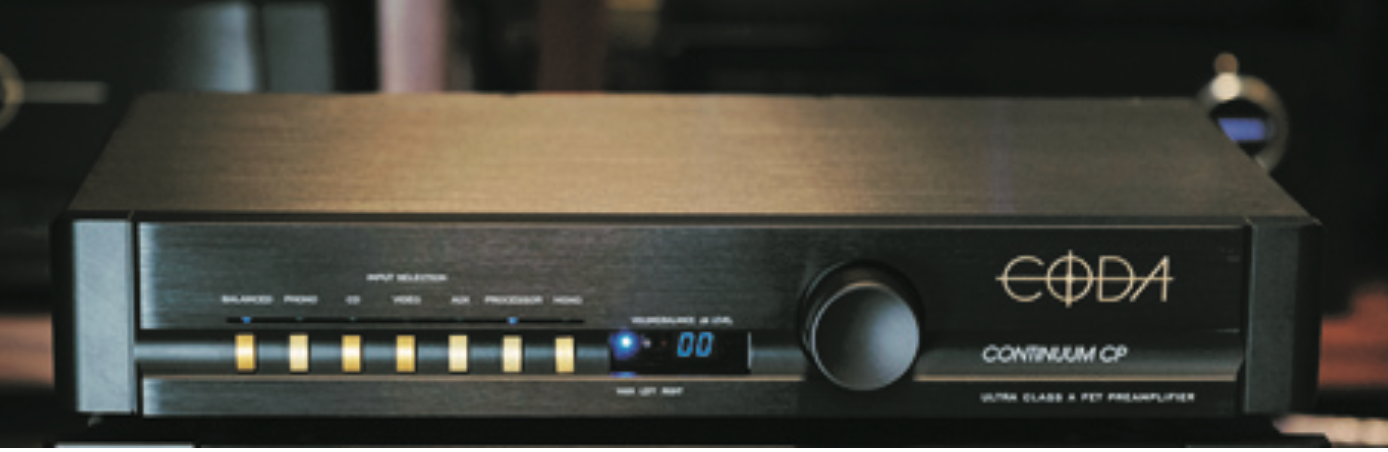

Coda CP Phono and Line Preamp: Instant Ship

Regular price $4,400.00 USD
Regular price Sale price $4,400.00 USD
Sale Please Call 818-732-1448 To Order
  • True state-of-the-art remote controlled performance in an affordable, hand-crafted chassis
  • Discrete Class A MOSFET Gain Stage for smoother, more detailed sound
  • Independent variable gain adjustment for each input
  • No overall feedback

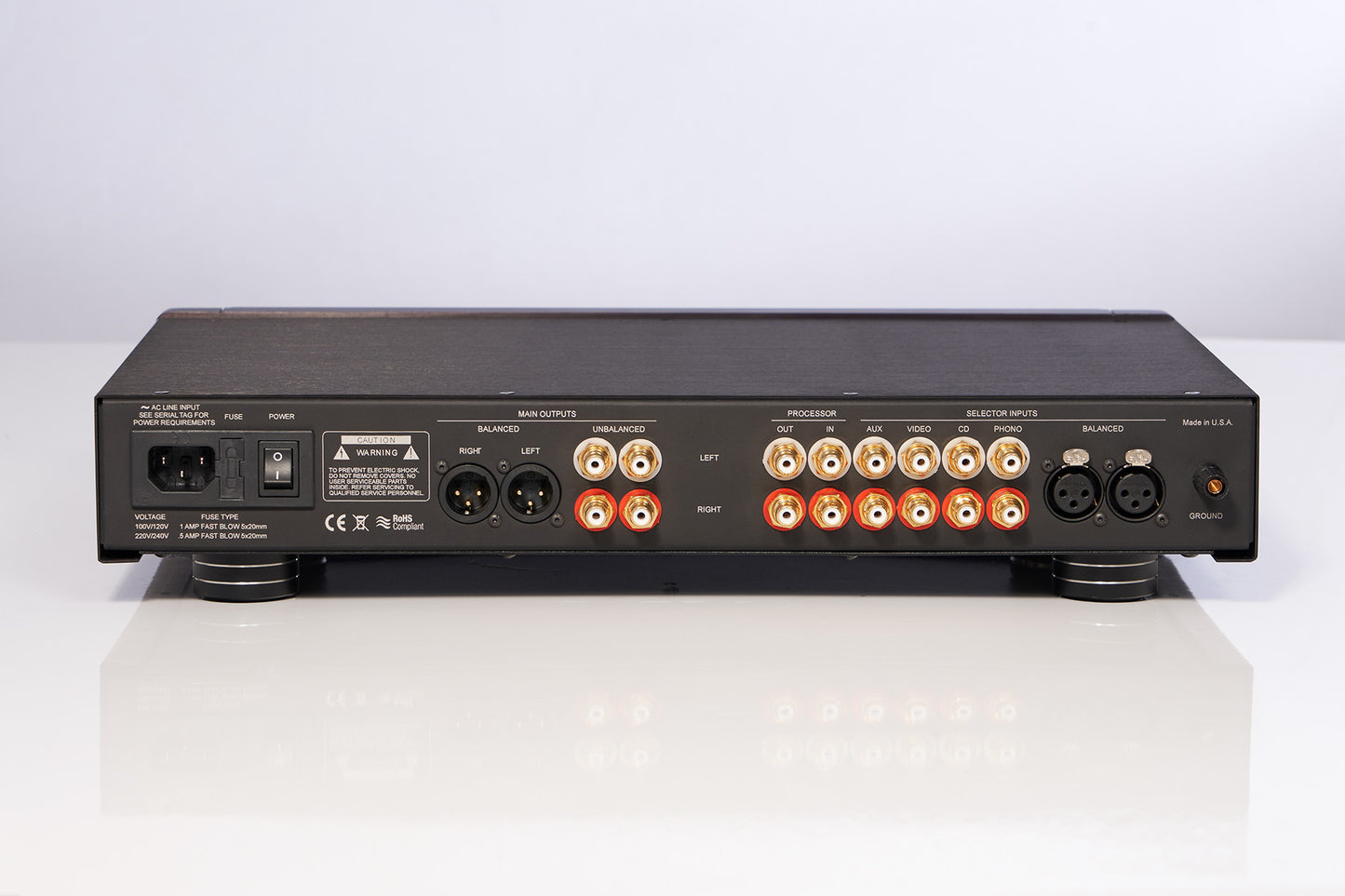

  • One balanced, one phono and three unbalanced inputs
  • Balanced and unbalanced outputs
  • Separate processor loop (unbalanced)

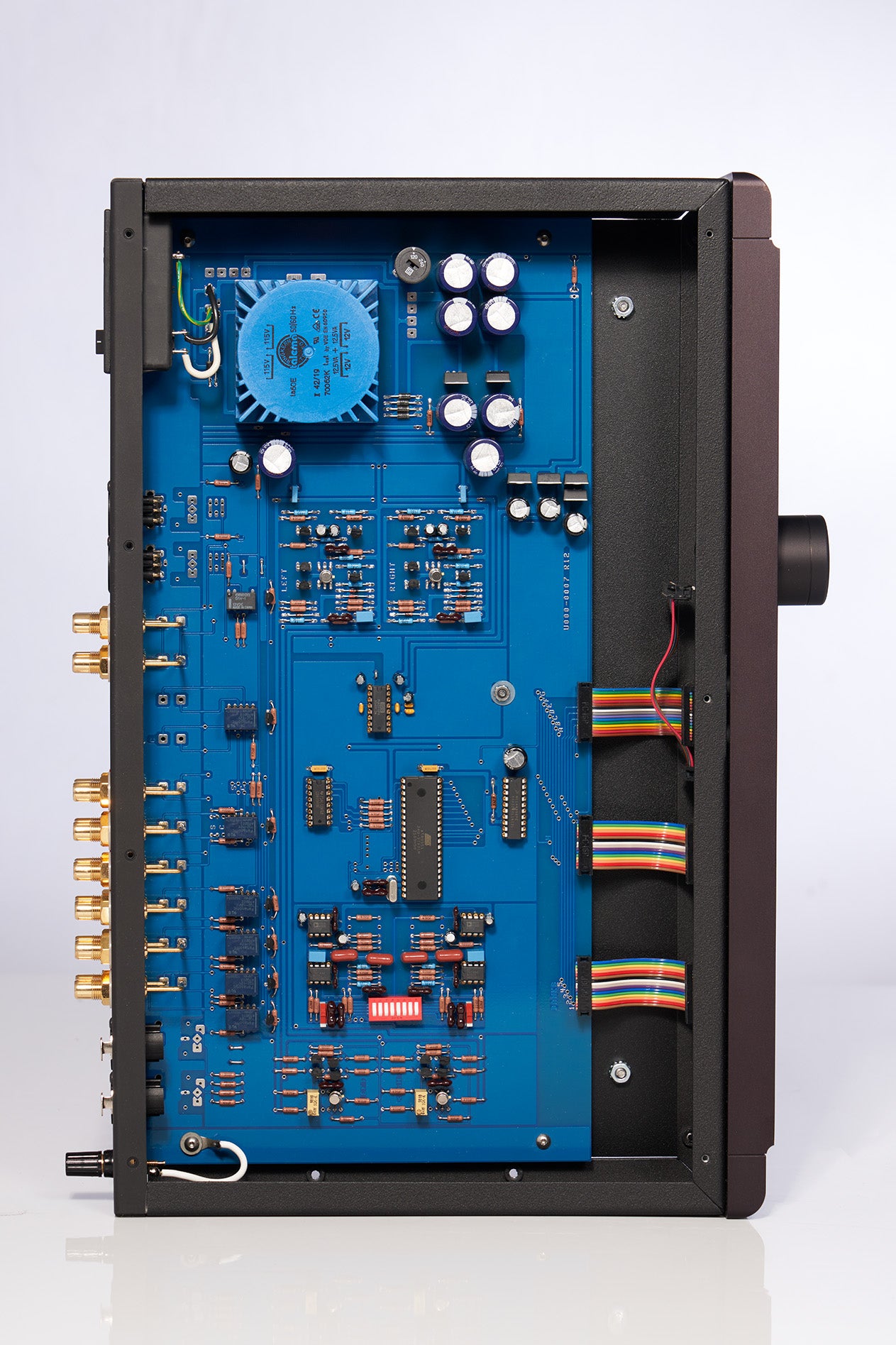

  • SMOBC (solder mask over bare copper) FR-4 glass epoxy printed circuit boards
  • Wideband, fully-regulated power supply with EMI and RFI line filtering
  • 10 year warranty / 5 year transferable
  • Designed, manufactured and assembled in the USA

Frequency Response: 5Hz to -3dB @ 200kHz

Distortion: <.02% from 10Hz to 40kHz, 6V peak into 600 Ohms or higher, shunted by 1000pF or less

Gain: 12dB, variable to 30dB

Maximum Current: 10V peak

Noise: <100dBA referenced to 1V

Input Impedance: 20kOhms

Output Impedance: 50 kOhms non-reactive unbalanced, 100kOhms non-reactive balanced

Crosstalk: 90dB @ 20kHz

Dimensions: 17” W x 12” D x 2.65” H

Weight : 15 lbs
