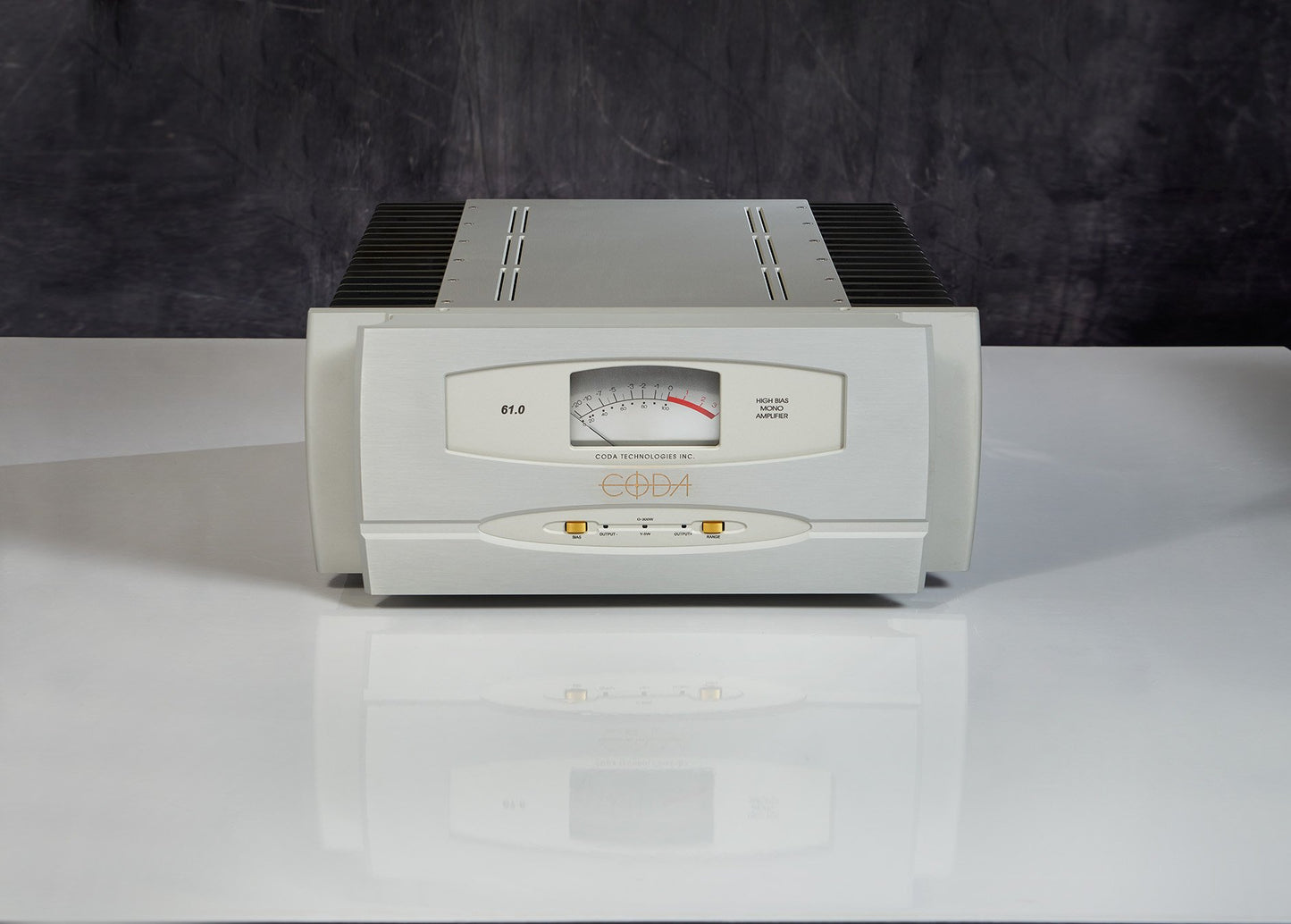

CODA No. 61 Mono Amplifier

BRIDGED MONO

Rated Power 1000 Watts class AB @ 4 Ohms, 500 Watts class AB @ 8 Ohms

Frequency Response: DC to -3dB @ 100kHz

Distortion: < .02 percent from 10Hz to 20kHz @ rated power

Gain: 32dB

Maximum Current: > 100 Amperes peak

Noise: -126dB reference to rated output

Input Impedance: N/A unbalanced/10k Ohms balanced

Output Impedance: .06 Ohms from 20Hz to 20kHz

POWER SUPPLY

Transformer Type: Multi-tap, multi-winding toroidal

Transformer Rating: 3 kVA Power Filtering: 280,000 μF

DIMENSIONS

Height: 7” Faceplate, 7.75” Overall

Width: 18” Overall

Depth: 19” Overall

Weight: 110 lbs., 115 lbs. Shipping

Power Requirement: 1.5K Watts maximum at rated power
