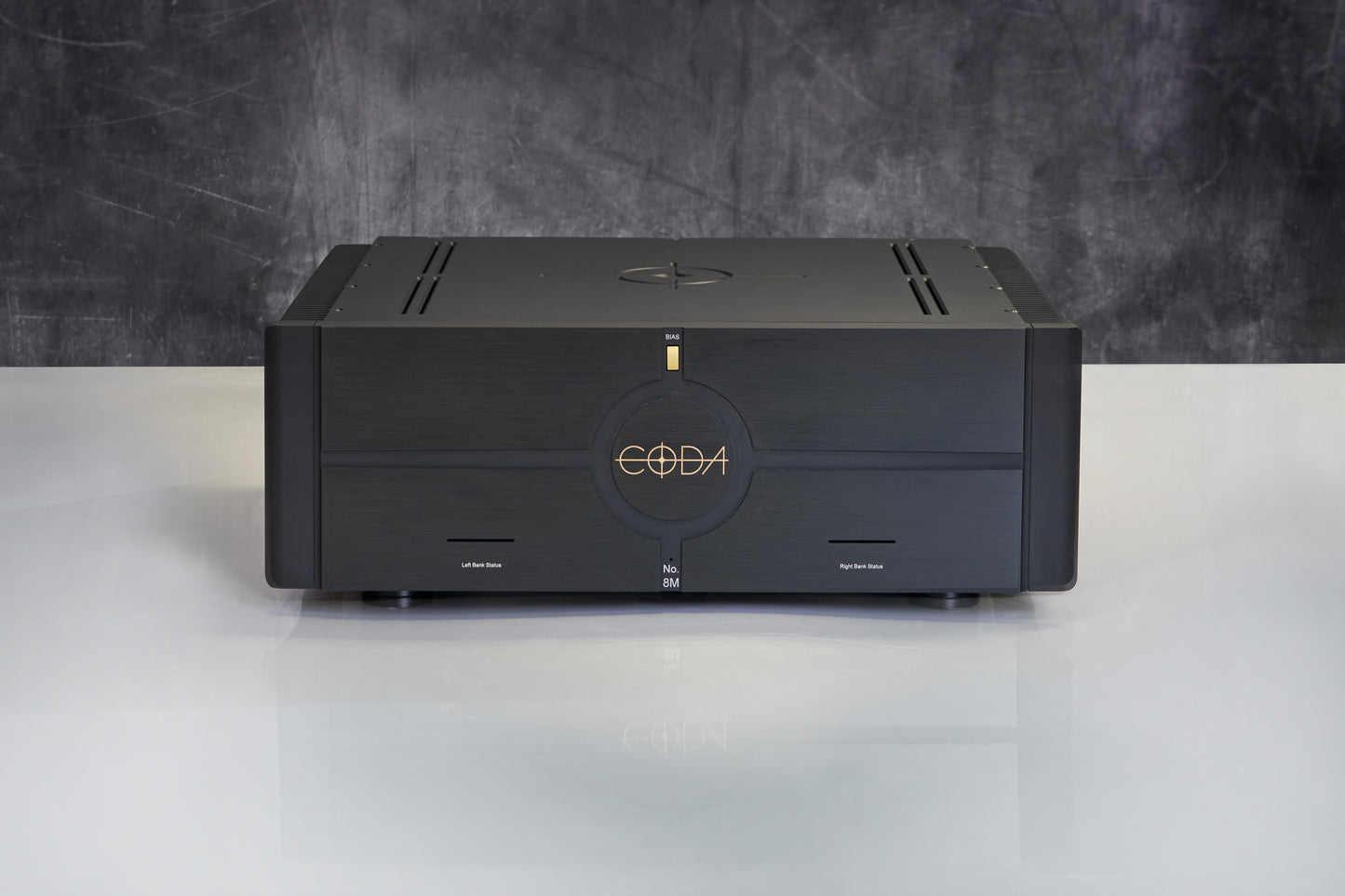

CODA No. 8M Mono Amplifier
Couldn't load pickup availability
"The $6,200 Coda No. 8 is very musical yet very detailed in ways that make me think that a fairer comparison would be my $13,5000 Pass Labs XA-60.8 monoblocks, which is a significant accolade for the Coda No. 8, as the Pass 60.8s are mean competitors costing far more money." -Read the review, here
RATED POWER
V2: 800 Watts into 8 Ohms
1,600 Watts into 4 Ohms
Class A ~8 Watts
V1: 500 Watts into 8 Ohms
1000 Watts into 4 Ohms
Class A ~16 Watts
BANDWIDTH
DC or -3dB at 5Hz through 100kHz depending on input
DISTORTION
Less than .03% from 10Hz to 20kHz at 500 Watts (V1) into 4 through 8 Ohms
GAIN
26dB
CURRENT CAPABILITY
150 Amperes peak
SLEW RATE
50 Volts/microsecond
INPUT IMPEDANCE
50k Ohms unbalanced/10k Ohms balanced
OUTPUT IMPEDANCE
.04 Ohms from 20Hz to 20kHz
NOISE
More than -110dB referenced to rated output
POWER SUPPLY

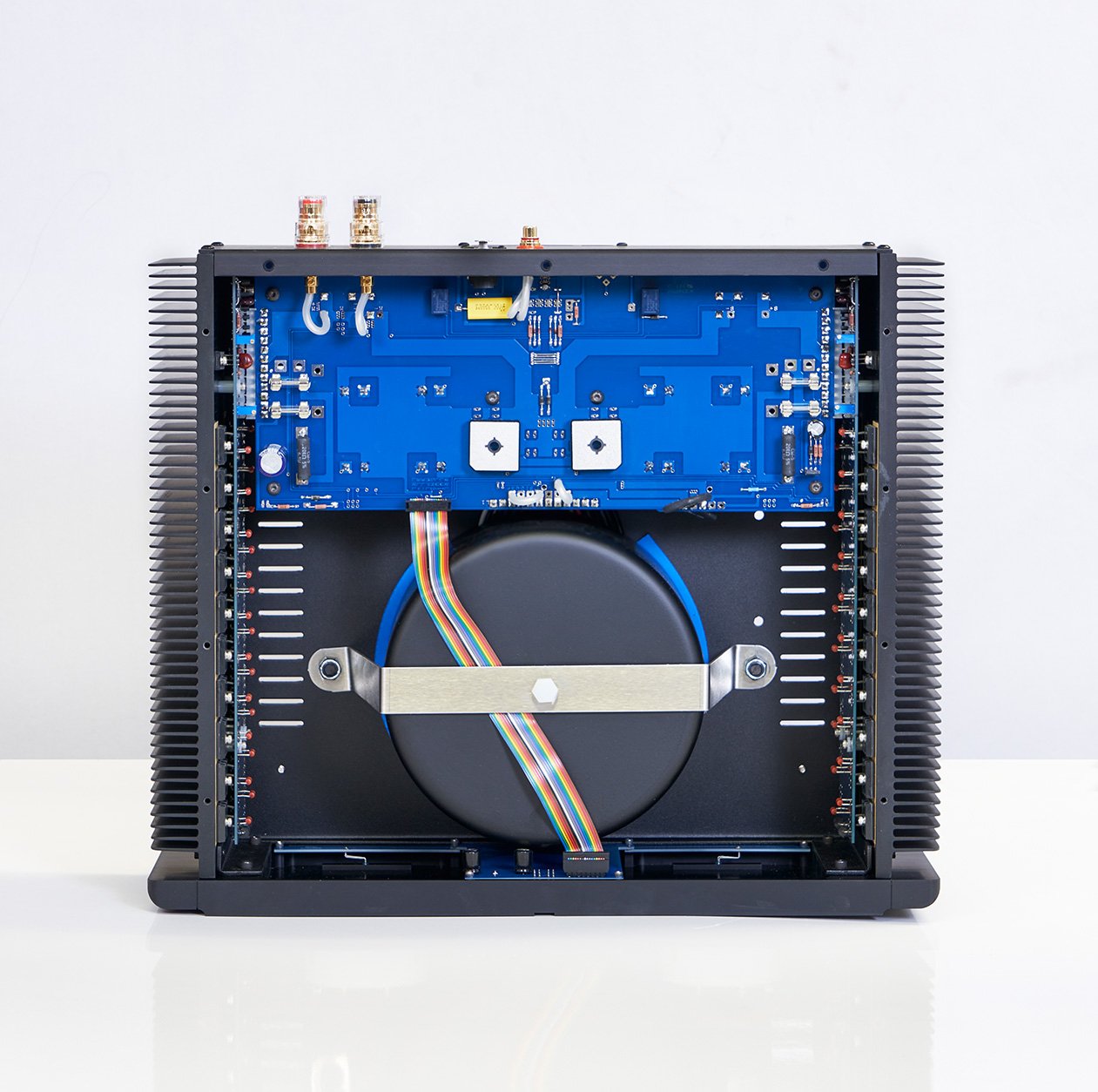

3.0kVA toroidal transformer with independent rectifiers and 80,000 uF of capacitance
DIMENSIONS
Faceplate: 17 inches wide by 5.5 inches tall
Chassis: 16.75 inches wide by 6 inches tall by 14 inches deep
WEIGHT
62 lbs
