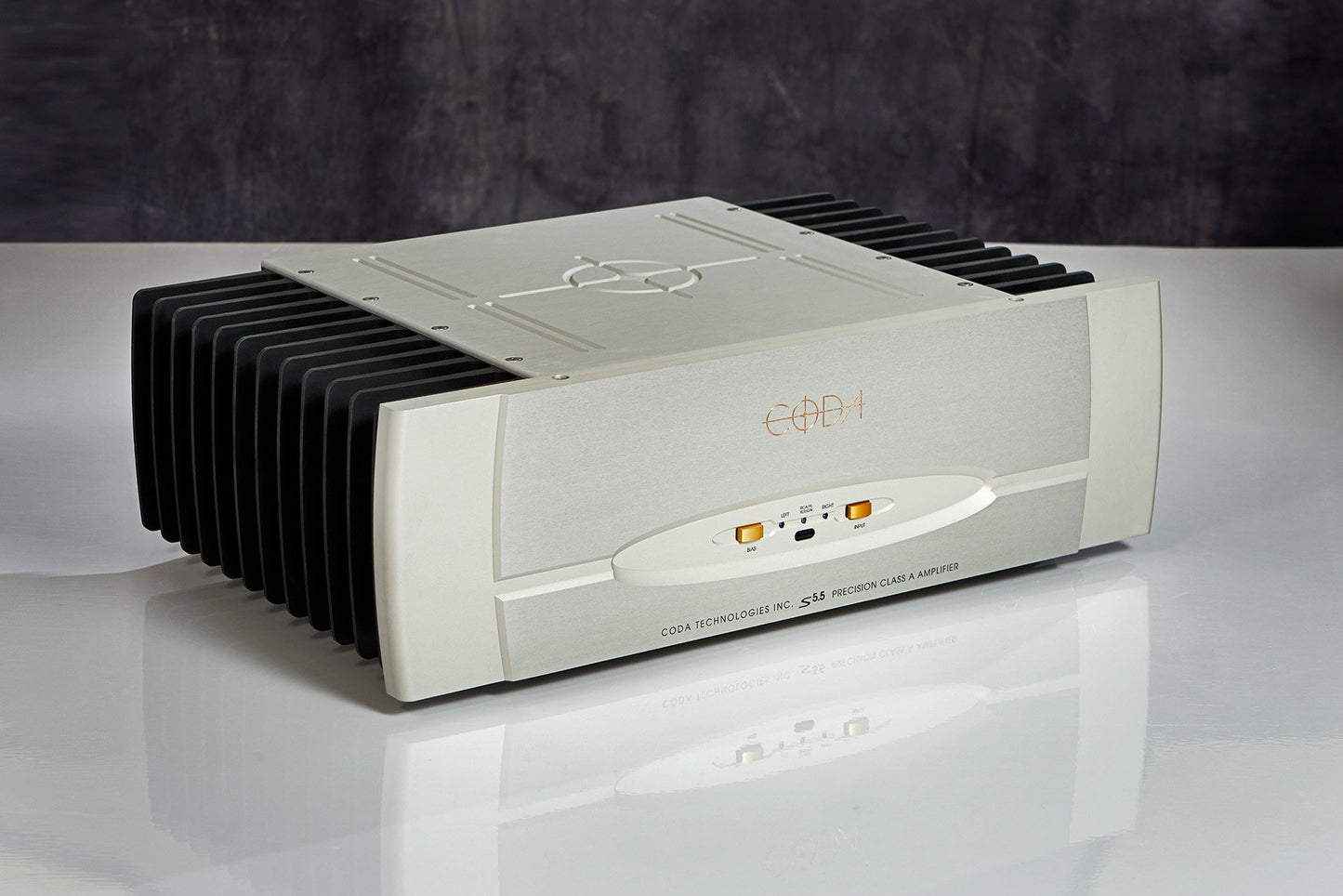

Coda S5.5 Stereo Amplifier

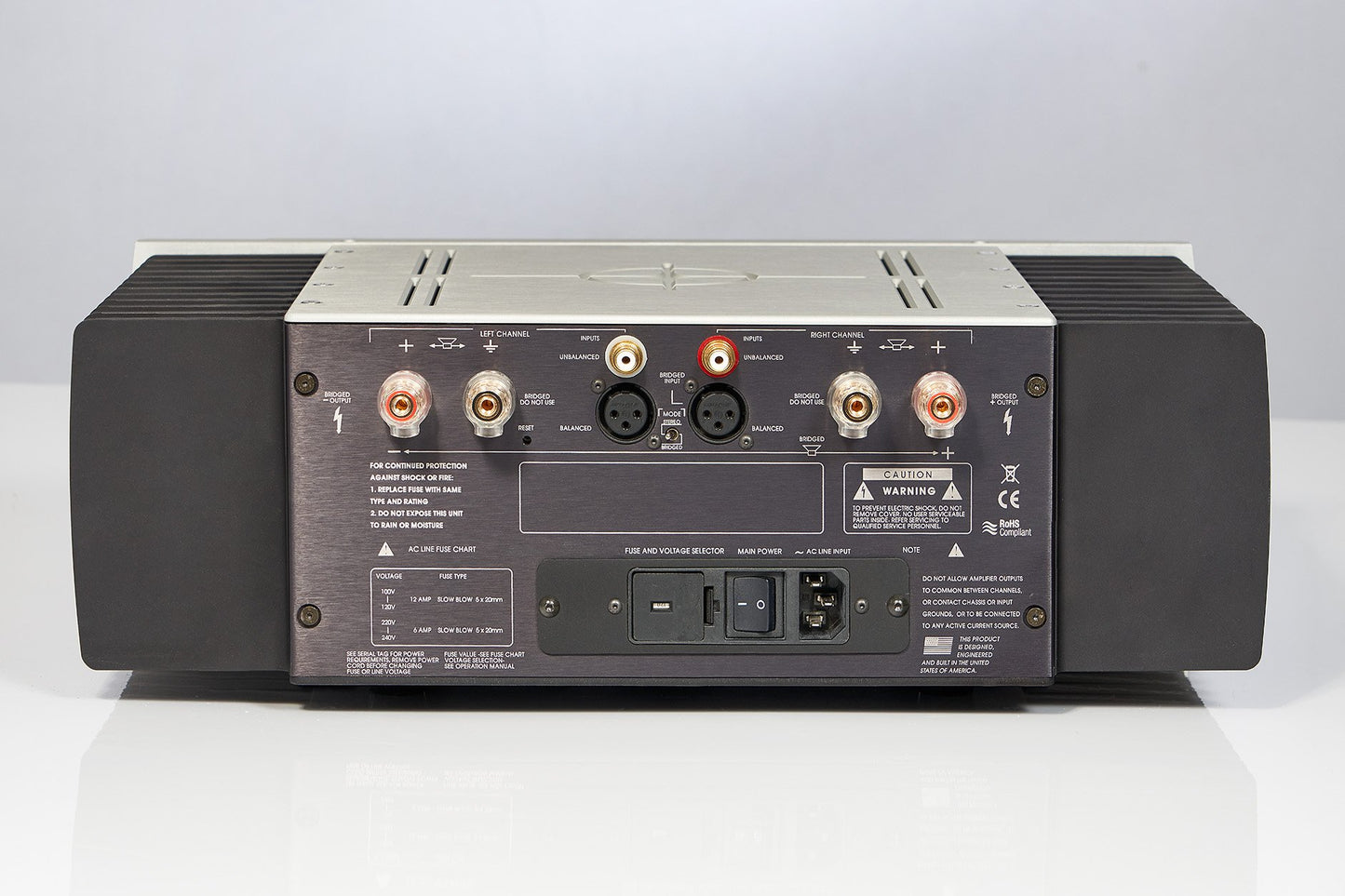

The S5.5 is a high-bandwidth, pure Class A stereo amplifier. External control allows the S5.5 to be bridged into a high-power monoblock. Internal relay switching provides distortion-free selection of balanced or unbalanced inputs. Input switching and true-standby bias toggle are controllable either from the front panel or optional remote control.

STEREO

Rated Power: 50 Watts Class A into 8 Ohms, 100 Watts per channel into 4 Ohms
200 Watts per channel into 2 Ohms

Frequency Response: -3dB @ DC to 100kHz

Distortion: < .04% from 10Hz to 20kHz @ 50W

Gain: 26dB

Maximum Current: 100 Amperes peak per channel

Noise: Less than 120dB referenced to rated output

Input Impedance: 50k Ohms unbalanced/10k Ohms balanced

Output Impedance: .04 Ohms from 20Hz to 20kHz

BRIDGED MONO

Rated Power: 200 Watts into 8 Ohms, 400 Watts mono in bridged mode into 4 Ohms

Frequency Response: -3dB @ DC to 100kHz

Distortion: < .04% from 10Hz to 20kHz @ 50W

Gain: 26dB

Maximum Current: 100 Amperes peak per channel

Noise: Less than 120dB referenced to rated output

Input Impedance: 50k Ohms unbalanced/10k Ohms balanced

Output Impedance: .04 Ohms from 20Hz to 20kHz

POWER SUPPLY

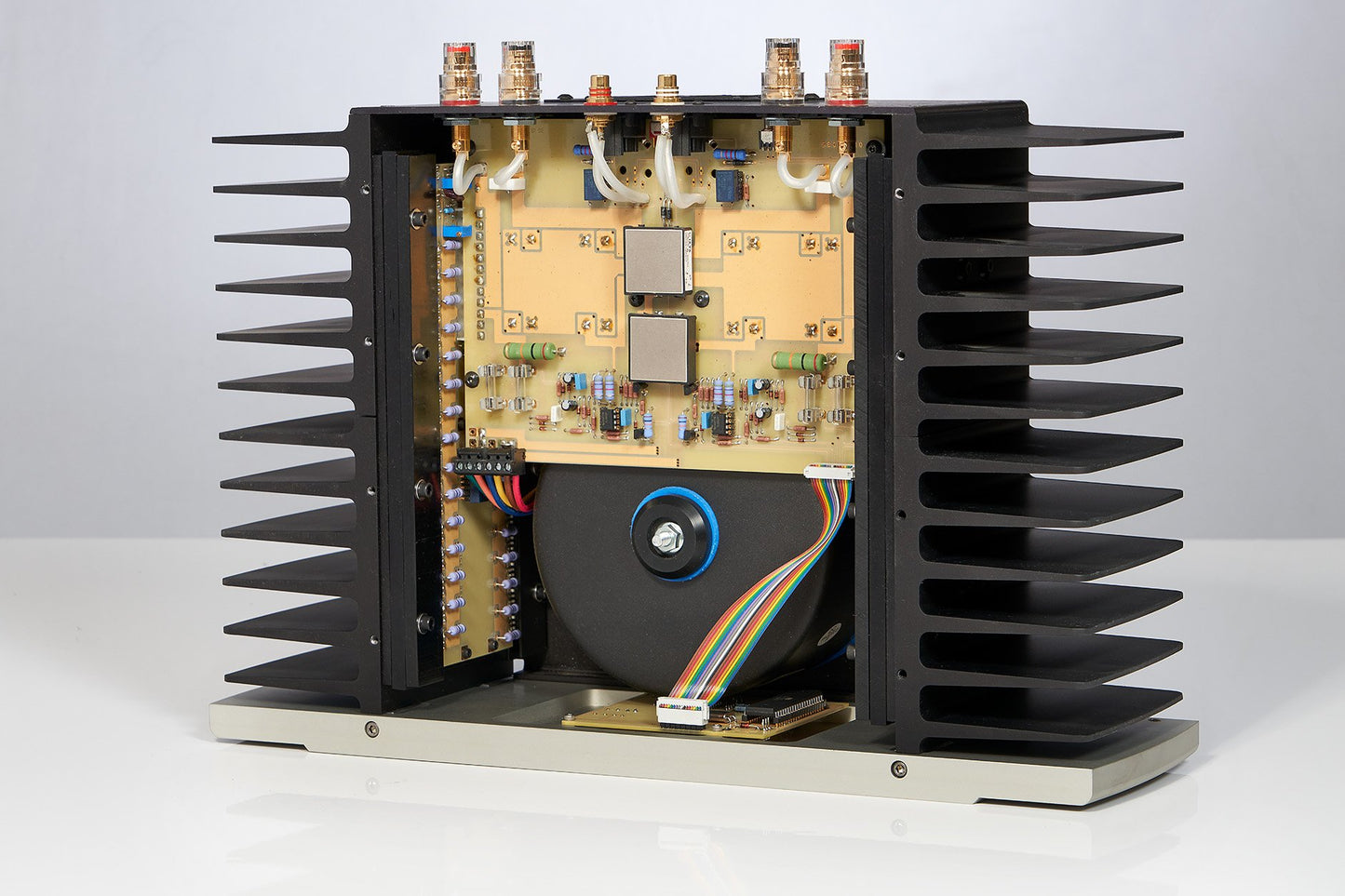

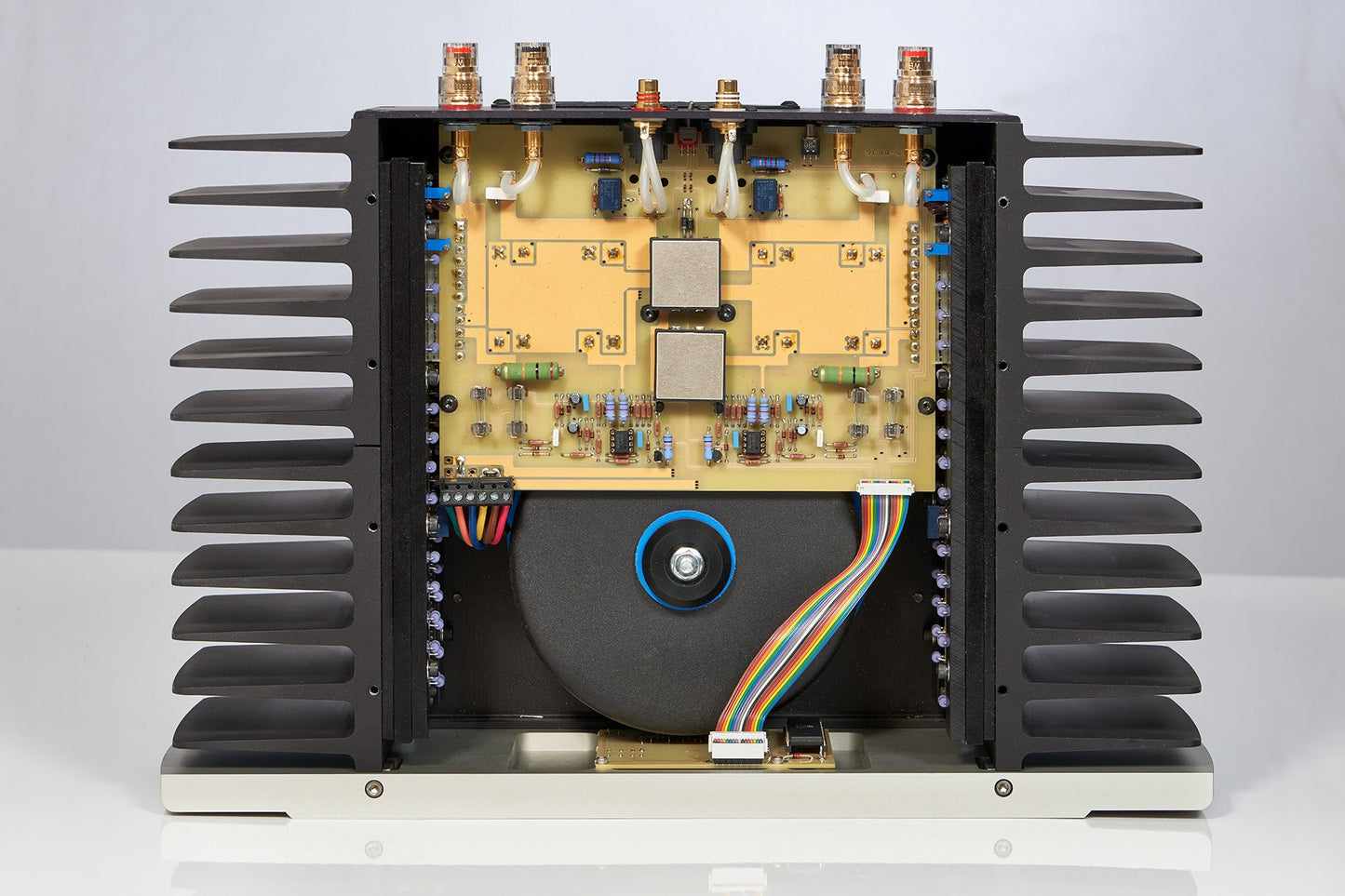

Transformer Type: Multi-tap, multi-winding toroidal

Transformer Rating: 1500 VA

Power Filtering: 80,000 microfarad

DIMENSIONS

Height: 5.75"

Width: 17.5"

Depth: 12.5”

Weight: 45 lbs

Power requirement: 450 Watts maximum at rated power
