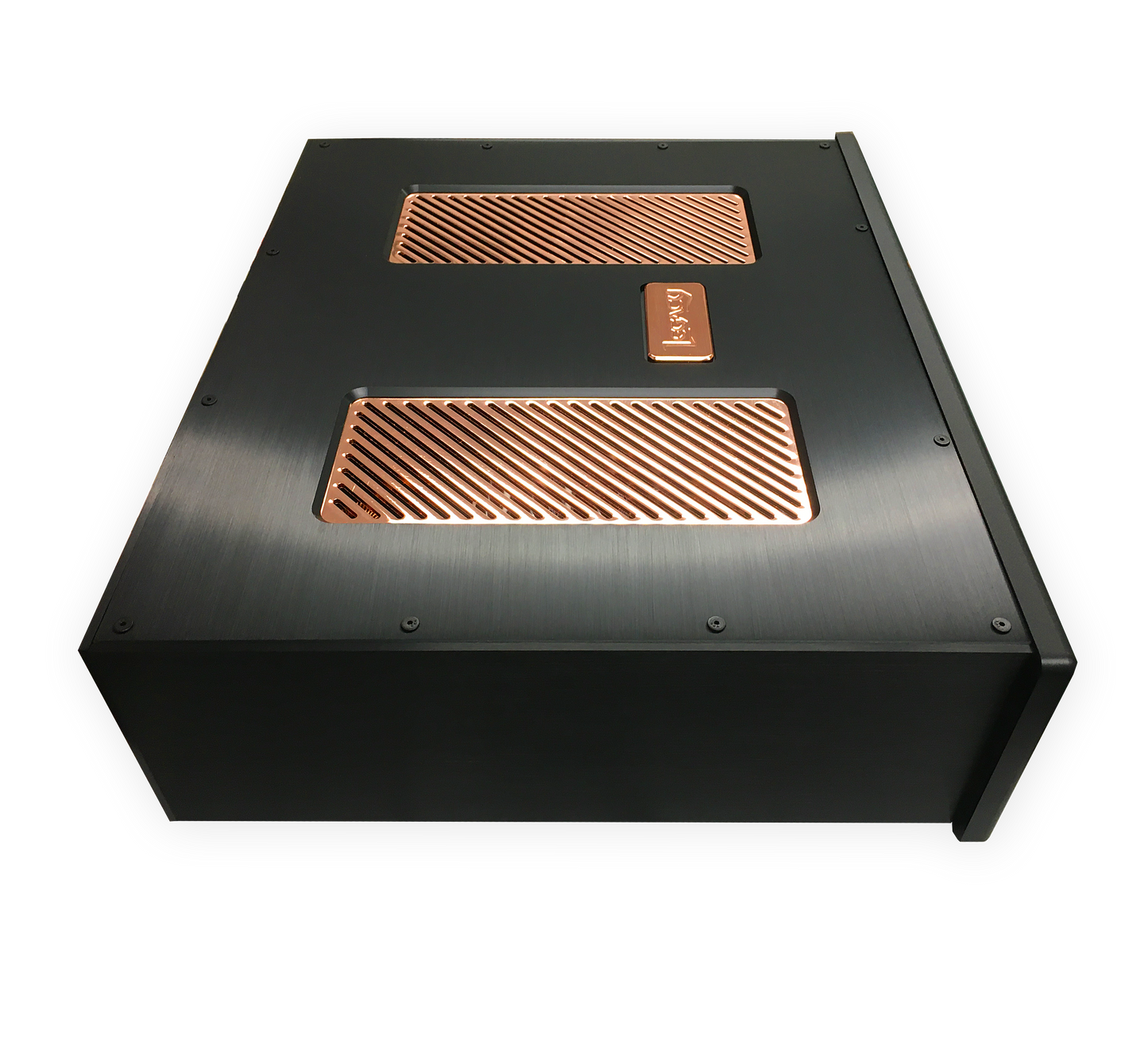

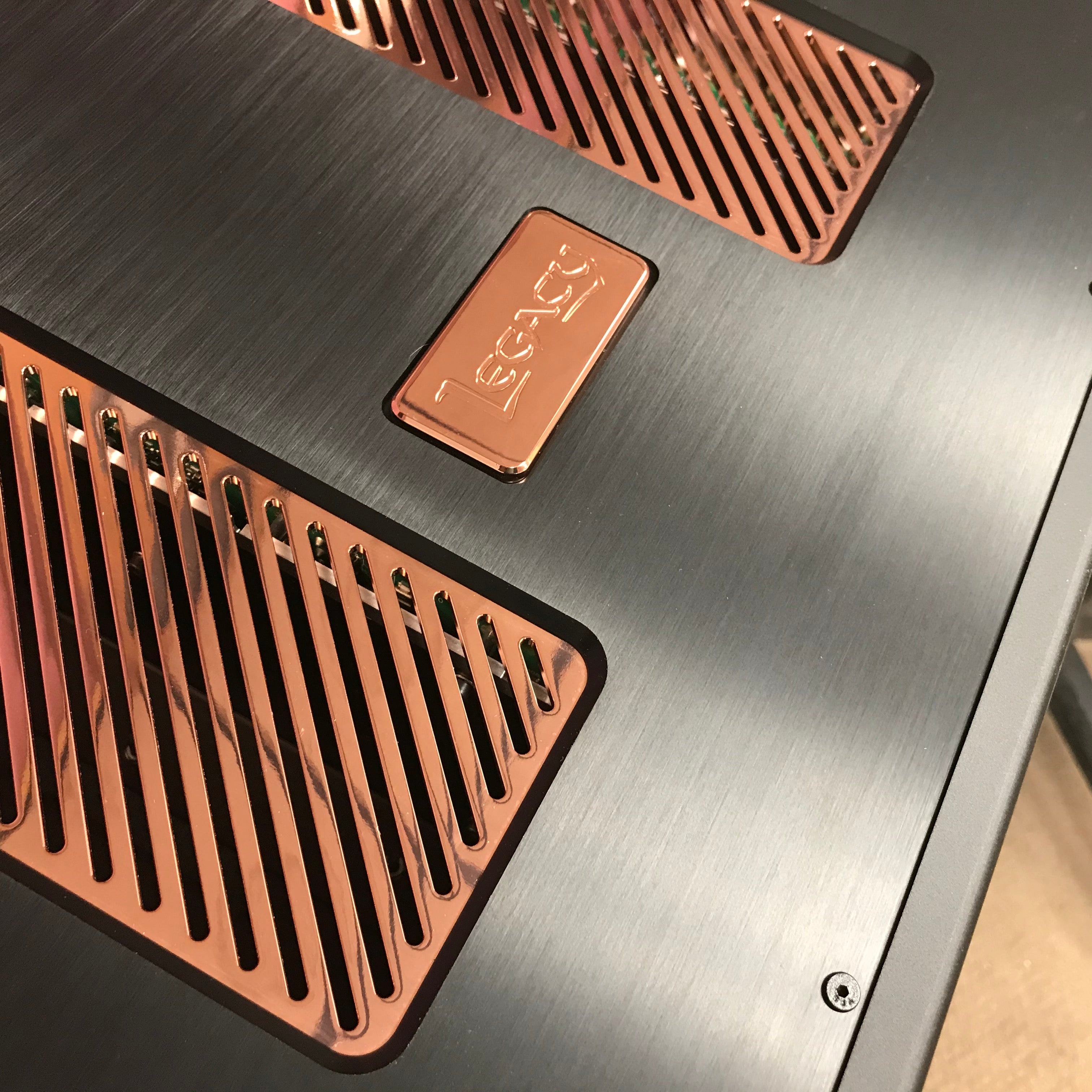

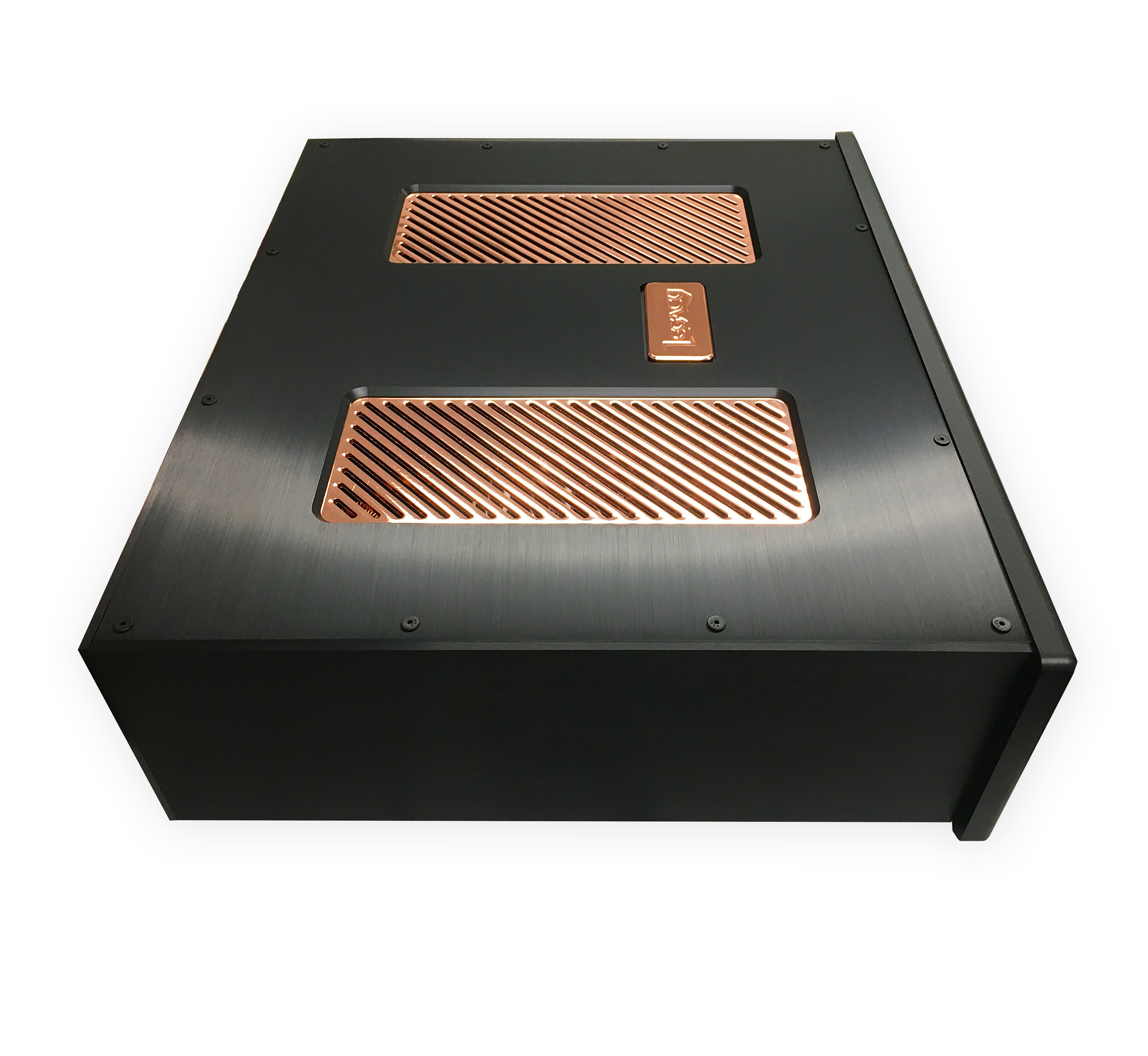

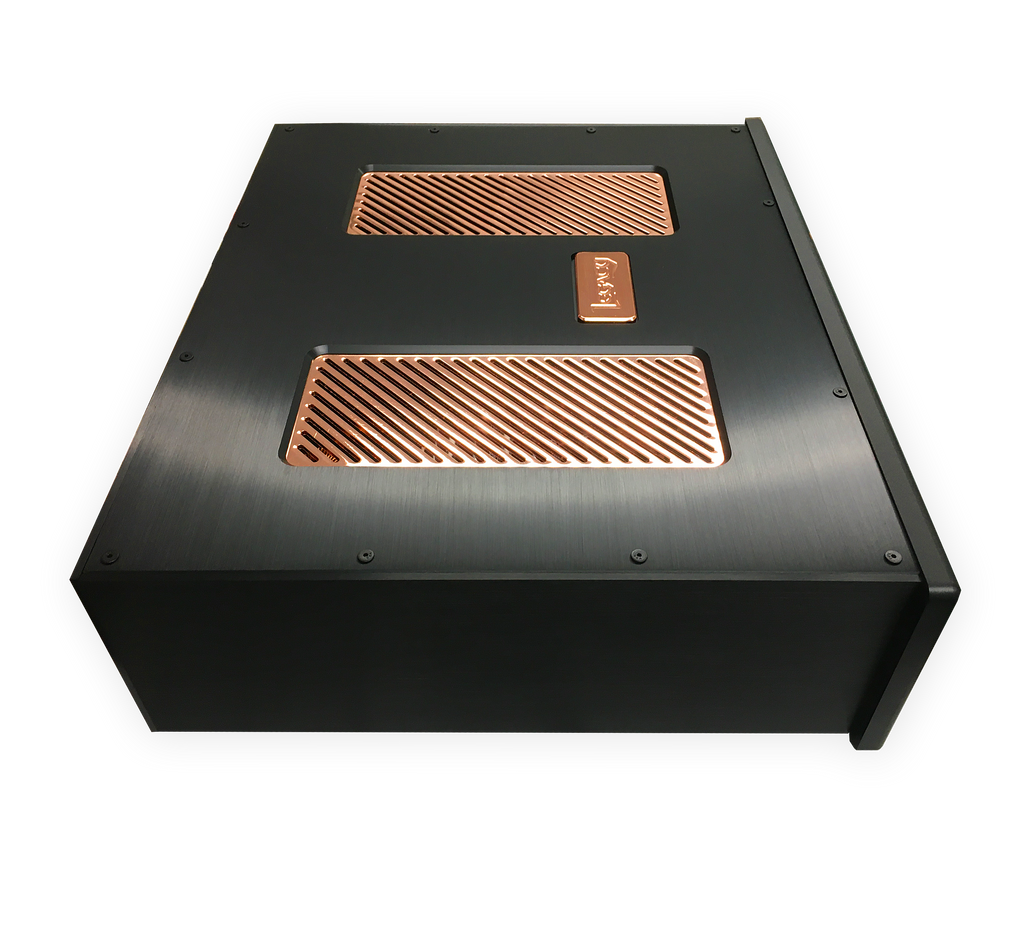

Legacy Audio i·V3 ULTRA 3 Channel Amplifier
Couldn't load pickup availability
NEW 3 channel high performance amplifier from Legacy Audio! The i·V amplifier series.
Featuring state of the art ICEedge® technology, the elegant two channel amplifier approaches 80% efficiency while delivering 610 watts per channel into 8 ohms, 1,000 watts per channel into 4 ohms.
Removing dynamic limitations while preserving detail is paramount to the listening experience -- home theater demands both high current (i) and high voltage (V) output.
Featuring state of the art ICEedge® technology, such exceptional power is the product of very high current (i) and voltage (V) output capabilities providing stability into impedances as low as 2.7 ohms. The amplifier supports 12VDC triggered on/off and in addition to this stereo version, is also available in mono, 3, 4, 5, 6, 7 and 8 channel versions for Atmos® installations.
i·V 3 Features:
- Short circuit protection
- Thermal protection
- Triggered On/Off
- Standby switch
- Front panel status indicator
Say goodbye to excessive heat and transformer hum. The crystal-clear sound is virtually noise-free and reliability is assured- after all, it’s a Legacy.
| Power Rating: | 1,000 watts per channel @ 4 ohms, all channels driven 610 watts per channel @ 8 ohms |
|---|---|
| Peak Power: | 1.2 kW peak power from any channel @ 4 Ohm/ 1kHz with less than 1% distortion |
| Over Current Protection: | Breaker reset for excessive sustained current |
| Inputs: | Fully balanced XLR, single-end RCA |
| Outputs: | Gold plated safety approved five-way binding posts |
| Damping factor: | 750 average, 20Hz to 1kHz |
| Voltage Gain: | 25.8 dB |
| Dynamic Range: | 127 dB, A-weighted |
| Voltage/Current: | 98 Vp/ 38Ap |
| Input Sensitivity: | 5.0 Vp @ 1200W/4 Ohm |
| Input Impedance: | 38 kOhm for both pin 2+ and pin 3- |
| Channel Separation: | 120 dB at 1kHz |
| Unit Weight: | 25 lbs |
| Unit Dimensions: | 17.5" W x 15.6" D x 5.8" H |
