Instant Ship: Legacy Focus XD Pair

The world renowned Legacy Focus SE is now available with internal amplification and more, in the Focus XD. The award winning Legacy VALOR System and AERIS, (2023 Product of the Year) are based upon multi-amplification technology. Now, these same powerful upgrades are available for the popular Focus speaker.

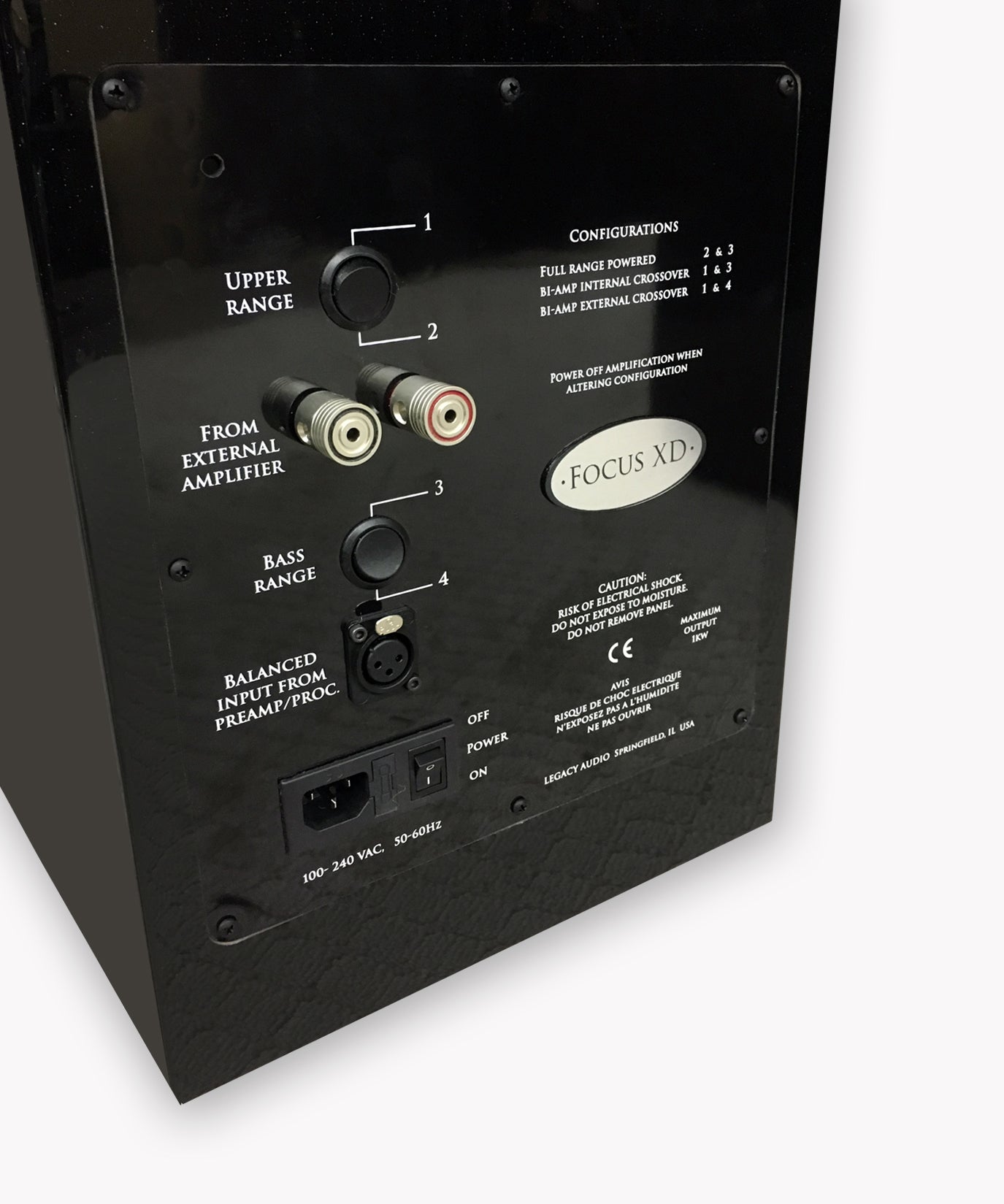

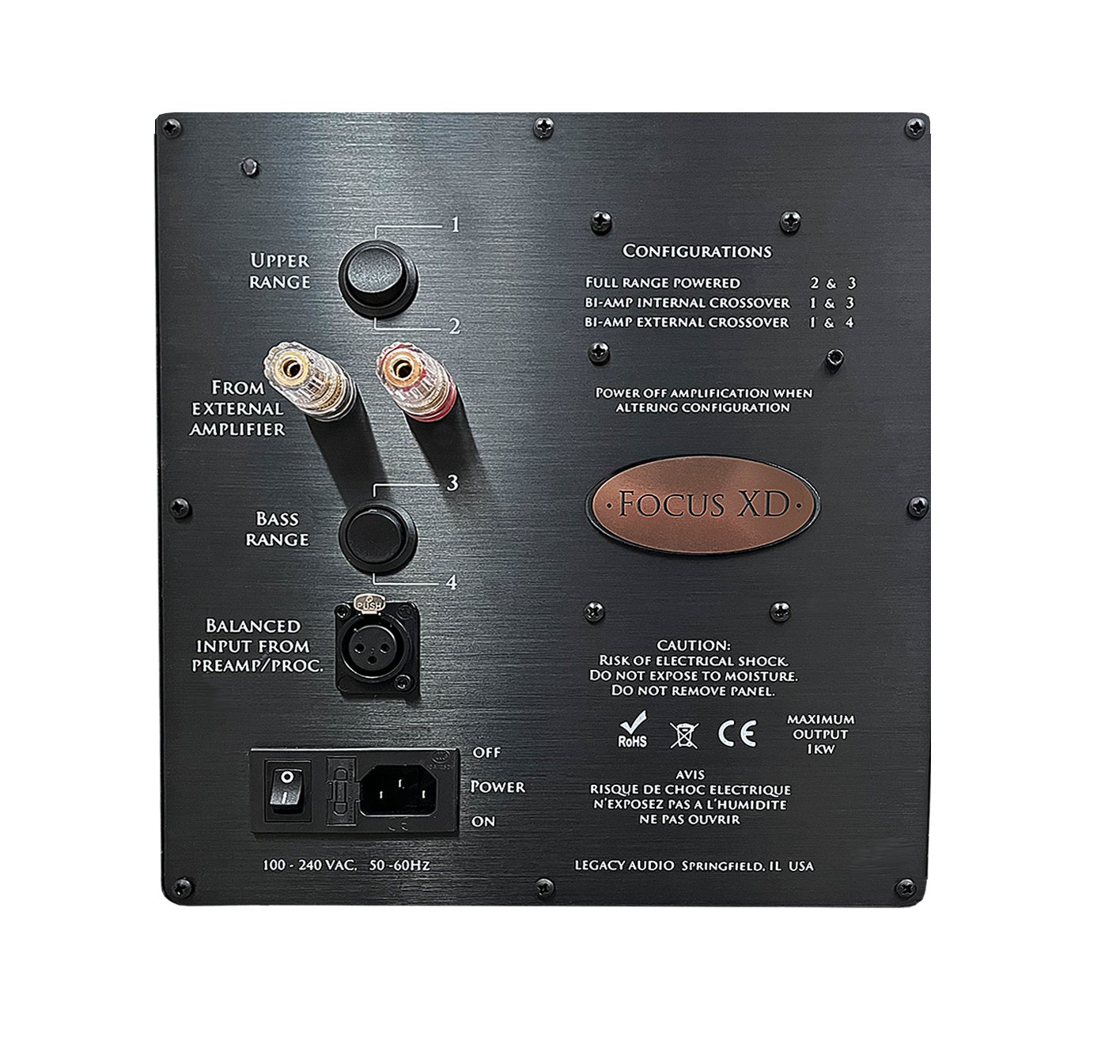

The new Legacy Focus XD features 750 watts of super low distortion ICEpower amplification inside each tower. The benefits of bi-amplification are significant- reduced intermodulation, improved transients, greater dynamic range and lower distortion. The back panel of the Focus XD provides a balanced XLR and a high level binding post input (from your existing amplifier), offering the user multiple configurations:

1. Active Biamplification by powering the dual 12" woofers with the internal amplifier and using an external amplifier for the mids and highs. Employ the outboard Legacy Wavelet processor as the crossover and benefit from the Breakthrough Technology of the Year room correction.

2. Connect the internal 750 watt amplifier to the bass section via the internal crossover.

3. The Fully Active Focus XD option allows the entire speaker to be internally powered by the full range amplifier- a method employed by many music professionals.

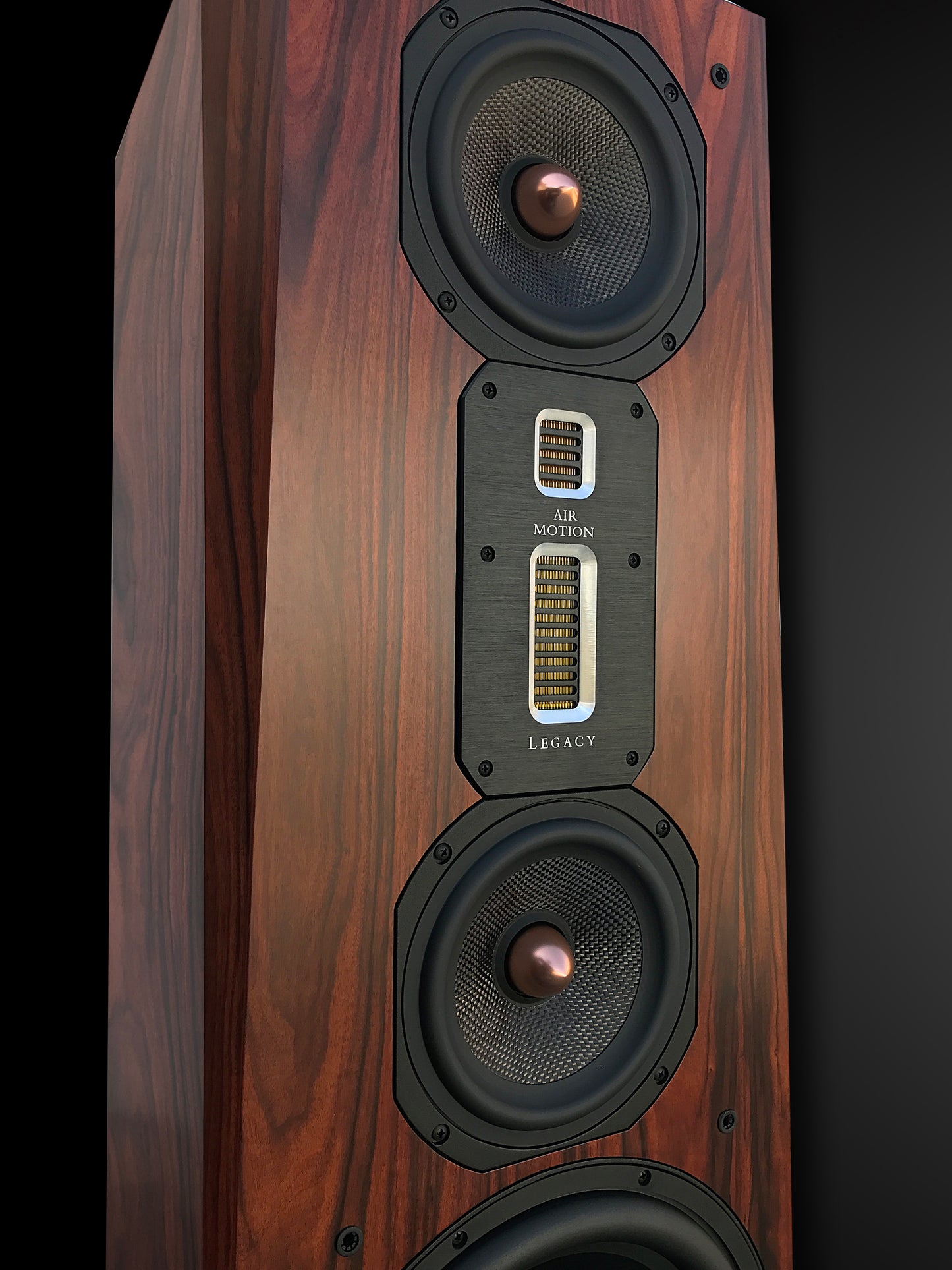

The Focus XD incorporates the same driver complement as the Focus SE, featuring dual Aura 12" woofers, dual 7" silver/graphite midranges and the Legacy Dual AMT System.

The stiffened and reinforced cabinetry progressively narrows with rising frequency to avoid parallel surfaces and eliminate potential standing waves. Driver tolerances on Focus XD are performance matched to +/-0.25 dB.

While Focus SE continues to be the top choice passive full range tower around $10k, the Focus XD upgrade is the next Focus advancement and result of over 30 years of continuous refinement.

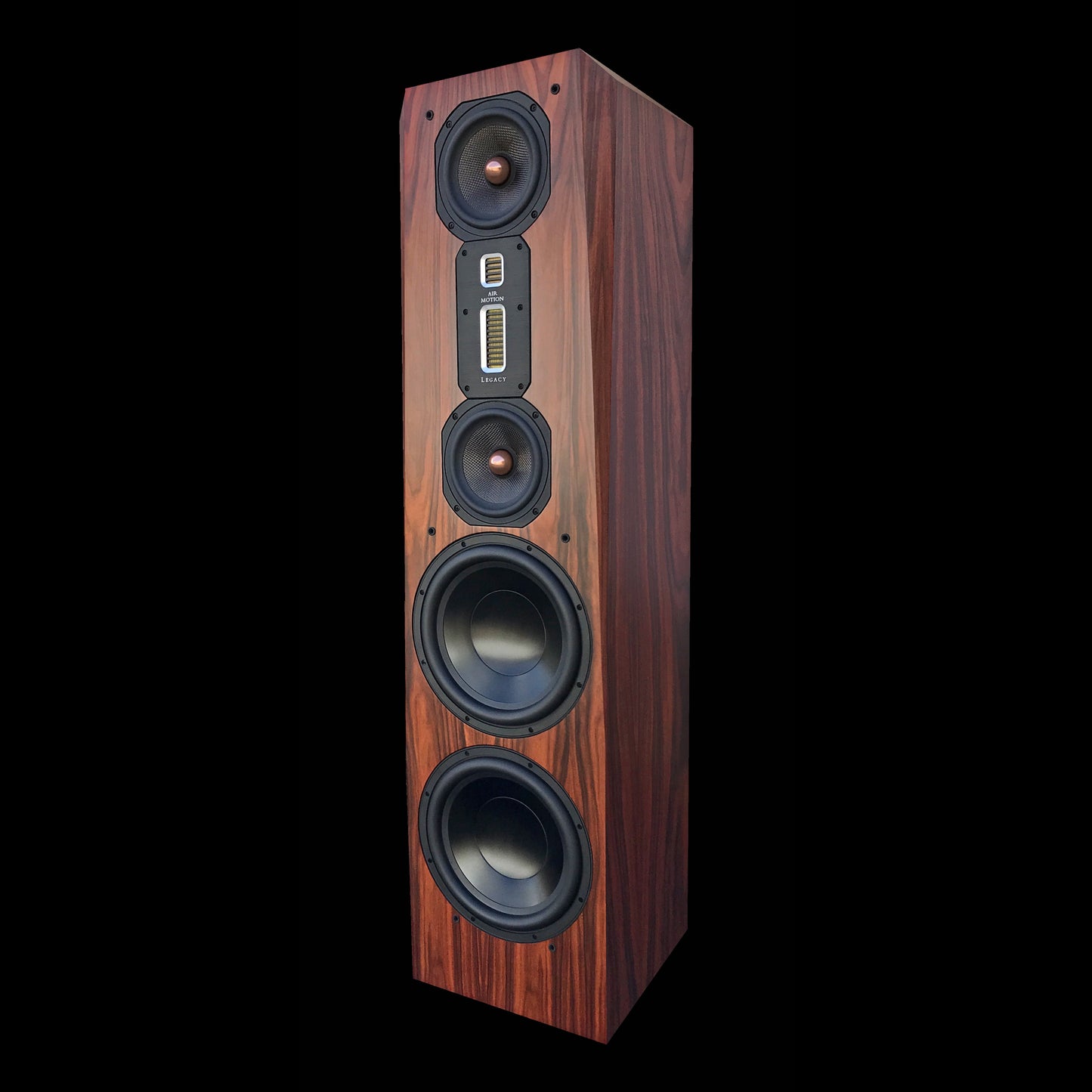

Instant ship pair is rosewood.

System Type:	6 driver, 4 way
Tweeter:	Dual Air Motion Tweeter System- 1" AMT Super Tweeter, Kimber silver HF wire
Midrange:	Dual Air Motion Tweeter System- 4" AMT Tweeter
Midwoofer:	Dual 7" Graphene-filled carbon fiber cone with cast frame
Subwoofer:	Dual 12" spun aluminum diaphragm, rubber surround, total enclosed neo motor, long throw suspension, with cast frame
Low Frequency Alignment:	Assisted 6th order Butterworth, dual rear ported
Inputs:	1 Pair binding posts for upper range, 1 XLR balanced for full range or bass section
Internal Amplification::	750 Watt internal amplifier for full range or bass section
Recommended Amplification:	1 channel of 10 watts minimum for bi-amping upper range
Freq. Response (Hz, +/-2dB):	18-30K
Impedance:	4 Ohm/ 10k amp input
Sensitivity:	95.4 dB ( 2.83V@ 1m)
Crossover (Hz):	120, 2.8K, 8K
Dimensions HxWxD (inches):	55 x 14 x 15.375
Shipping Dimensions HxWxD (inches):	62 x 22 x 22
Weight (each):	130 Ibs
Shipping Weight (each):	182 lbs
Available Finishes:
