Instant Ship: Legacy Foundation Subwoofer
Regular price
$4,800.00 USD
Regular price
Sale price
$4,800.00 USD
Unit price
per
Couldn't load pickup availability
Legacy's new Foundation subwoofer delivers incredible attack with ultra-low distortion and world class definition utilizing only 1.5 square feet of floor space.
Using patented compound passive radiator technology and a pair of Legacy's renown long throw 12" woofers, Foundation offers musical performance previously unattainable at this price level.
Supercharged with the newest ICEpower®amplifier technology, Foundation benefits from 30 amps of peak current, ultimately necessary to provide tight control to the 3 inch voice-coil within the massive 30 lb magnetic structure of each woofer.
We invite you to compare this subwoofer with any competing subwoofer….we think you’ll be amazed!
| Application:: | Dynamic dual subwoofer system, delivering essential low frequency output |
|---|---|
| System Type:: | Mutually coupled subwoofers, pneumatically loaded |

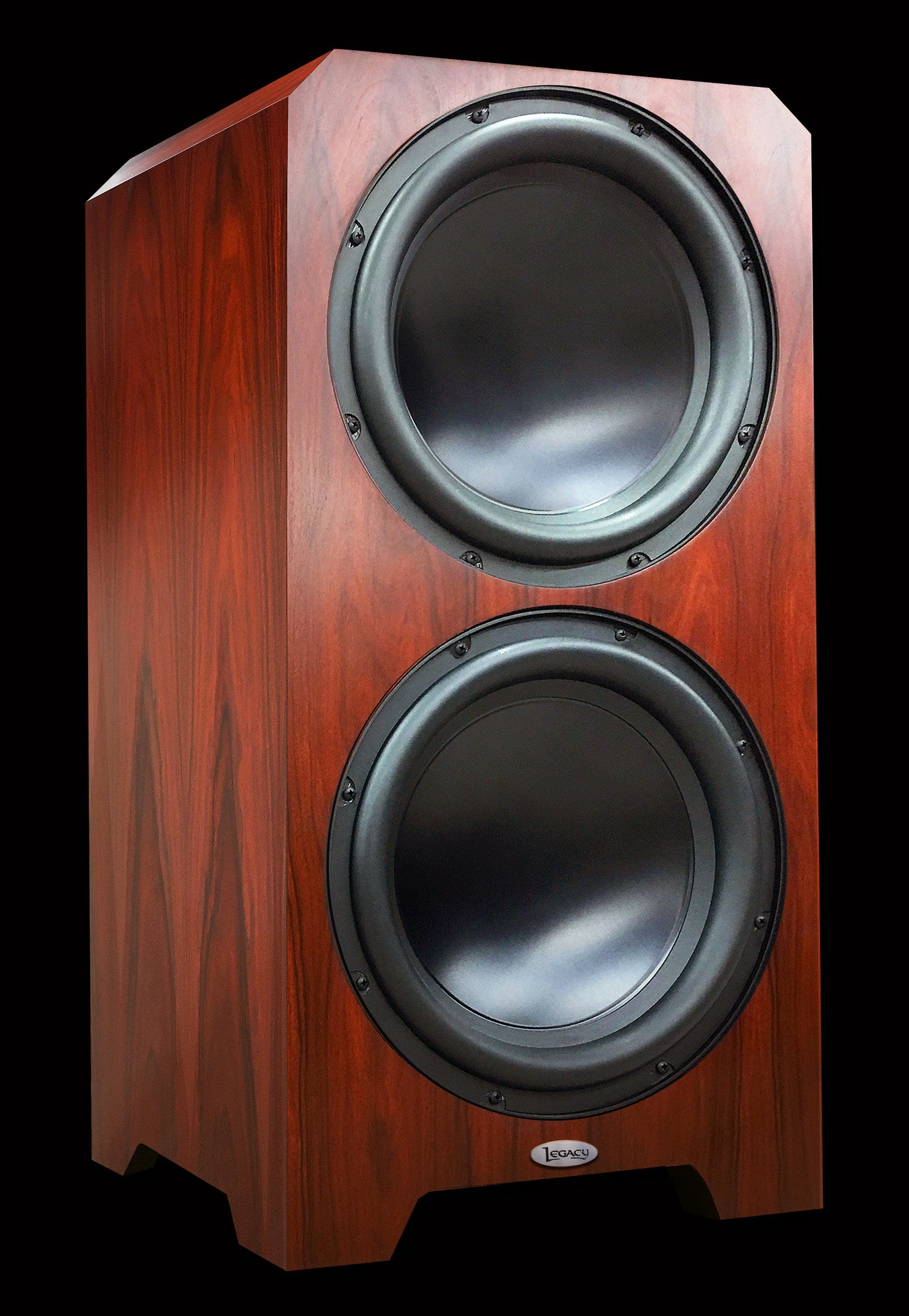

| Subwoofer:: | (2) 12" spun aluminum diaphragm, 480oz motor structure, cast frame, 3" dual 4 layer voice coil, 2" peak to peak travel |
| Passive Radiator:: | (2) 12" Patented Symmetrically Loaded Passive System radiators, 4" peak to peak travel |
| Low Frequency Alignment:: | Electrically assisted 6th order |

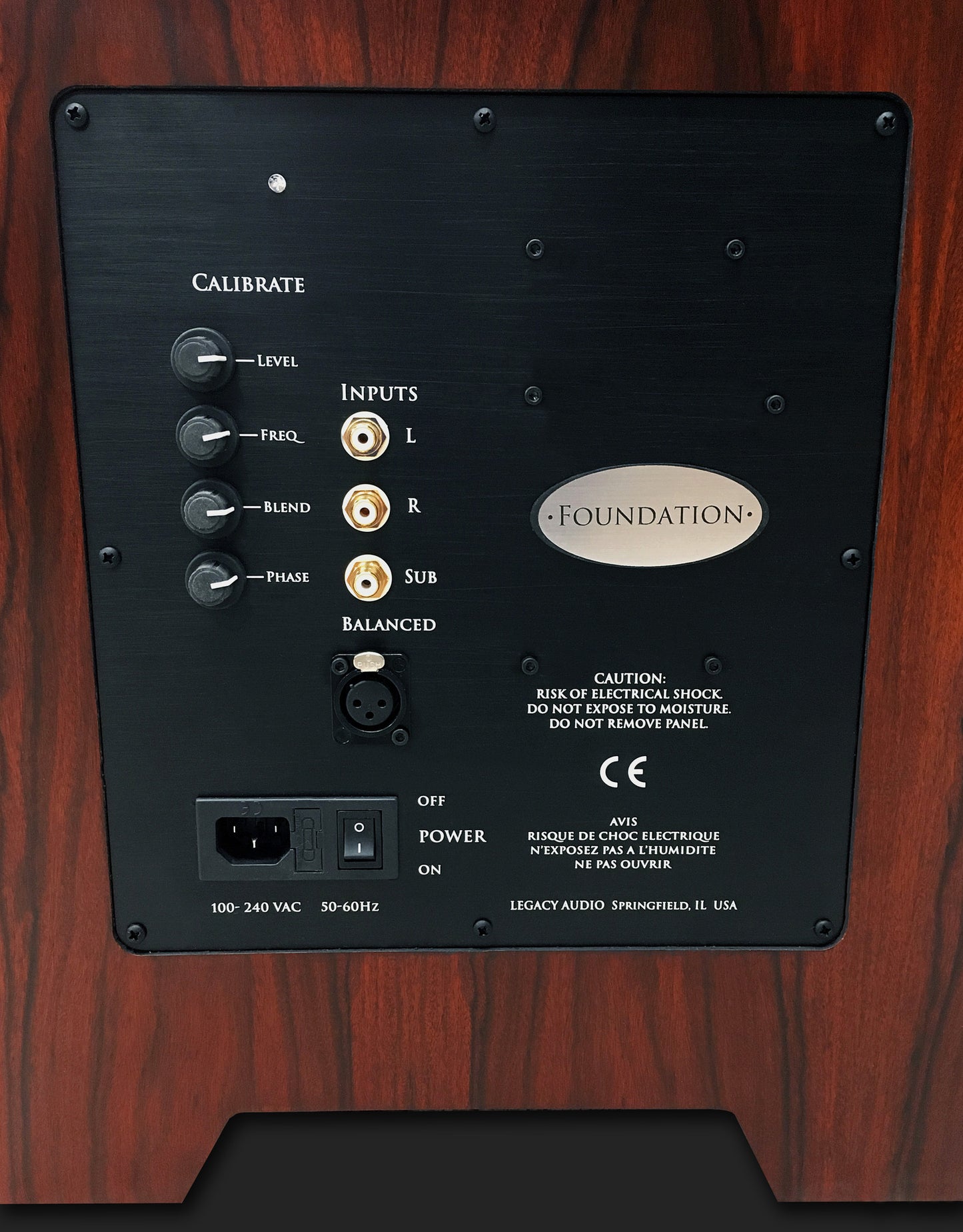

| Inputs:: | Sub (LFE), L/R RCA, balanced XLR |
| Internal Amplification:: | 1000 Watts Class D ICEpower® |
| Freq. Response (Hz, +/- 2dB):: | 16-120 |
| Impedance:: | 10k Ohms |
| Phase Adjustment:: | Continuous +/-180 |
| Blend EQ:: | +/- 12 dB @45Hz |
| Max SPL:: | 123 dB @ 1m |
| Low Pass Filter Slope:: | 18 dB per octave |
| Crossover (Hz):: | 40-120 |
| Cabinet Dimensions (inches):: | 29 H x 14.5 W x 15 D |
| Cabinet Weight:: | 113 lbs |
| Available Finishes: |

|
|---|
