Legacy Metro XD Subwoofer
Couldn't load pickup availability

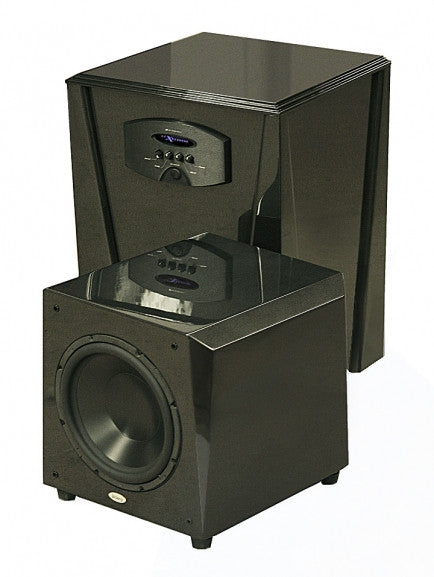

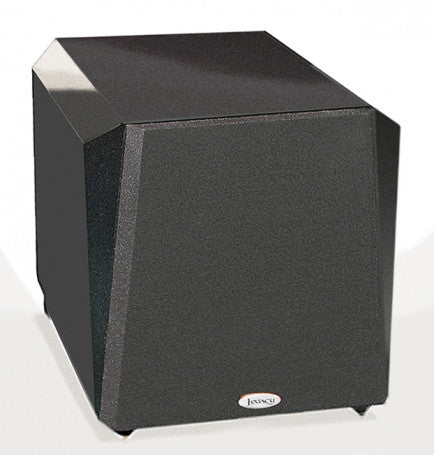

As a 16" cube, Metro XD is the smallest of Legacy's renown subwoofers. Capable of an amazing 118dB of output, Metro is designed to augment systems with woofers 10" and smaller.
"I found it amazing how well the Metro sub performed with the Classic HD. It was the perfect extension for the towers, adding depth to the already significant bass output with music or effects." -Darryl Wilkinson, Home Theater Magazine

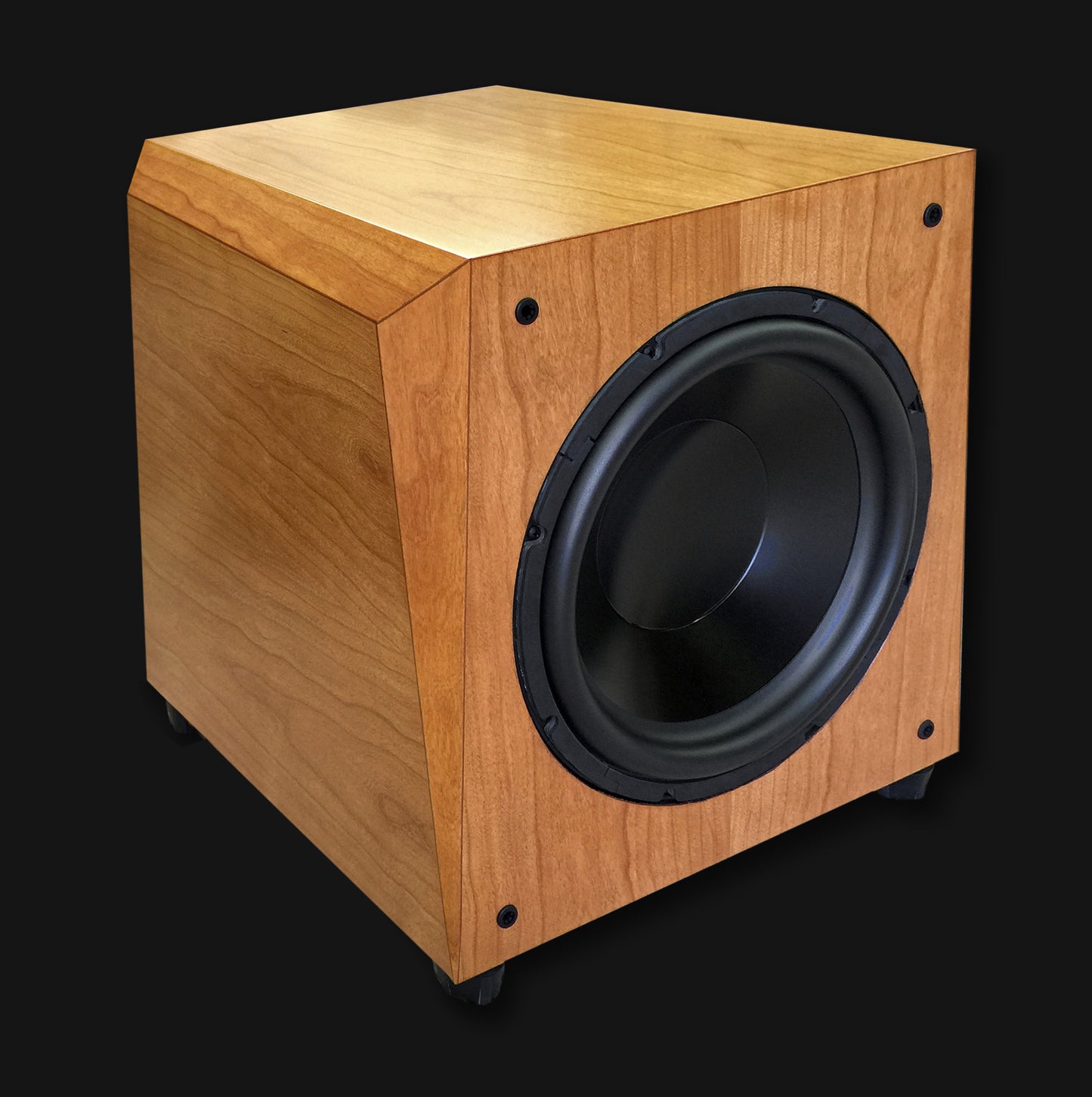

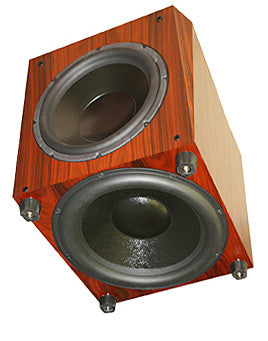

To achieve this remarkable output, Metro takes advantage of the piston area that only a 15" down-firing radiator can provide. Use it in your home theater system to enhance low frequency effects or go way down deep to discover the hidden bass lines in your music. This kind of extension can only be achieved in a compact enclosure by supplying serious power - 750 real watts to be precise - to an efficient long throw 12" subwoofer. This driver offers the highest Xmax available in its efficiency class and a patented Aura motor structure. Metro provides variable level control, continuous phase adjustment and a wide range of crossover frequencies.
| System Type: | Subwoofer, pneumatically coupled |
|---|---|
| Subwoofer: | Aura 12" spun aluminum with encapsulated neo motor |
| Radiator: | Down-firing 15" |
| Low Frequency Alignment: | 6th Order |
| Internal Amplification: | 750 watt, Class D |
| Freq. Response (Hz, +/-2dB): | 20-150 |
| Impedance: | 10k |
| Phase Adjustment: | Cont. +/-180 |
| Blend EQ: | Level Control |
| Max. SPL: | 118dB @ 1m |
| Low Pass Filter Slope: | 18 dB per octave |
| Crossover Hz: | 40-150 |

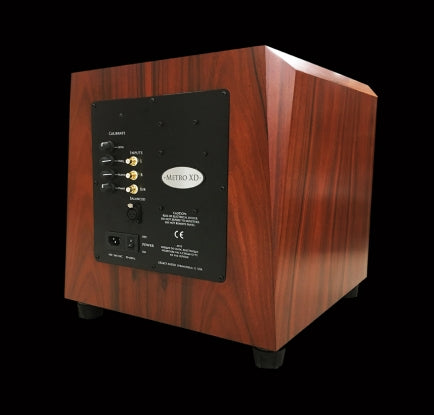

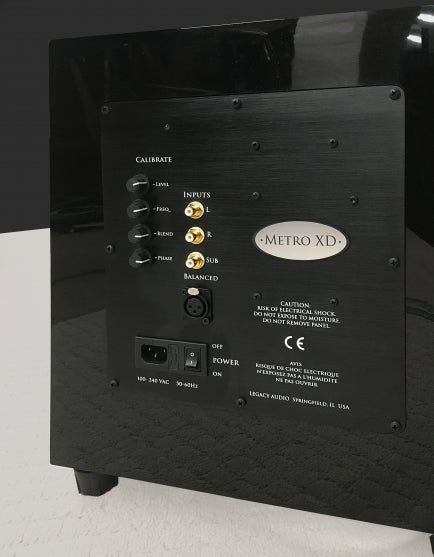

| Inputs: | LFE, L/R RCA, balanced XLR |
| Dimensions (Inches): | 16 x 16 x 16 |
| Weight: | 47 lbs. |

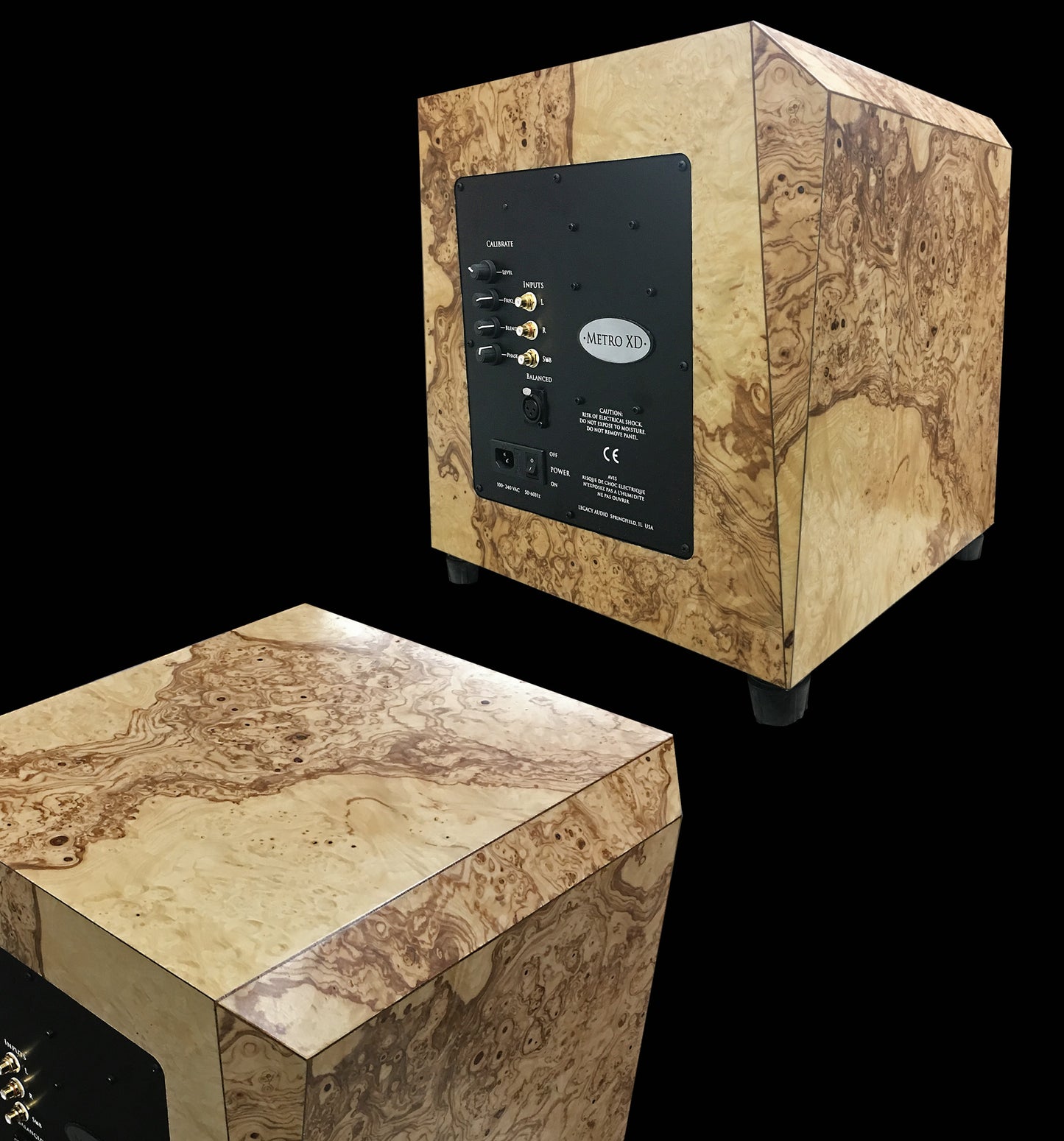

| Available Finishes: |

|
