Legacy Pro Audio

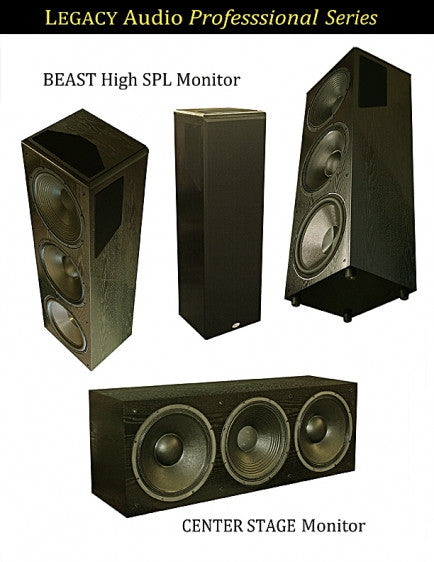

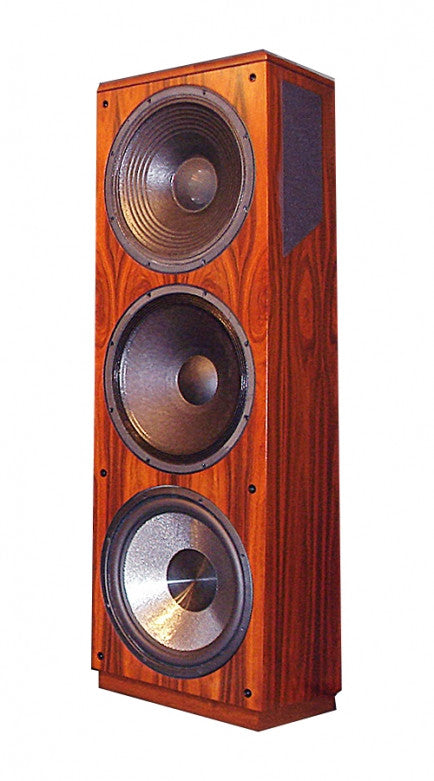

Legacy Pro Audio Beast
Regular price
$6,450.00 USD
Regular price
Sale price
$6,450.00 USD
Unit price
per
Couldn't load pickup availability
The appropriately named Beast, handles high SPL with ease, with all of the clarity you expect from Legacy Audio. The three 15" drivers provide ample piston area to move plenty of air and are suitable for the club, theater, or production studio.
| Application: | High SPL, full range monitor |
|---|---|
| System Type: | Hybrid, vented sub, open air mids |
| Mounting: | Floor standing |
| System Directivity: | 60 degrees horizontally, 45 degrees vertically |
| Projection Distance: | 10-40 feet |
| Tweeter: | 2" compression, coaxial with titanium diaphragm |
| Midrange: | 15" accordion edge, cast frame |
| Midwoofer: | 15" carbon/pulp, cast frame |
| Subwoofer: | 15" Silver/Graphite/Rohacell with 40 lb motor |
| Low Frequency Alignment: | Vented |
| Frequency Response (Hz, +/-3dB): | 20-22k |
| Sensitivity (Room, dB @ 2.83V): | 102 |
| Crossover Frequency (Hz): | DSP based 24dB Linkwitz-Riley, phase compensated 150, 1.2k, 2.2k |
| Inputs: | 1 pair upper frequency binding post, 2 XLR mid bass, sub |
| Internal Amplification: | (2) internal 500watt ICEpower® amplifier modules |
| Peak Output Current: | 35 A per channel |
| Idle Noise: | 80 microvolts |
| Output per channel: | 500W @ 0.05% THD+N (1kHz, 4Ω) |
| Amplifier Efficiency: | 83% (250W, 8Ω) |
| Protection Schemes: | Under-voltage, thermal, over-current, high frequency |
| Idle Power: | 3 watts per module x 2 |
| Start-up: | Soft start, mute/de-mute |
| Dimensions HxWxD (Inches): | 51.13 x 17.5 x 14.5 |
| Weight: | 180 lbs each |
