| Applications: | Main channels for theaters, clubs, auditoriums |
|---|---|
| System Type: | DSP steerable, 4 way system, includes internal amplification for midbass and dipolar bass, 4 way system |
| Mounting : | Fixed, portable or flown |
| System Directivity: | Cardioid, 45 degree vertically, 60 degrees horizontally |
| Projection Distance: | 160 feet |
| Tweeter: | Compression horn |
| Midrange: | (4) 6.5" arrayed drivers with phase plug |
| Midwoofer: | (4) dipolar 15", 2 sealed 15" chamber loaded |
| Subwoofer: | mate with doubleHelix subwoofer |
| Low Frequency Alignment: | Dipolar + compression chamber |
| Freq. Response (Hz, +/-3dB): | 42- 20k with processor |
| Sensitivity (Room, dB@ 2.83V): | 107 |
| Crossover Freq. (Hz): | 400, 800, 3K |
| Inputs: | 4 XLR balanced inputs |
| Internal Amplification: | (2) to (4) channels of 500 watt ICEpower® amplification |
| Peak Output Current: | 35 A per channel |
| Idle Noise: | 80 microvolts |
| Output per channel: | 500W @ 0.05% THD+N (1kHz, 4Ω) |
| Amplifier Efficiency: | 83% (250W, 8Ω) |
| Protection Schemes: | under-voltage, thermal, over-current, high frequency |
| Idle Power: | 3 watts/per module x 4 |
| Start-up: | Soft start, mute/de-mute |
| Dimensions (inches) HxWxD: | 62 x 36 x 18 |
| Weight: | 350 lbs each |
Legacy Pro Audio

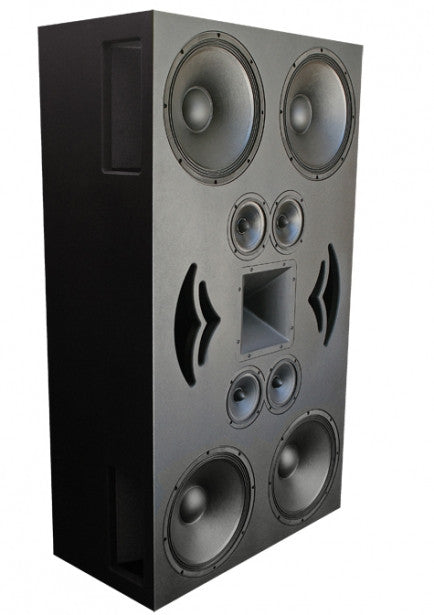

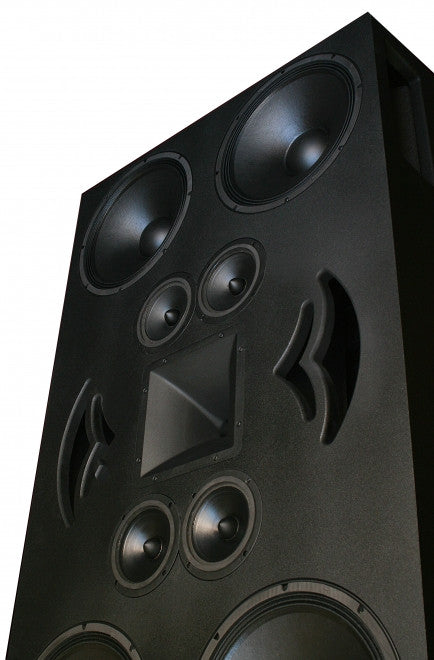

Legacy Pro Audio Double Helix Array
Regular price
$36,000.00 USD
Regular price
Sale price
$36,000.00 USD
Unit price
per
Couldn't load pickup availability
Consisting of four stacked cells, the Double Helix is capable of high SPL audio reproduction while maintaining a controlled radiation pattern via DSP. This super speaker system was originally designed for L.A. Reid and Universal Music Group.
