Legacy Pro Audio
Legacy Pro Audio Theater Towers
Regular price
$7,500.00 USD
Regular price
Sale price
$7,500.00 USD
Unit price
per
Couldn't load pickup availability

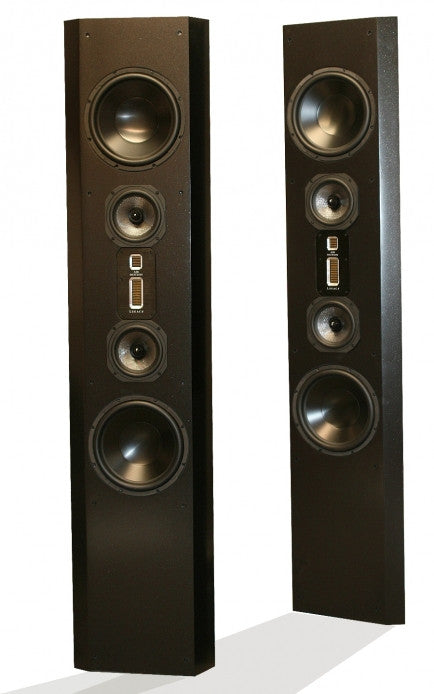

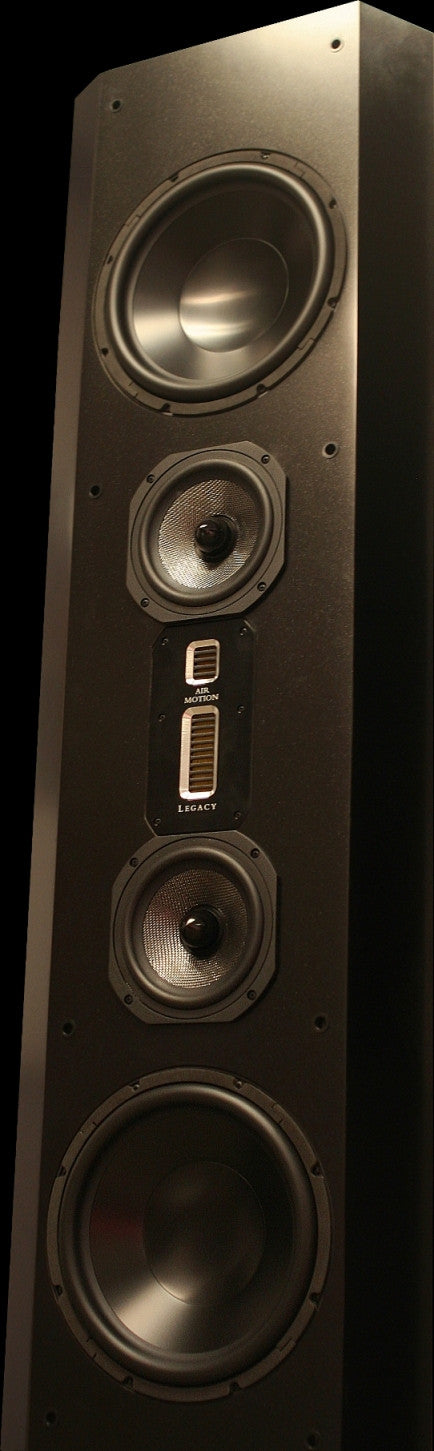

Legacy Theater Towers are designed to provide all of the dynamic capability and clarity needed for theater professionals. Featuring the same ribbon tweeters, silver midrange woofers, and dual 12" subwoofers from the famed Legacy Focus SE- these speakers deliver impactful sound effects and sweeping scores with finesse.
| Product Manual | Download (722 KB) |
|---|---|
| Applications: | Corporate & community living theaters |
| System Type: | Sealed symmetrical array, internally powered bass section |
| Mounting: | Floor standing, against wall |
| System Directivity: | 65 degrees horizontally, 55 degrees vertically |
| Projection Distance: | 8-30 feet |
| Tweeter: | Dual Air Motion Tweeter System - 1" AMT super tweeter |
| Midrange: | Dual Air Motion Tweeter System - 4" AMT tweeter |
| Midwoofer: | (2) 7" Silver/Graphite with cast frame |
| Subwoofer: | (2) patented 12" Aura® subwoofers |
| Low Frequency Alignment: | Sealed |
| Frequency Response (Hz, +/-3dB): | 18-30k |
| Sensitivity (Room, dB @ 2.83V): | 95 |
| Crossover Frequency (Hz): | 120, 2.8k, 8k |
| Inputs: | 1 pair upper frequency binding post, 1 XLR sub |
| Internal Amplification: | 1 internal 500 watt ICEpower® amplifier |
| Peak Output Current: | 35 A per channel |
| Idle Noise: | 80 microvolts |
| Output per channel: | 500W @ 0.05% THD+N (1kHz, 4Ω) |
| Amplifier Efficiency: | 83% (250W, 8Ω) |
| Protection Schemes: | Under-voltage, thermal, over-current, high frequency |
| Idle Power: | 3 watts per module x 2 |
| Start-up: | Soft start, mute/de-mute |
| Dimensions (inches) HxWxD: | 78 x 14.5 x 10.5 |
| Weight: | 200 lbs each |
