Legacy Silhouette On Wall / In Wall Pair
The elegantly styled Silhouette, from Legacy Audio, provides no compromise performance in an artful 5" deep on-wall/in-wall design. The profile appears even thinner due to the anti-diffractive contoured edges. French cleat-mounting brackets make for quick installtion on the wall surface. The robust driver complement and special electrical network yield the optimum response at the listening position. The result is a speaker that does not sound like an on-wall with staging beyond the wall.

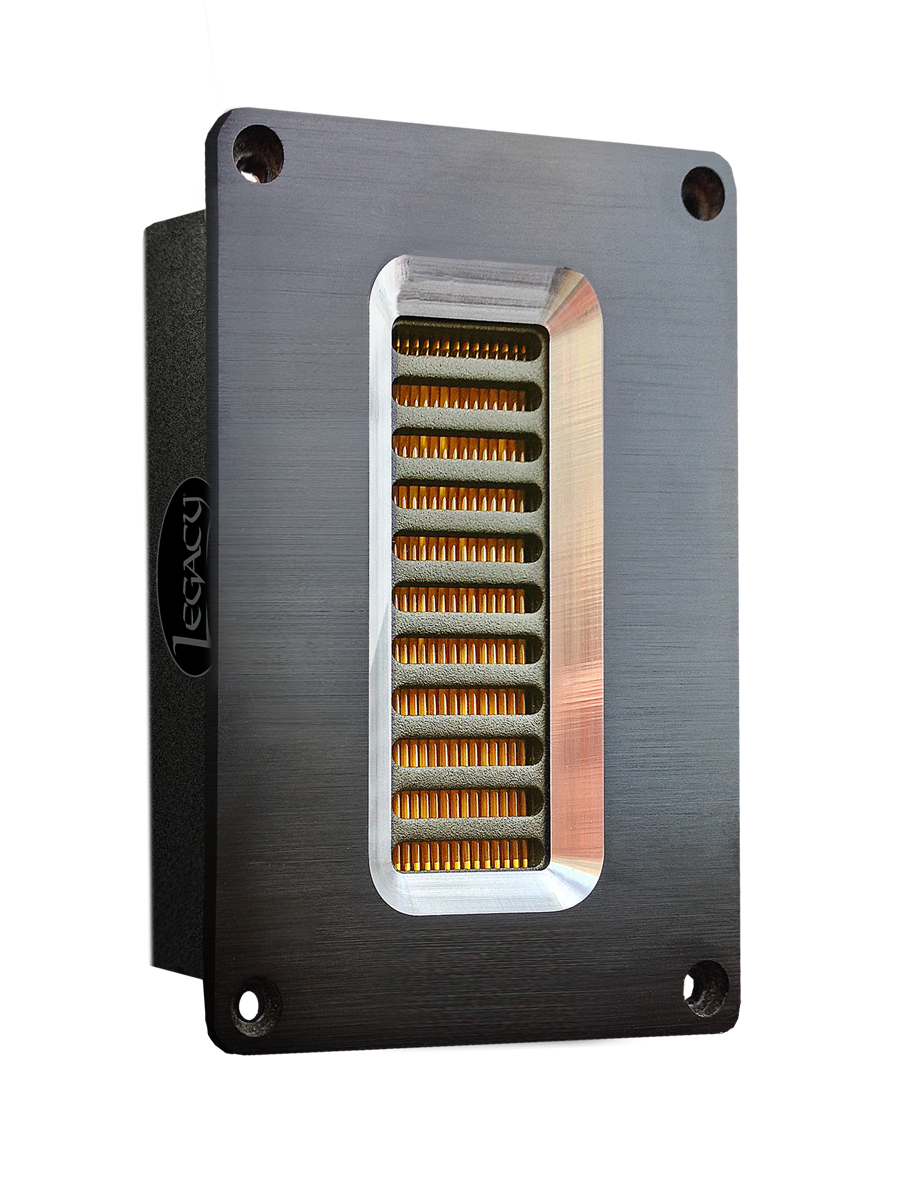

On-wall speakers are often dynamically challenged, especially in the lower octaves. This isn't the case with the Legacy Silhouette. It provides top-to-bottom performance with plenty of slam. The three-way design features a newly engineered 10" low-profile long-excursion woofer and pneumatically coupled radiator to lay the foundation supporting the high acceleration 7" silver/graphite midrange. Treble remains clear and airy from the 4" Legacy AMT ribbon, boasting a high-temperature pleated Kapton diaphragm and neodymium motor.
The internal crossover divides the spectrum precisely where the wall boundary creates a strong dip in the response of conventional speakers. This compensation in the electrical network allows for the appropriate response at the listening position. The result is a speaker that does not sound like an on-wall with staging beyond the wall.
|Application:||On wall full range for mains or side channels|
|System Type:||Three-way, passive radiator|
|Mounting:||Wall mount with bracket|
|System Directivity:||60 degrees horizontally, 45 degrees vertically|
|Bass:||10" long throw low profile motor|
|Low Frequency Alignment:||10" passive radiator|
|Freq. Response (Hz, +/-3dB):||42-28k|
|Sensitivity (Room, dB@ 2.83V):||92|
|Crossover Freq. (Hz):||250, 2.5k|
|Inputs:||1 pair binding post, recessed cup|
|Dimensions (inches) HxWxD:||36.6 x 15.5 x 4.5|
|Weight:||49 lbs each|
