LUMIN U2 Transport Streamer

$5,000.00 USD
$5,000.00 USD
Sale Please Call 818-732-1448 To Order

After the huge success of the sweetspot price/performance LUMIN T3, LUMIN U2 brings the same design philosophy to a transport- taking chassis construction methods, linear power supply design and dual-network from the multi-award-winning LUMIN P1, the all-new LUMIN U2 brings high-end digital right into the heart of the LUMIN range.

SPECIFICATIONS

  • DSD SUPPORT:

    • Up to DSD512 22.5MHz, 1-bit

  • PCM SUPPORT:

    • Up to 768kHz, 16–32-bit, Stereo

  • UPSAMPLING RATES & BIT DEPTHS:

    • DSD256 upsampling option for all files
    • PCM 384kHz upsampling option for all files

  • DIGITAL OUTPUT STAGE:

    • USB:
      • Native DSD512 support
      • PCM 44.1–768kHz, 16–32-bit, Stereo
    • OPTICAL, COAXIAL RCA, COAXIAL BNC & AES/EBU:
      • PCM 44.1kHz–192kHz, 16–24-bit
      • DSD (DoP, DSD over PCM) 2.8MHz, 1-bit

  • OPTICAL NETWORK:

    • Industry-standard SFP
    • 1000Base-T Gigabit Ethernet
    • Adapter may be needed for your particular switch/cables
    • Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

  • POWER SUPPLY:

      • Internal toroidal linear
      • Low-noise linear regulator

    DIMENSIONS: 13.8" (W), 13.8" (D), 2.4" (H), 13lbs

    • First LUMIN Transport to use new all-in-one chassis

    Latest processor provides greater resampling flexibility

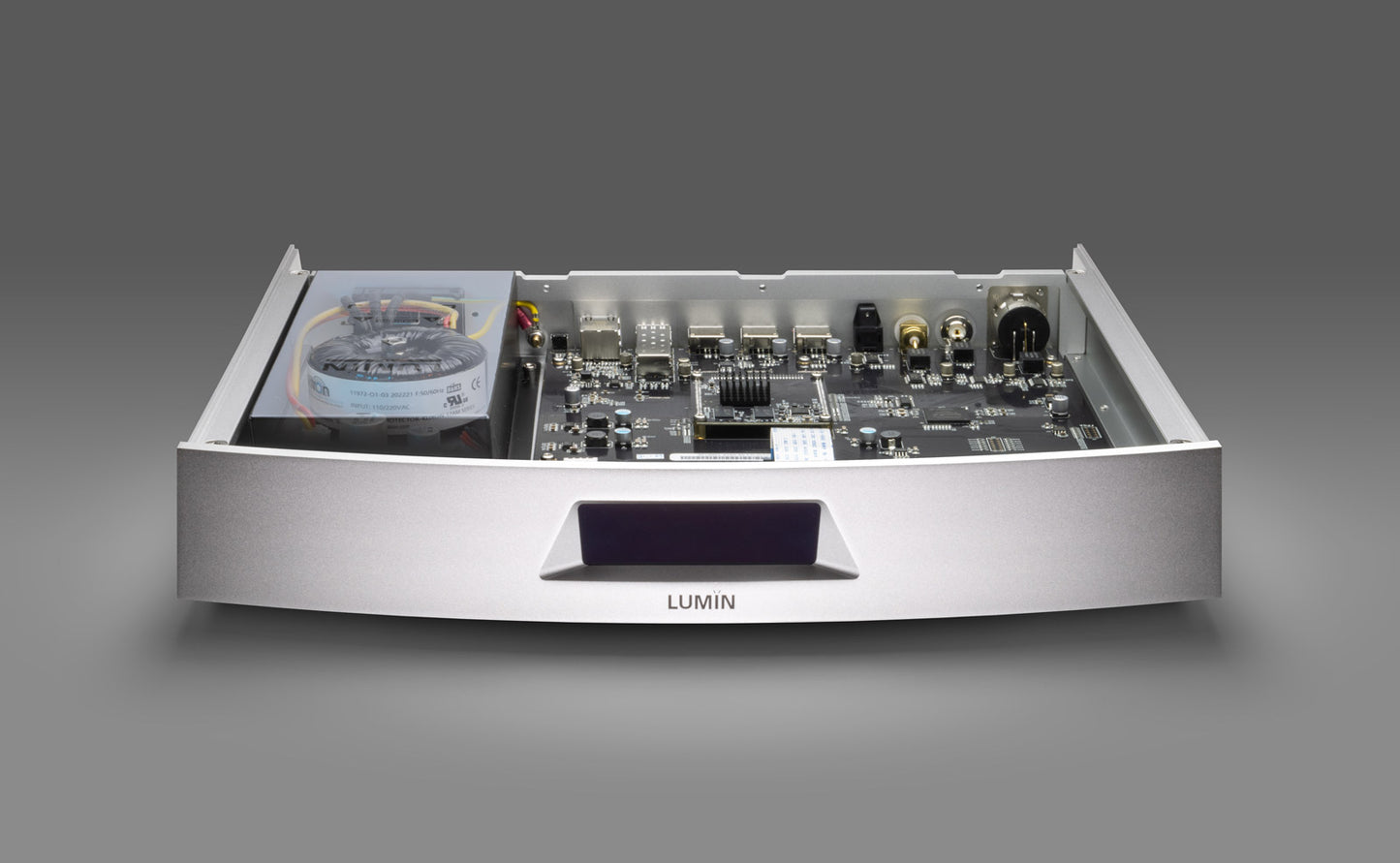

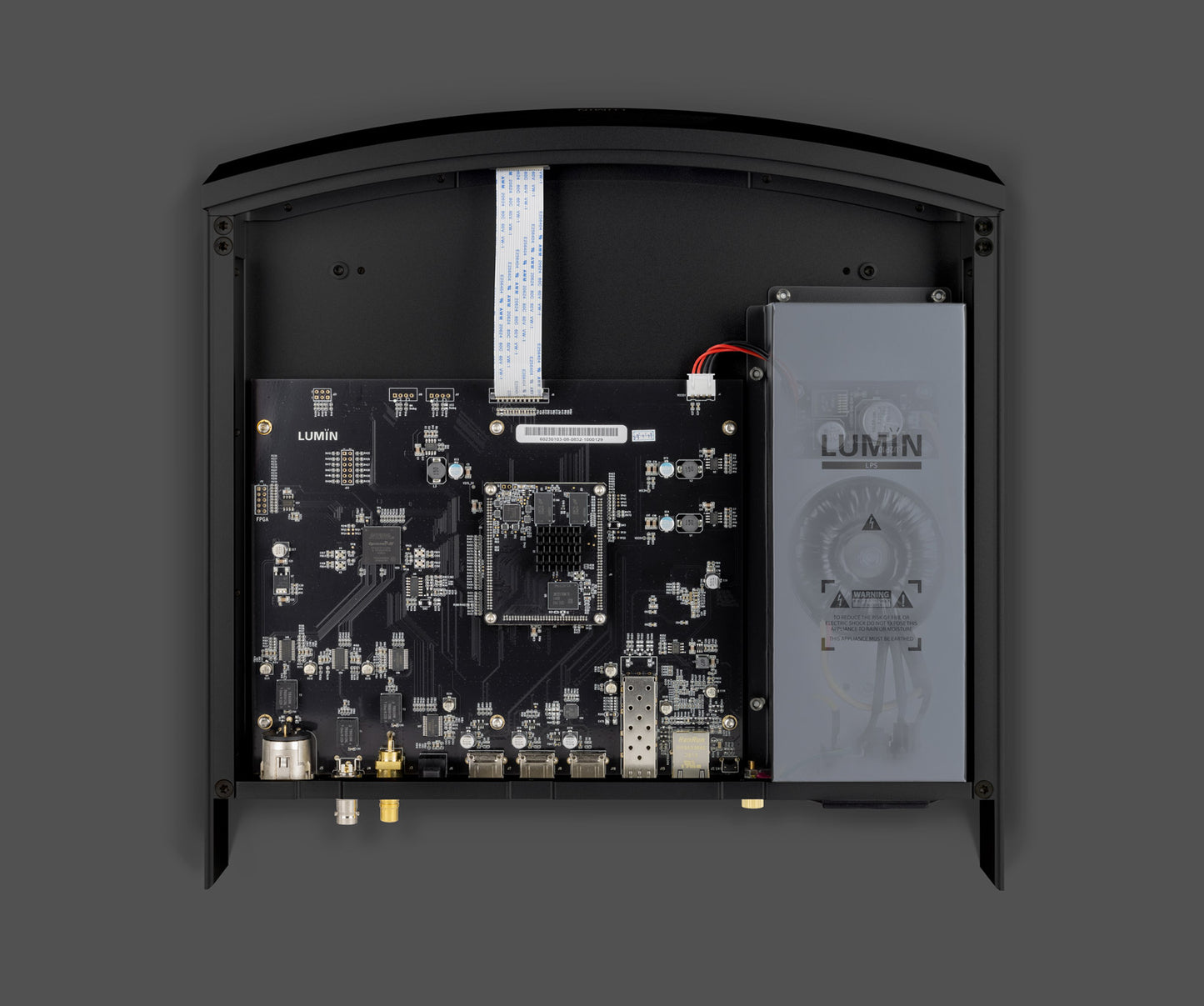

    New integrated toroidal linear power supply

    Fibre Network provides complete isolation from network digital noise

    Increased capacity for future updates

    3 USB ports including a NEW dedicated low-noise USB output Dual-Network interface with built-in Network Switch

    DSD512 and PCM768 playback

    4 exceptionally low-phase-noise crystal clock oscillators

    New surface finish taken from the high-end P1

    Leedh Processing lossless volume control

    First LUMIN to feature 3 USB ports

    New dedicated “Direct-Coupled” USB digital audio output port leaves two ports free for music storage and accessories

    • From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
    • Native support for TIDAL, Qobuz, Spotify and AirPlay-compatible, giving you access to tens of millions of songs
    • The unique and intuitive LUMIN App described as "the most convenient interface in existence" by TINMAN
    • Every LUMIN player comes with support for a wide range of popular streaming services including Roon, TIDAL, Qobuz, Spotify, FLAC Radio Stations and more
    • LEEDH Lossless volume control for all LUMIN players.

    • An innovative new digital volume adjustment algorithm that eliminates rounding errors is now included (at no additional cost) on all LUMIN players.
