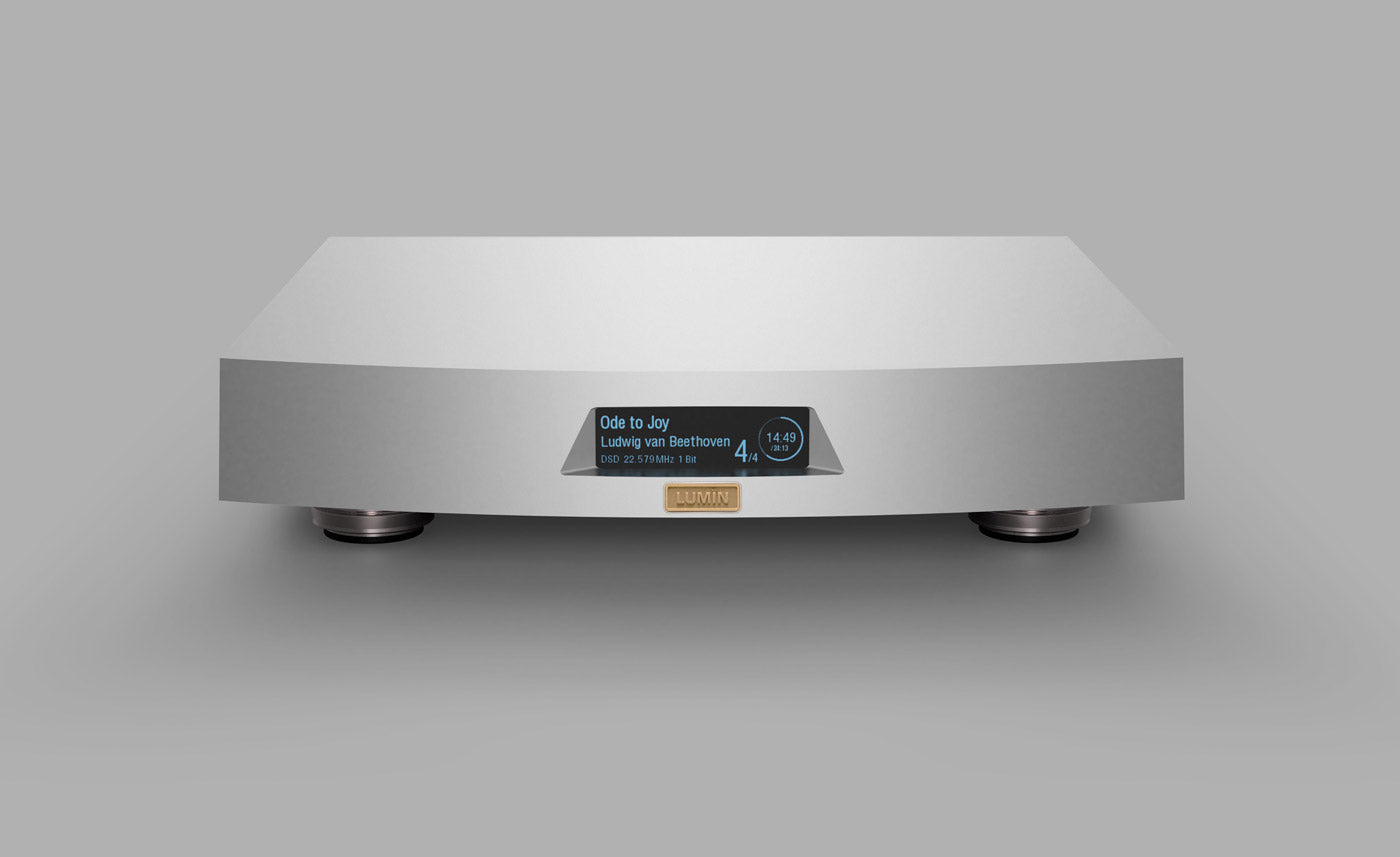

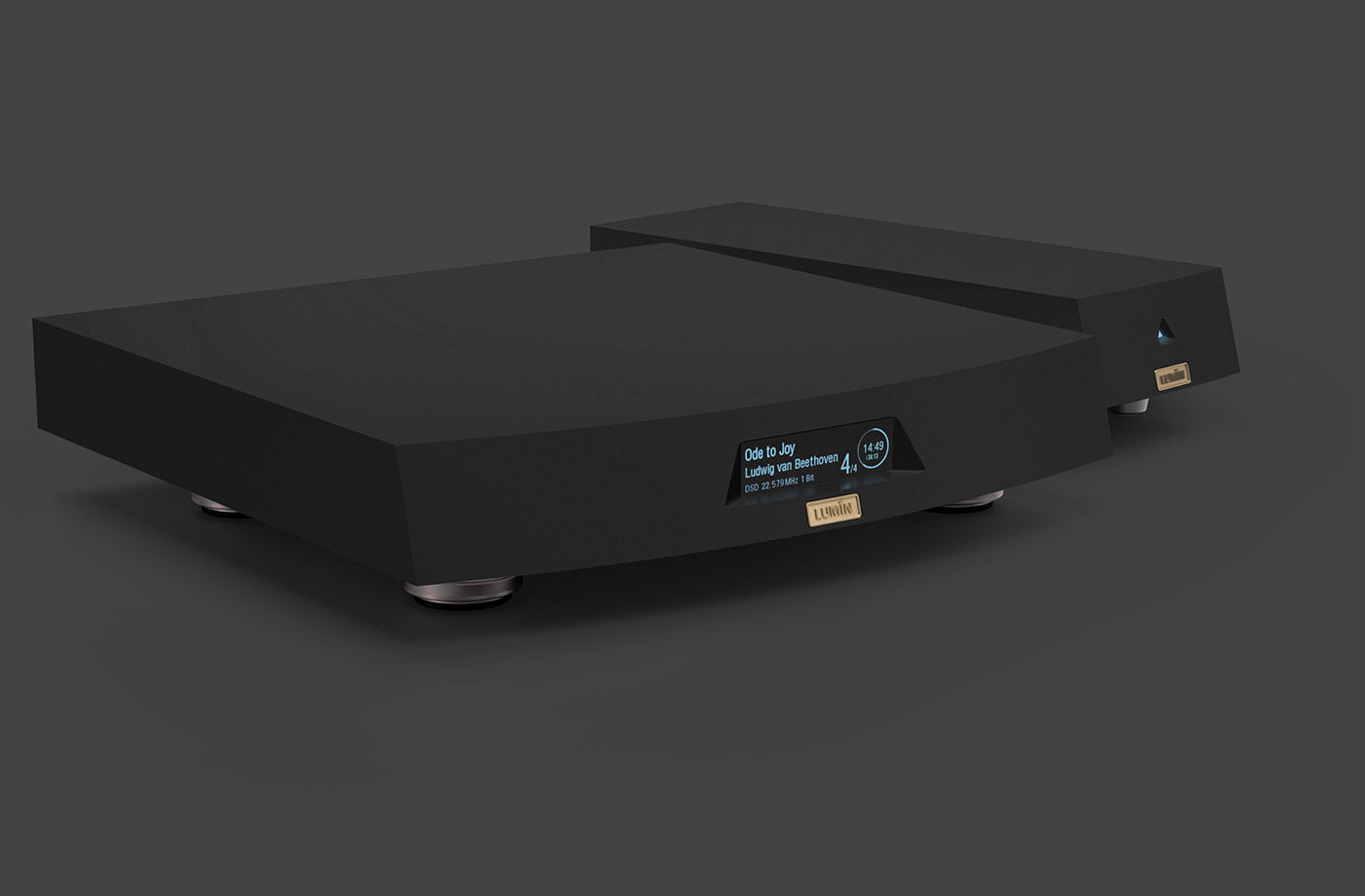

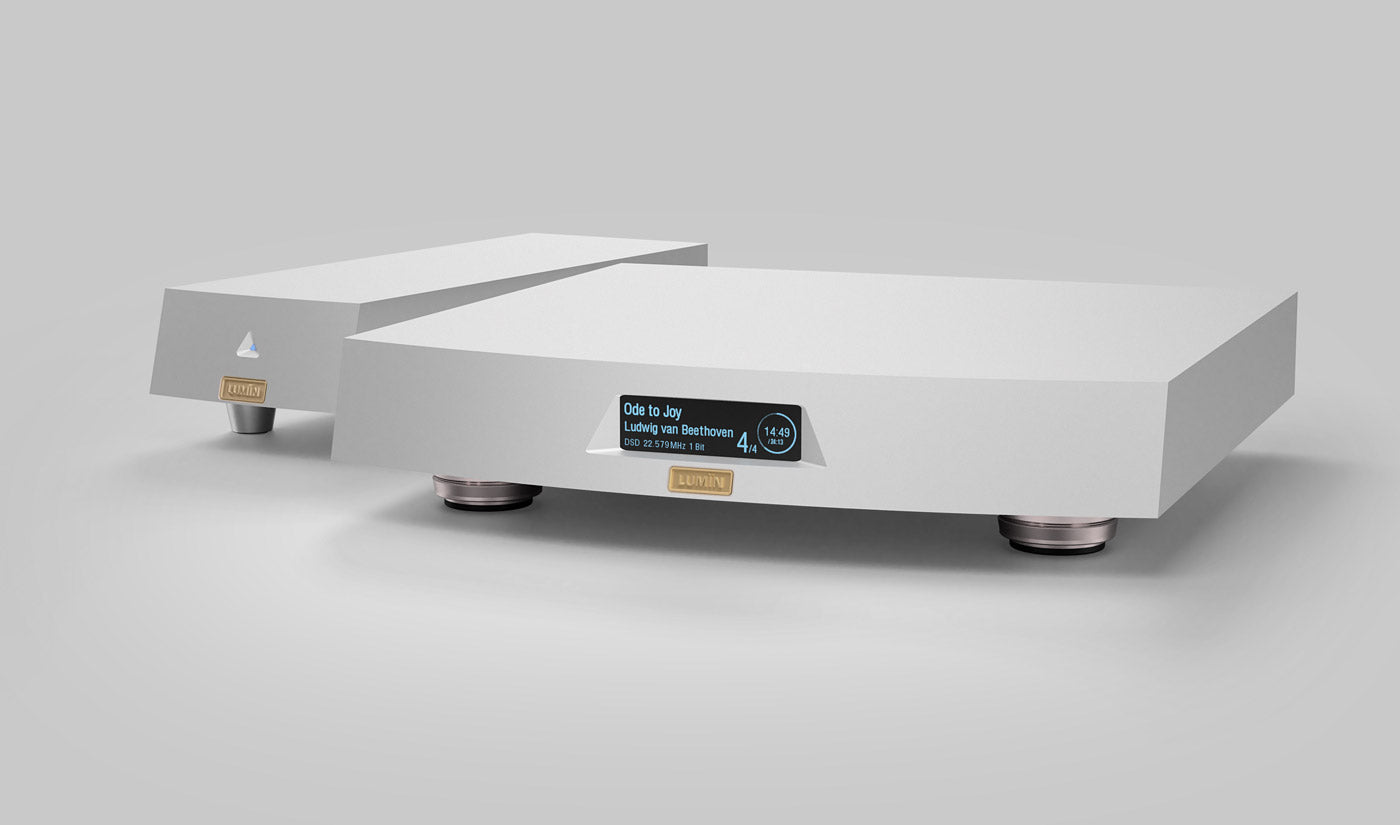

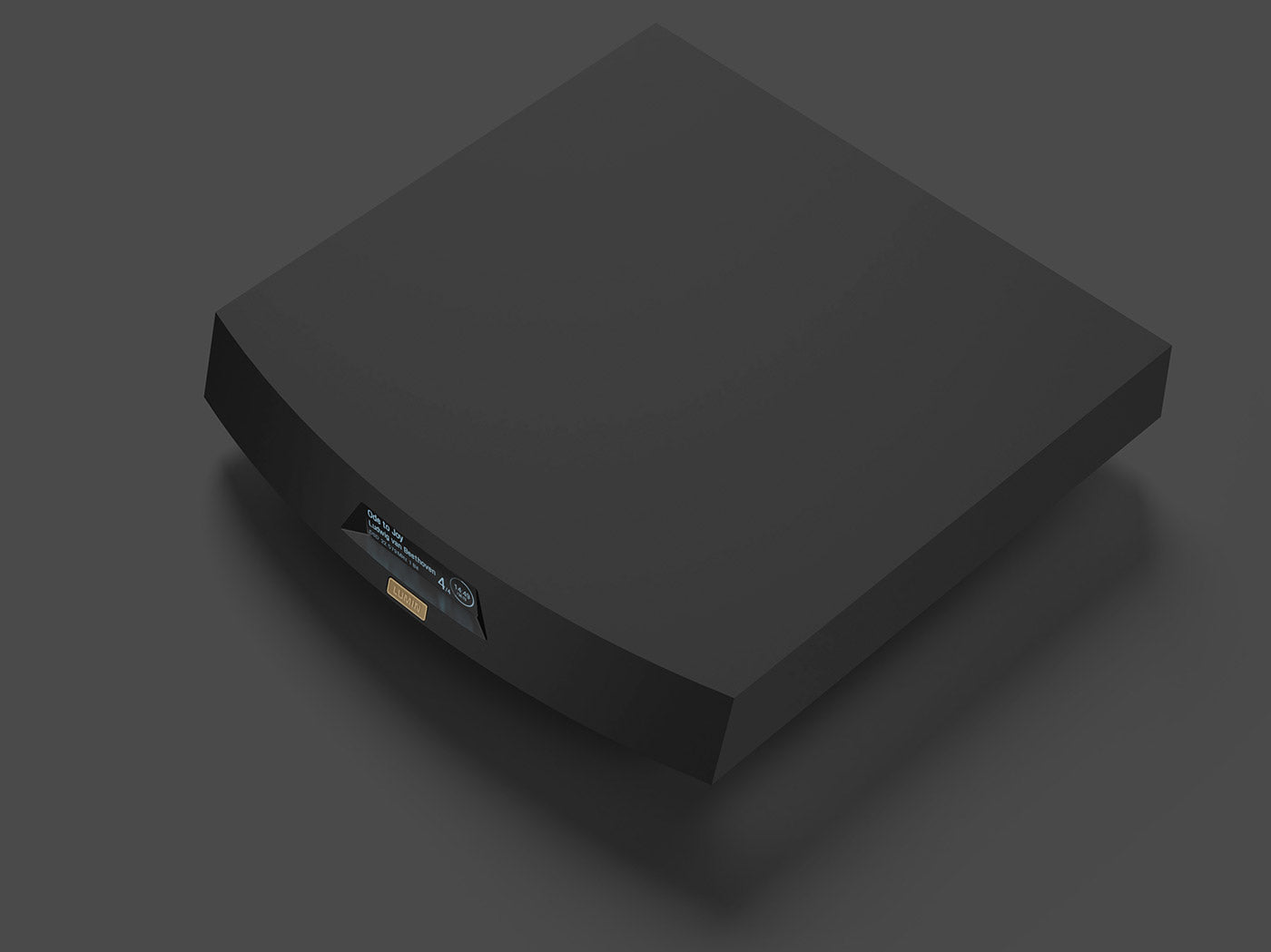

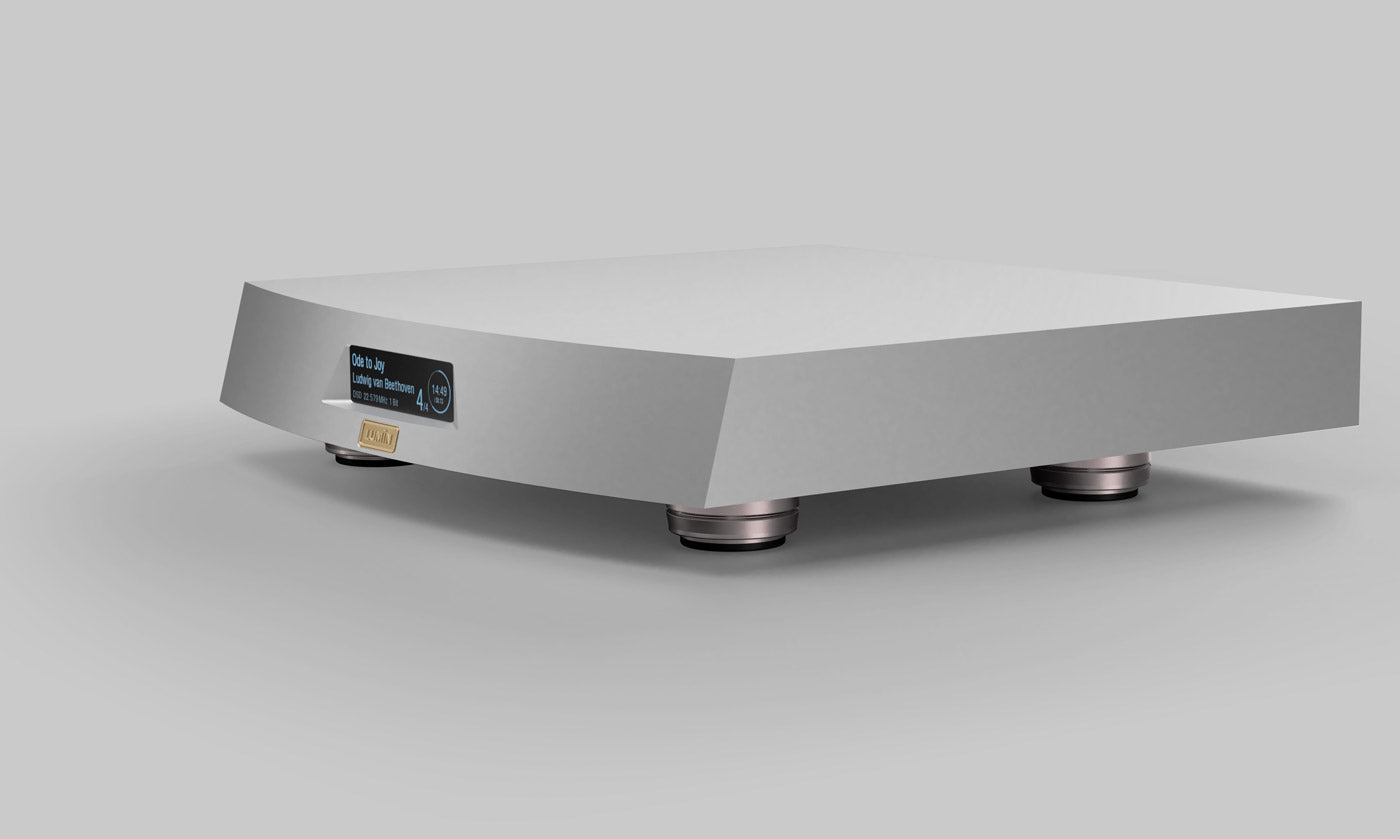

LUMIN X2 DAC & Network Music Player

$18,000.00 USD
$18,000.00 USD
Sale Please Call 818-732-1448 To Order

A brand new flagship Network Music Player with our new DAC at the core!

  • The latest LUMIN processing architecture delivers all the latest features

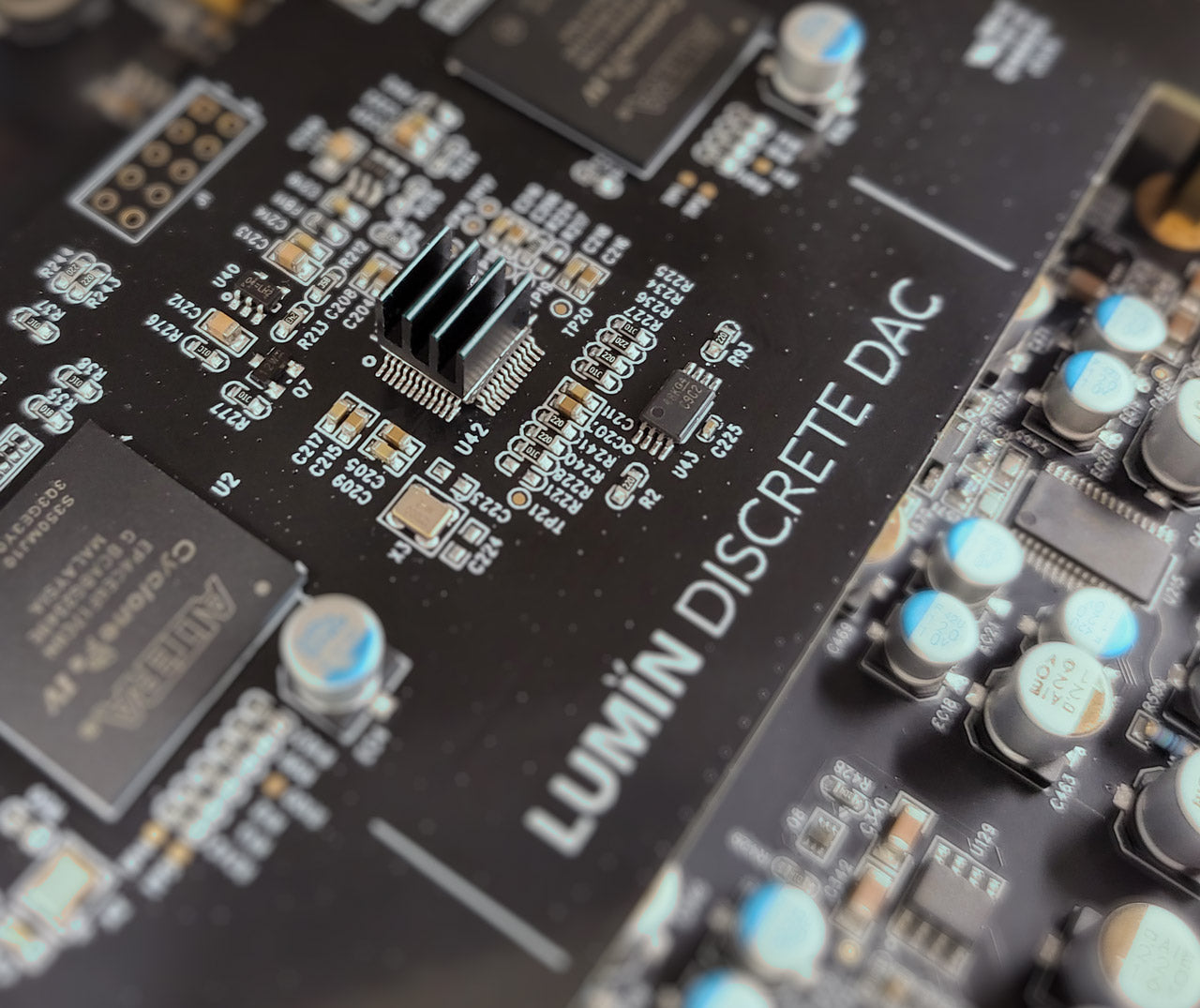

  • Custom new dual LUMIN Discrete DAC
  • All-new Output Buffer
  • Native DSD512 & 32-bit PCM768 playback
  • Femto Clock System with precision FPGA distribution
  • Dual Mono dual stage Power Supply for analogue circuitry
  • SFP socket providing Optical Network support and built-in Network Switch
  • USB Digital Audio Output supports Native DSD512
  • PCM & DSD upsampling up to DSD256
  • Leedh Processing Lossless volume control

Latest processing system

  • The first LUMIN flagship to feature our fastest processor
  • First launched in 2022, the latest architecture provides a new foundation for LUMIN
  • Increased processing power and storage capacity provide greater resampling flexibility, audio processing performance and future-proofing.
  • Up/down sampling up to DSD256

External dual-toroidal linear power supply

    • Solid billet construction using all the same techniques as the main chassis
    • Thick aluminium walls provide even more shielding
    • Separate digital and analogue circuitry
    • Low-noise Linear Regulator
    • The highest quality components used throughout

X2 SPECIFICATION

  • DSD SUPPORT:

    • Up to DSD512 22.6MHz, 1-bit

  • PCM SUPPORT:

    • Up to 768kHz, 16–32-bit, Stereo

  • ANALOG OUTPUT STAGE:

    • LUMIN Discrete DAC
    • Fully balanced layout with high-quality components
    • Output connectors coupled with dual LUNDAHL LL7401 output transformers
    • Femto Clock System with precision FPGA distribution

  • UPSAMPLING RATES & BIT DEPTHS:

    • DSD256 upsampling option for all files
    • PCM 384kHz upsampling option for all files

  • DIGITAL OUTPUT STAGE:

    • USB:
      • Native DSD512 support
      • PCM 44.1–768kHz, 16–32-bit, Stereo
    • BNC SPDIF:
      • PCM 44.1kHz–192kHz, 16–24-bit
      • DSD (DoP, DSD over PCM) 2.8MHz, 1-bit

  • OPTICAL NETWORK:

    • Industry-standard Gigabit SFP
    • 1000Base-T Gigabit Ethernet
    • Adapter may be needed for your particular switch/cables
    • Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)

  • POWER SUPPLY:

    • External solid billet cnc dual-toroidal
    • Separate digital & analogue circuitry
    • Low-noise linear regulator
    • 9-pin Output Connector

  • PHYSICAL:

    • FINISH:

      • Black anodised aluminium (with matching PSU)
      • Raw anodised aluminium (with matching PSU)

      FEET

      • IsoAcoustics isolating feet on main chassis

      LUMIN (SOLID ALUMINIUM CHASSIS):

      • 350mm (W), 345mm (D), 77mm (H), 8kg

    • PSU (SOLID ALUMINIUM CHASSIS):

      • 106mm (W), 334mm (D), 77mm (H), 4kg
