Lyngdorf

Lyngdorf MP-60 2.1 Ultimate Performance Surround Sound Processor

Regular price $14,999.00 USD
Regular price Sale price $14,999.00 USD
Sale Please Call 818-732-1448 To Order

THE ULTIMATE PERFORMANCE

The MP-60 2.1 surround sound processor from Lyngdorf Audio is built for the demanding audiophile, who requires the ultimate performance in immersive formats as well as stereo.

The MP-60 is developed at the group headquarter in Skive, Denmark and it is equipped with all the advanced technologies for which Lyngdorf Audio is known, including the renowned room correction system, RoomPerfect™ and the unsurpassed qualities in digital signal processing.

What is the 2.1 difference? V 2.1 has the latest HDMI board supporting 8K state-of-the-art HDMI processing

The MP-60 2.1 processor is intuitive to use and offers extraordinarily easy installation. It decodes up to 16 native audio channels which can be mapped out intelligently through the sleek website interface. The MP-60 2.1 offers full support of the latest immersive surround formats including Dolby Atmos®, DTS:X® Pro and AURO-3D®.

With five HDMI inputs and two outputs, this new masterpiece from Lyngdorf Audio now supports HDMI 2.1 including features eARC, Dynamic Lip-Sync and QMS (Quick Media Switching) as well as the latest decoding and post-processing formats. The MP-60 2.1 supports 40 Gbps fixed rate link (FRL) and 18 Gbps transition minimized differential signaling (TMDS) video rates. The MP-60 2.1 supports Variable refresh rate (VRR), Quick Frame Transport (or Fast Vactive), and auto low latency mode (ALLM) support and high dynamic range (HDR) metadata passthrough for HDMI dynamic HDR, HDR10+, and Dolby Vision™.

eARC will allow for a full Dolby Atmos audio bitstream being returned to the processor from the television, ensuring full audio quality from the TV’s built-in media players.

MEDIA PLAYER

The MP-60 features a built-in media player, which connects to Spotify and Roon as well as internet radio. Through a cabled network or USB connector, you can access your library of music and enjoy it in stereo or as up-mixed to a surround sound format.

FLEXIBILITY IN INSTALLATION

With its visual speaker layout, the setup menu will enable everybody to have the optimal processor setup for their speaker system, and with the features like the HDBaseT™ connector, you can easily connect to a projector in the ceiling with uncompressed full HD digital video, audio.
3 optional modules allow for digital connection to DCI (Digital Cinema Initiatives) movie servers, an AES67 compliant audio system or digitally to active loudspeakers or amplifiers with digital input.

Multiple control options will allow you to integrate the MP-60 with control systems, IR sensors, and triggers, whereas the IP-control or the RF remote will offer a direct control of all features.

TECHNICAL DETAILS

Decoding16 decoding/upmixing channels, Dolby Atmos®, DTS:X Pro (14 channels), AURO-3D® (14 channels), all legacy codecs
Post processing options: Dolby Surround, AURO-MATIC®, DTS Neural:X

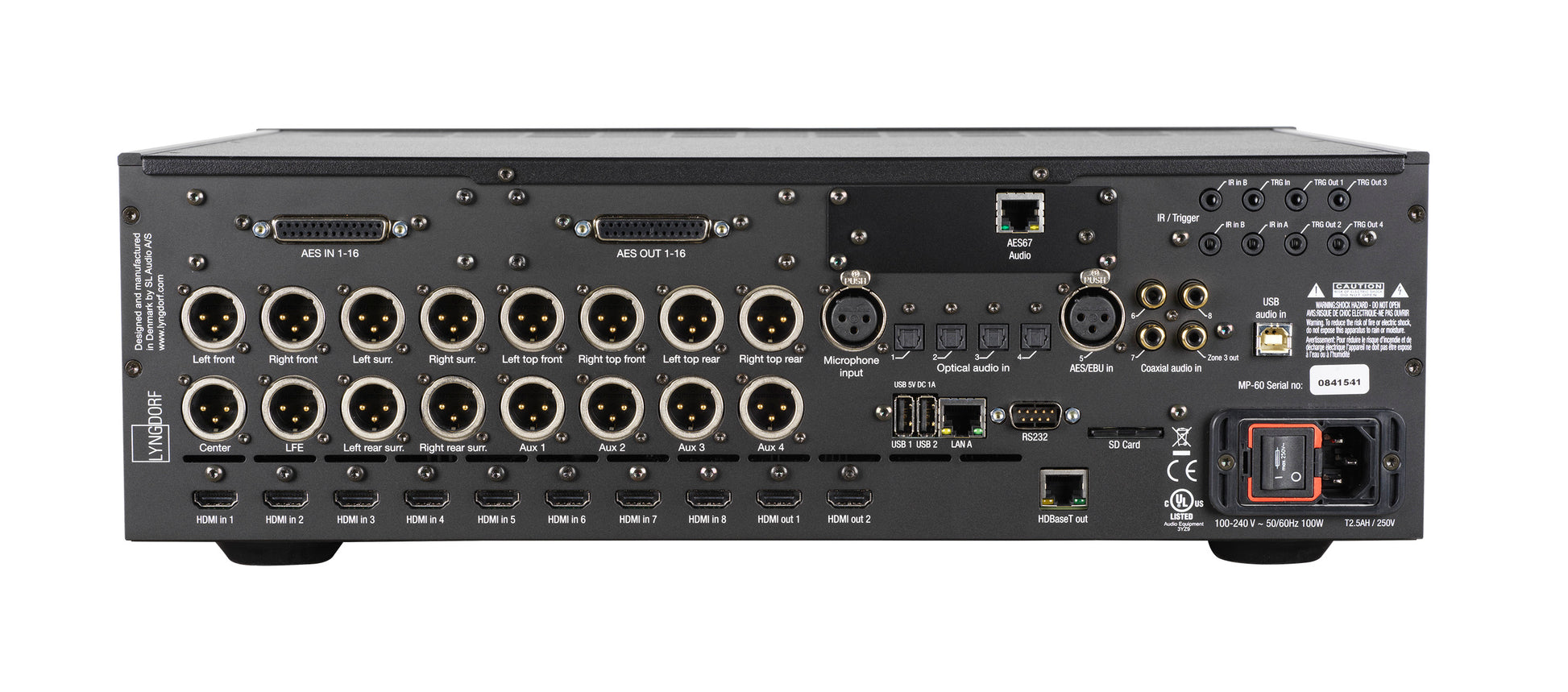

Audio inputs: 5 x HDMI™, 1 x HDMI™ eARC (≤192kHz/24bit), 1 x AES/EBU S/P-DIF input (≤192kHz/24bit), 3 x S/P-DIF coaxial inputs (≤192kHz/24bit), 4 x S/P-DIF optical inputs (≤96Hz/24bit), 1 x USB audio input (≤192kHz/32bit),
1 x microphone input (XLR) for RoomPerfect™
Audio outputs: 16 x XLR analog outputs (5.0 Vrms), 1 x SPDIF coax digital ZONE output (Fix 96kHz/24bit)
Audio specifications: Frequency response: ±0,5dB from 20 to 20,000 Hz, Total harmonic distortion: 0.005% max from 20 to 20,000 Hz
EQ: RoomPerfect, Subwoofer level assistant, 32 x adjustable voicings holding ≤8 shelving, high/low pass or parametric filters with adjustable gain and Q
Media player: Internet radio (vTuner), Airplay, Spotify Connect, Roon Ready, DLNA Support of FAT32 based media storage (uPnP)
Video inputs: 5 x HDMITM (2.1 – HDCP 2.3), accepts 8k30 RGB/YCbCr 4:4:4 10-bit video, 8k60 YCbCr 4:2:0 10-bit high definition video, and 4k120 4:4:4 10-bit high frame rate video, Variable refresh rate (VRR), fast vactive (FVA), and auto low latency mode (ALLM) support. accepts HDR, Dolby VisionTM and HLG
Video outputs: 2 x HDMI (HDCP 2.3)
Video scaling: Upscaling of all video to 4K ultra high definition, no downscaling of 4K video
Control interfaces: 1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB A connectors, 1 x SD card slot , (Backup – storage for system software and settings)
Accessories included: RoomPerfect microphone, Microphone stand, Microphone cable, RF remote control
Optional module: 16 channel DCI-compliant digital AES/EBU input for movie servers (supports up to 32bit/192kHz), 16 channel digital AES/EBU output module (always 24bit, 48kHz or 96kHz Selectable), 16 channel AES67 digital input/output module (supports up to 32bit/192kHz input, output is always 24bit/48kHz)

Remote control: Infrared/RF
Placement options:
 Rack mount and freestanding
Dimensions (H x W x D): 14.7 x 45.0 x 37.0 cm, 5.8 x 17.7 x 14.6 in
Weight: 9 kg / 19 lbs
