Instant Ship: Lyngdorf TDAI-1120 Integrated Streamer

Lyngdorf TDAI-1120 provides the ultimate in flexibility. Its small design footprint allows it to be easily placed anywhere in the home, and the vast feature set offers a great variety of streaming options. All the user-friendly features you could ask for and paired with Lyngdorf Audio’s world-famous digital amplification technology and patented RoomPerfect™ room correction for the ultimate listening experience.

New world of streaming

Connect the TDAI-1120 to your WiFi and enjoy all the integrated streaming services.

• Chromecast built-in

• Spotify® Connect

• Roon Ready

• AirPlay2

• Bluetooth connectivity

• Internet Radio (vTuner)

• Network/local file playback

The TDAI-1120 accepts all your media interfaces and holds itself an advanced media player of the highest quality. Through the network or via the USB connectors, you can access your library of music through the DLNA/ UPnP enabled player. All can intuitively be controlled with your smart phone, tablet, or computer.

The ultimate experience

The TDAI-1120 ships complete with RoomPerfect™, providing the ultimate listening experience. With RoomPerfect™, the TDAI-1120 delivers a perfect musical experience in all living rooms. Without the need for extensive acoustic treatment, you get a sound system with optimal frequency response, seamless level alignment, and bass management that perfectly integrates the speakers and subwoofers.

Control the TDAI-1120 with an app

The Lyngdorf Remote Application automatically discovers the TDAI-1120 connected to your local network, and you will be able to adjust all the basic functions like input selection and volume level from your handheld device. The built-in media player can be controlled directly, and you can access music files stored on pen drives connected to the Lyngdorf TDAI-1120 as well as search all files stored on your local hard drives. Swiping left and right gives you access to cover art as well as informing you of the signal resolution.

The Lyngdorf Remote Application is available for free download from both IOS and Android.

Specifications

Description: 2-channel streaming amplifier

Power rating: 2 x 120 W RMS @ 4Ohm / 2 x 60 W RMS @ 8Ohm

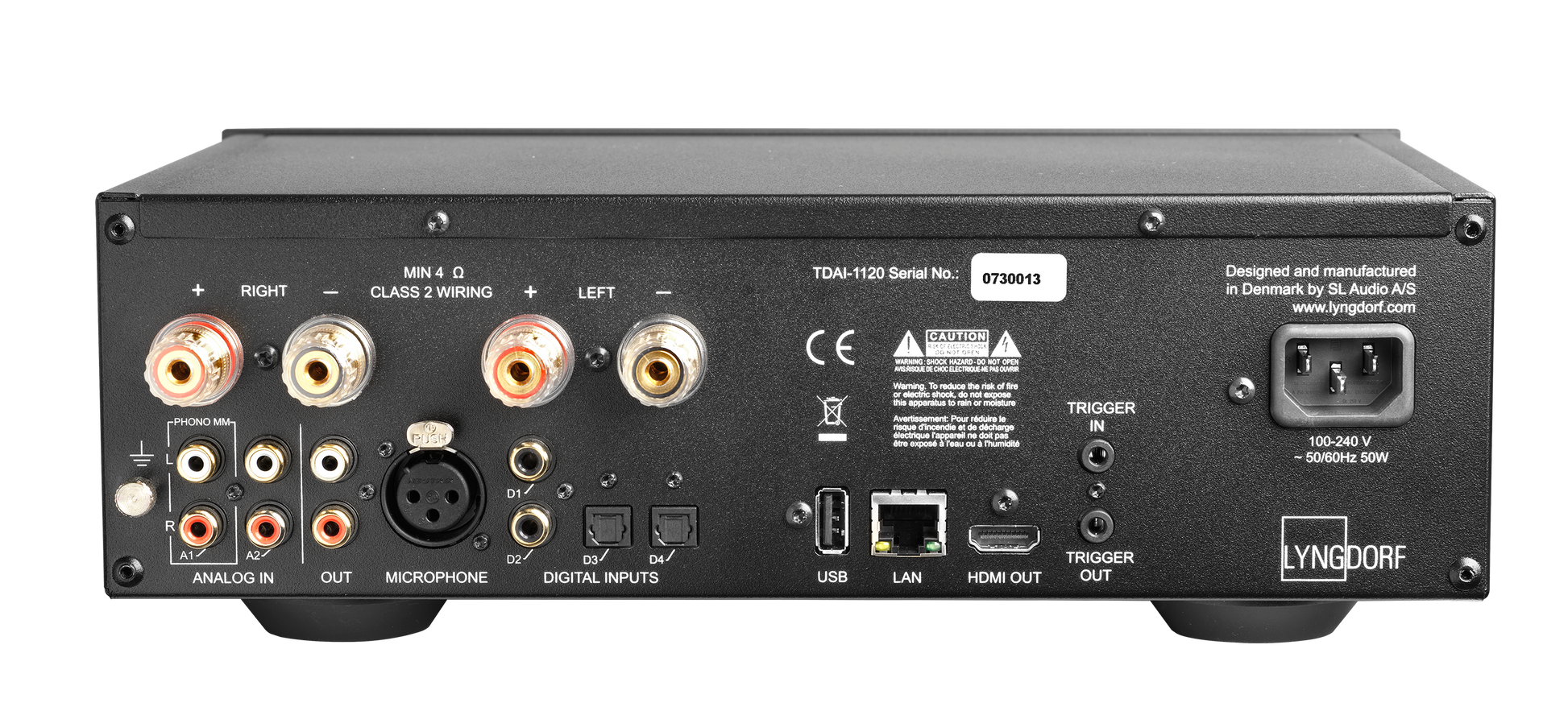

Digital inputs (Asynchronous): 2 x Coaxial (≤192kHz/24bit) 2 x Optical (≤96 kHz/24bit) 1 x HDMI (TV ARC)

Analog inputs: 1 x Phono Single Ended RCA (RIAA / 47kOhm 100pF), 1 x Analog Single Ended RCA (Max level: 4.0V = 0dBFS) 1 x Microphone input (XLR) for RoomPerfect™ calibration

Analog output: 1 x Stereo Analog RCA (75ohm-Max output level 4 Vrms)

Audio specifications: Frequency Response: ±0,5dB from 20 to 20,000 Hz, Total Harmonic Distortion: 0.05% max from 20 to 20,000 Hz, THD-N 1w/8ohm 0,04%, THD-N 1w/4ohm 0,04%

Media player: Internet Radio (vTuner), Spotify Connect, Roon ready, Chromecast built-in, DLNA Support (uPnP), AirPlay2, Bluetooth, Local file playback (USB)

Wireless connections: Bluetooth connectivity, Wi-Fi (802.11 n/ac)

Control interfaces: Intuitive input selector, Web-interface for setup and media player, Remote application for IOS and Android, IP control, CEC (HDMI), 1 x trigger input, 1 x trigger output, 1 x RJ45 Ethernet LAN connector, 1 x USB connectors (Type A)

Accessories included: RoomPerfect™ microphone, Microphone stand, Microphone cable, Optional accessory: IR remote control, rack mounting kit

Placement options: Freestanding

Dimensions (H x W x D): 10.1 x 30 x 26 cm (including connectors), 3.98 x 11.8 x 10.3 inches (including connectors)

Weight: 8 kg / 17.6 lb

Finish: Matte black
