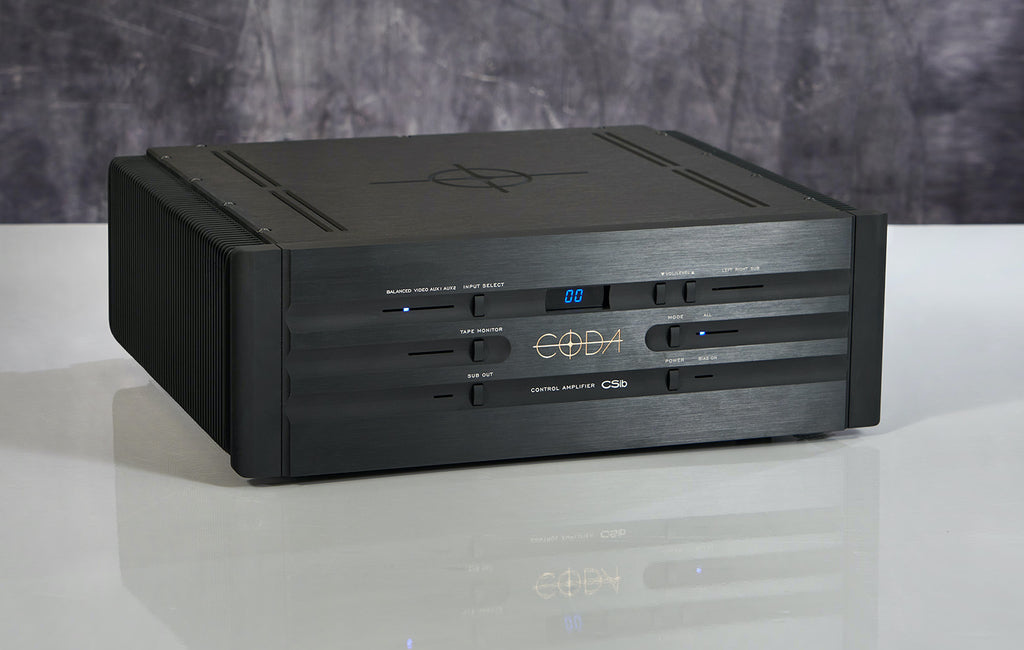

Instant Ship: Coda CSiB Integrated Amplifier

The CODA CSiB is a high-performance integrated amplifier combining a precision analog preamplifier with CODA's advanced Class A/AB power amplification in a single chassis. Designed and manufactured in the USA, the CSiB delivers the performance and flexibility of separate components while simplifying system configuration.

Available in three power configurations, the CSiB offers output ranging from 150 to 400 watts per channel into 8 ohms, with power doubling into 4-ohm loads. Its Class A/AB output stage provides substantial current capability, while CODA's proprietary Precision Bias design combines the refinement of Class A operation with the power delivery of Class AB amplification.

The preamplifier section is derived from CODA's acclaimed 07x preamplifier design and incorporates a Burr-Brown digitally controlled precision analog attenuator. Balanced and unbalanced inputs, remote operation, processor and tape monitor loops, and a dedicated stereo subwoofer output provide flexibility for a wide range of high-performance audio systems.

For listeners seeking the simplicity of an integrated amplifier without compromising on sophisticated circuit design, power delivery, or system flexibility, the CODA CSiB is an exceptionally capable solution.

• Rated Power

  V3: 400 watts @ 8Ω

  800 watts @ 4Ω

  Class A to ~8W @ 8Ω

  V2: 250 Watts @ 8Ω

  500 Watts @ 4Ω

  Class A to ~12W @ 8Ω

  V1: 150 Watts @ 8Ω

  300 Watts @ 4Ω

  Class A to ~18W @ 8Ω

  Maximum Current: 130 Amperes peak

  Noise: -130dB referenced to rated output

  Input Impedance: 50kΩ unbalanced/1k balanced

  Output Impedance .04Ω from 20Hz to 20kHz

  Frequency Response: DC to -3dB @ 100kHz

  Distortion: <.04% from 10 Hz to 20kHz @ 400 Watts

  Gain: 26dB

  POWER SUPPLY

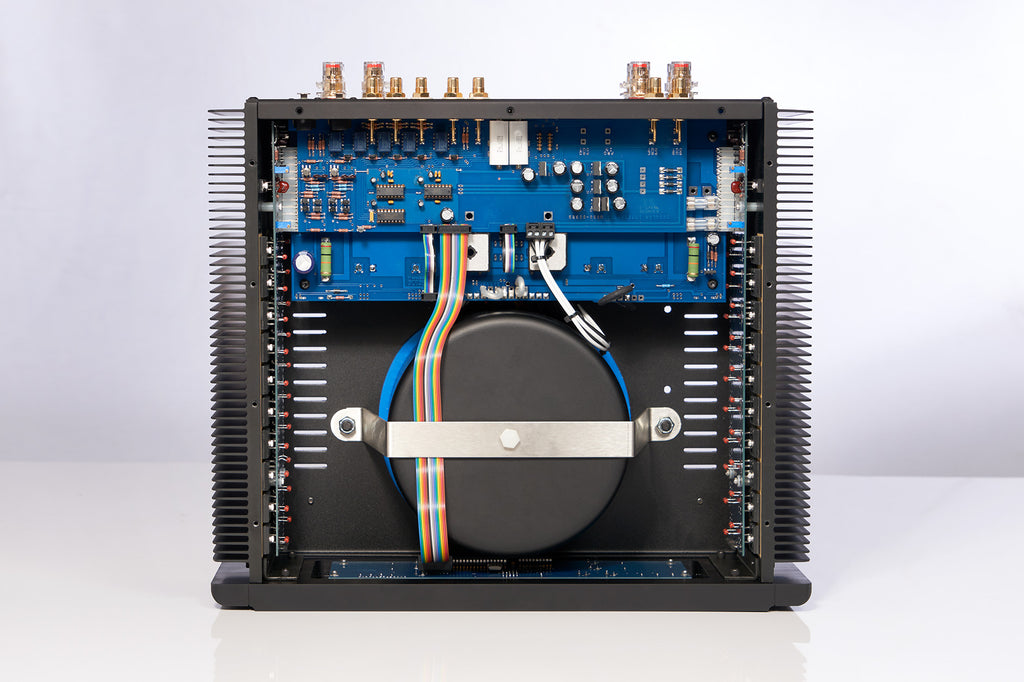

  Transformer Type: Multi-tap, multi-winding toroidal 80,000 μF

  Power Filtering: 80,000 μF

  Transformer Rating: 3,000VA

  45 watts @ Standby (bias on)

  DIMENSIONS

  Height: 5.5” Faceplate, 6.0” Overall

  Width: 17.0” Faceplate, 16.75” Chassis

  Depth: 14” Overall

  Weight: 55 lbs.

  Damping factor of 200

  State-of-the-art, remote-controlled “separates” performance with the added benefit of balanced audio inputs for even greater audio quality.

  Preamplifier section derived from the Coda 07x design, utilizing the Burr-Brown digitally controlled precision analog attenuator.

  Coda Ts Precision Bias Class A/AB amplifier design with discrete FET differential input stage, MOSFET voltage gain DC coupled to an ultra wideband bipolar output stage.

  Low overall feedback

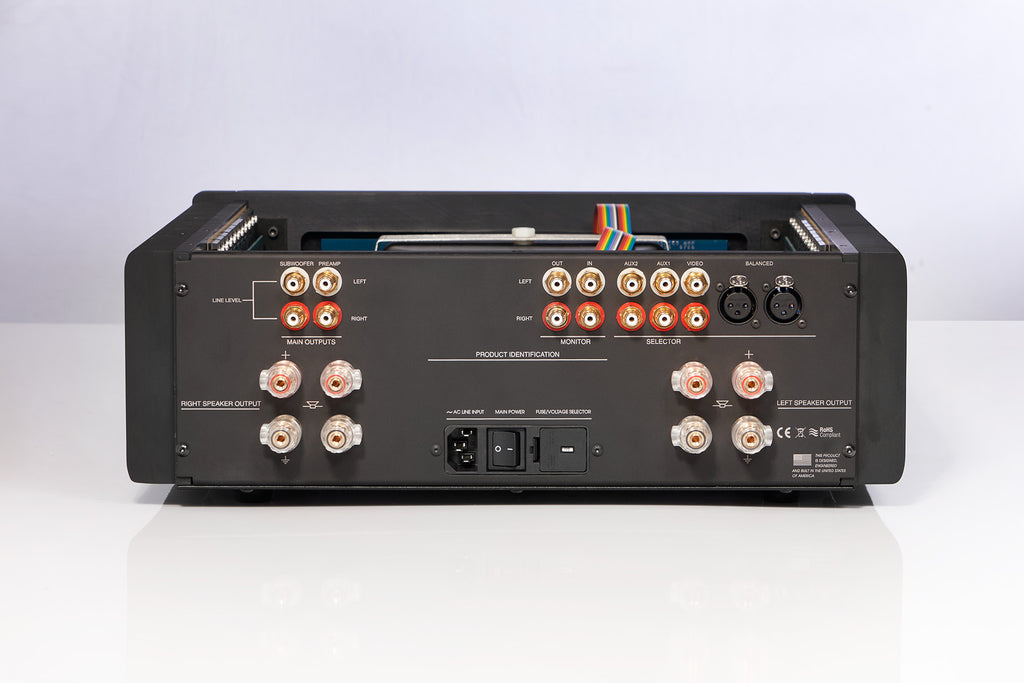

  Separate tape monitor and processor loops

  Stereo subwoofer output

  Wideband, fully-regulated power supply with EMI and RFI line filtering

  Double-sided gold plated circuit

  All anodized chassis 10 year warranty / 5 year transferable

  Designed, manufactured and assembled in the USA
