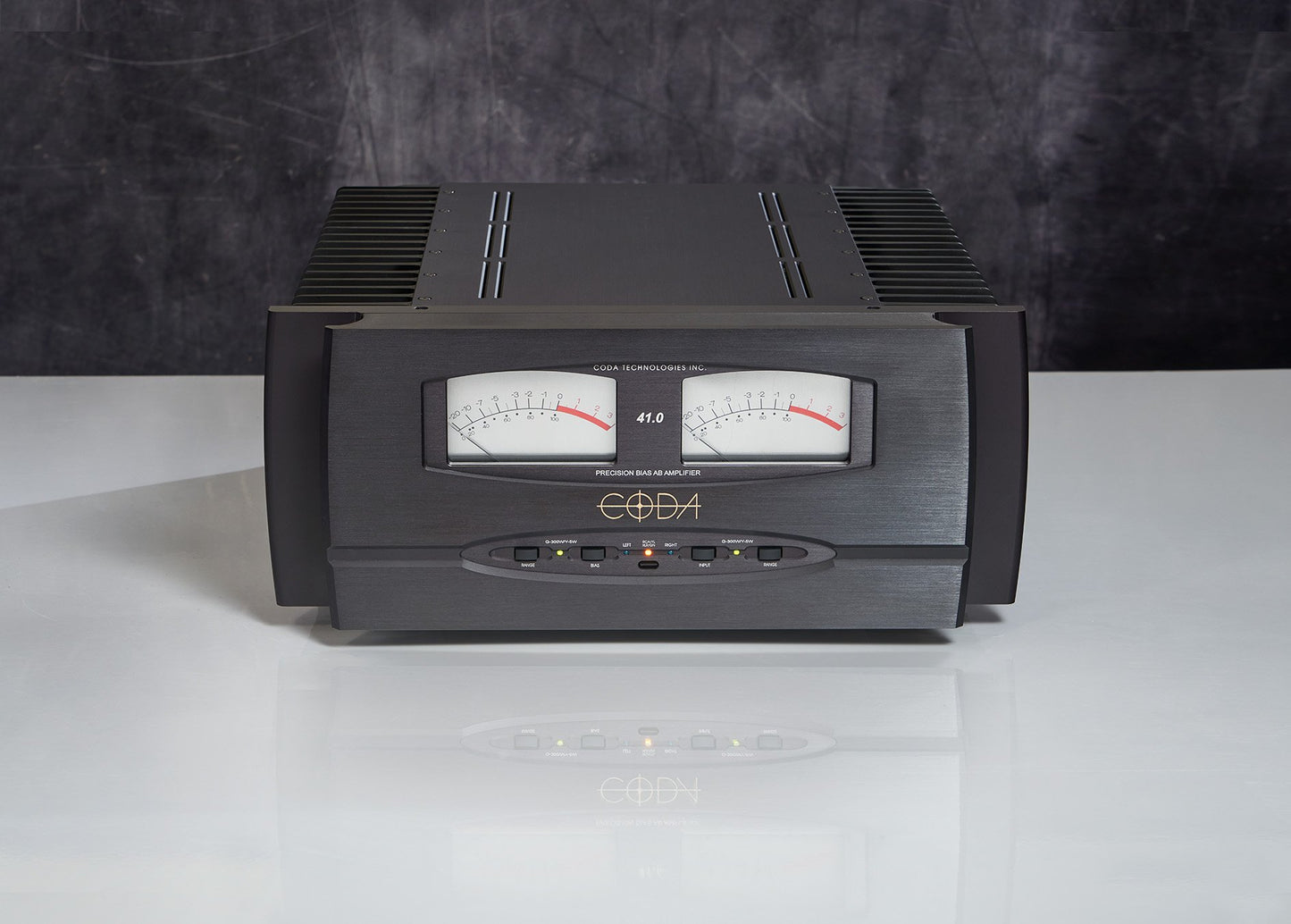

Coda 41.0 Stereo Amplifier

STEREO

Rated Power: 400 Watts class AB @ 8 Ohms, 800 Watts class AB @ 4 Ohms

Frequency Response: DC to -3dB @ 100kHz

Distortion: < .02 percent from 10Hz to 20kHz @ rated power

Gain: 26dB

Maximum Current: >100 Amperes peak per channel

Noise: -120dB referenced to rated output

Input Impedance: 50k Ohms unbalanced/10k Ohms balanced

Output Impedance: .03 Ohms from 20Hz to 20kHz

BRIDGED MONO

Rated Power: 1600 Watts class AB @ 8 Ohms , 3000 Watts class AB @ 4 Ohms

Frequency Response: DC to -3dB @ 100kHz

Distortion: < .02 percent from 10 Hz to 20kHz @ rated power

Gain: 32dB Maximum Current: >100 Amperes peak

Noise: -130dB referenced to rated output

Input Impedance: N/A unbalanced/10k Ohms balanced

Output Impedance: .06 Ohms from 20Hz to 20kHz

POWER SUPPLY

Transformer Type: Multi-tap, multi-winding toroidal

Transformer Rating: 3kVA

Power Filtering: 280,000 F

DIMENSIONS

Height: 7" Faceplate, 7.75" Overall

Width: 18” Overall Depth: 19" Overall

Weight: 110 lbs., 115 lbs. Shipping

Power requirement: 1K Watts maximum at rated power
