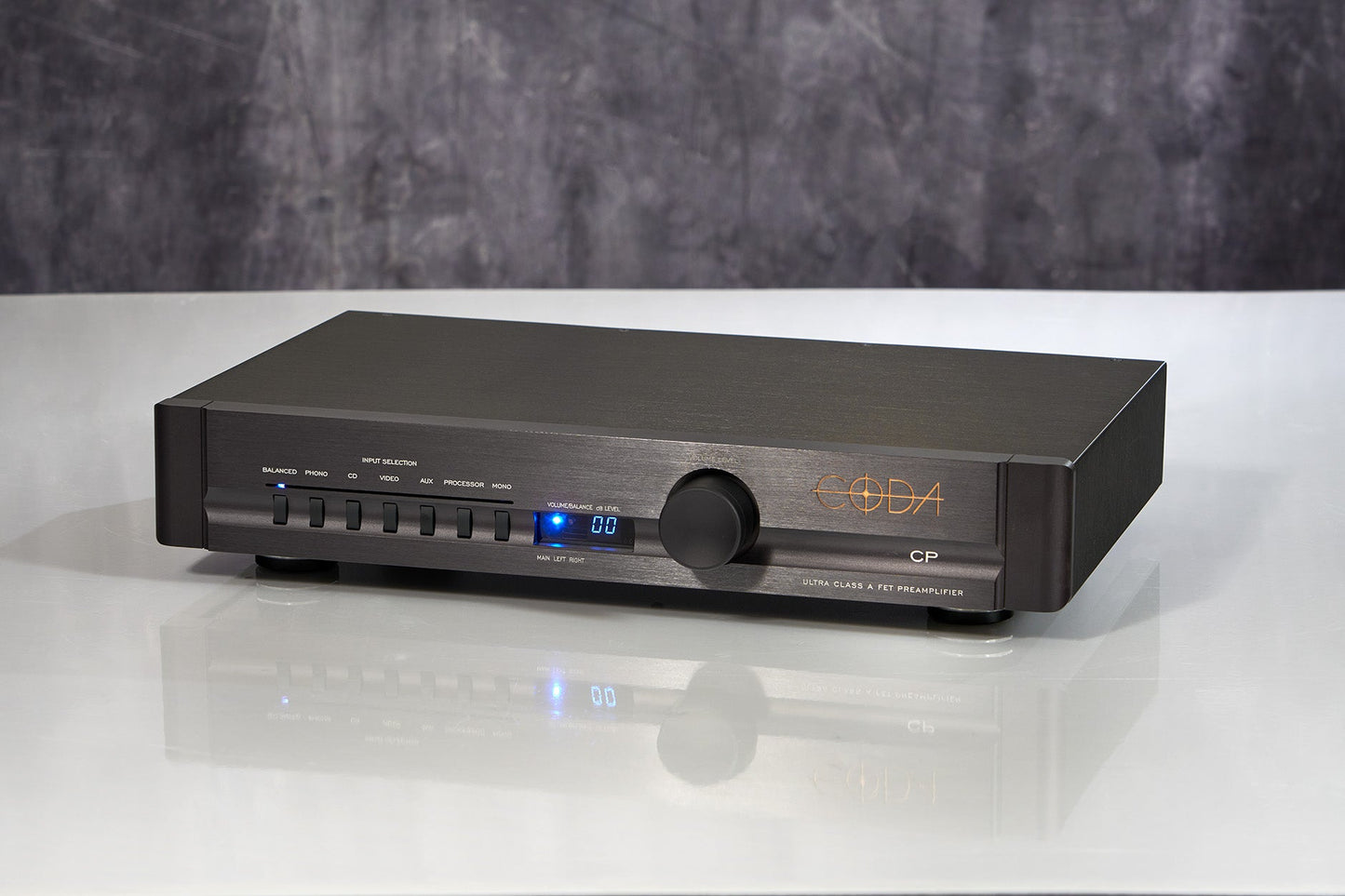

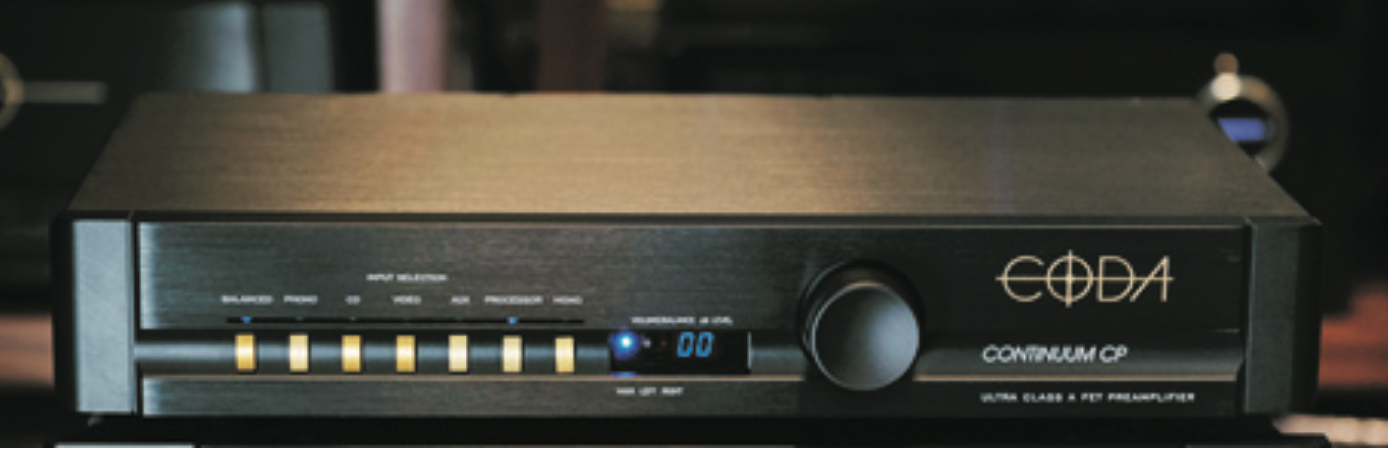

Coda CB Preamplifier

• True state-of-the-art remote controlled performance in an affordable, hand-crafted chassis
• Discrete Class A MOSFET Gain Stage for smoother, more detailed sound
• Independent variable gain adjustment for each input
• No overall feedback

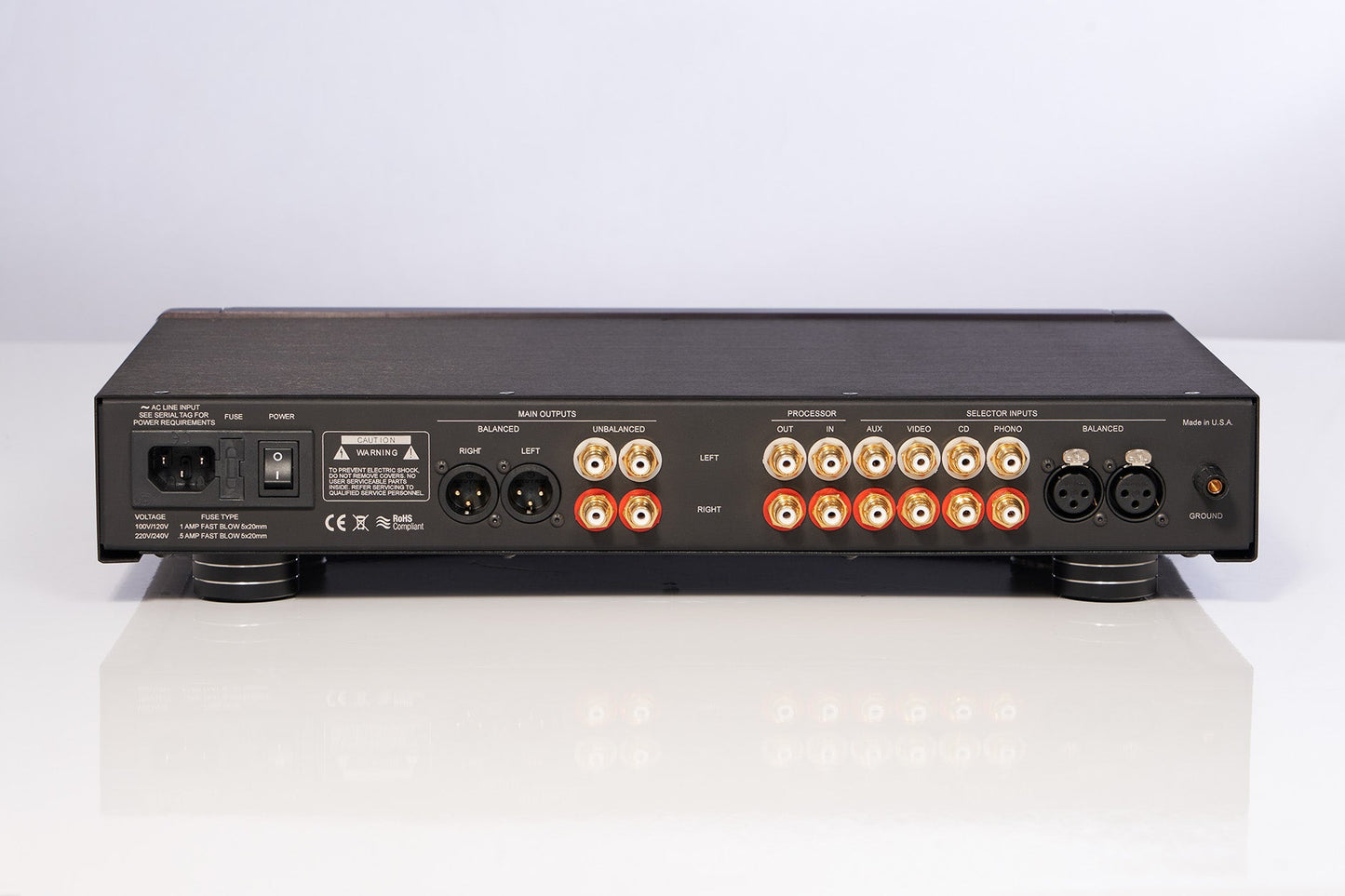

• One balanced, and four unbalanced inputs
• Balanced and unbalanced outputs
• Separate processor loop (unbalanced)

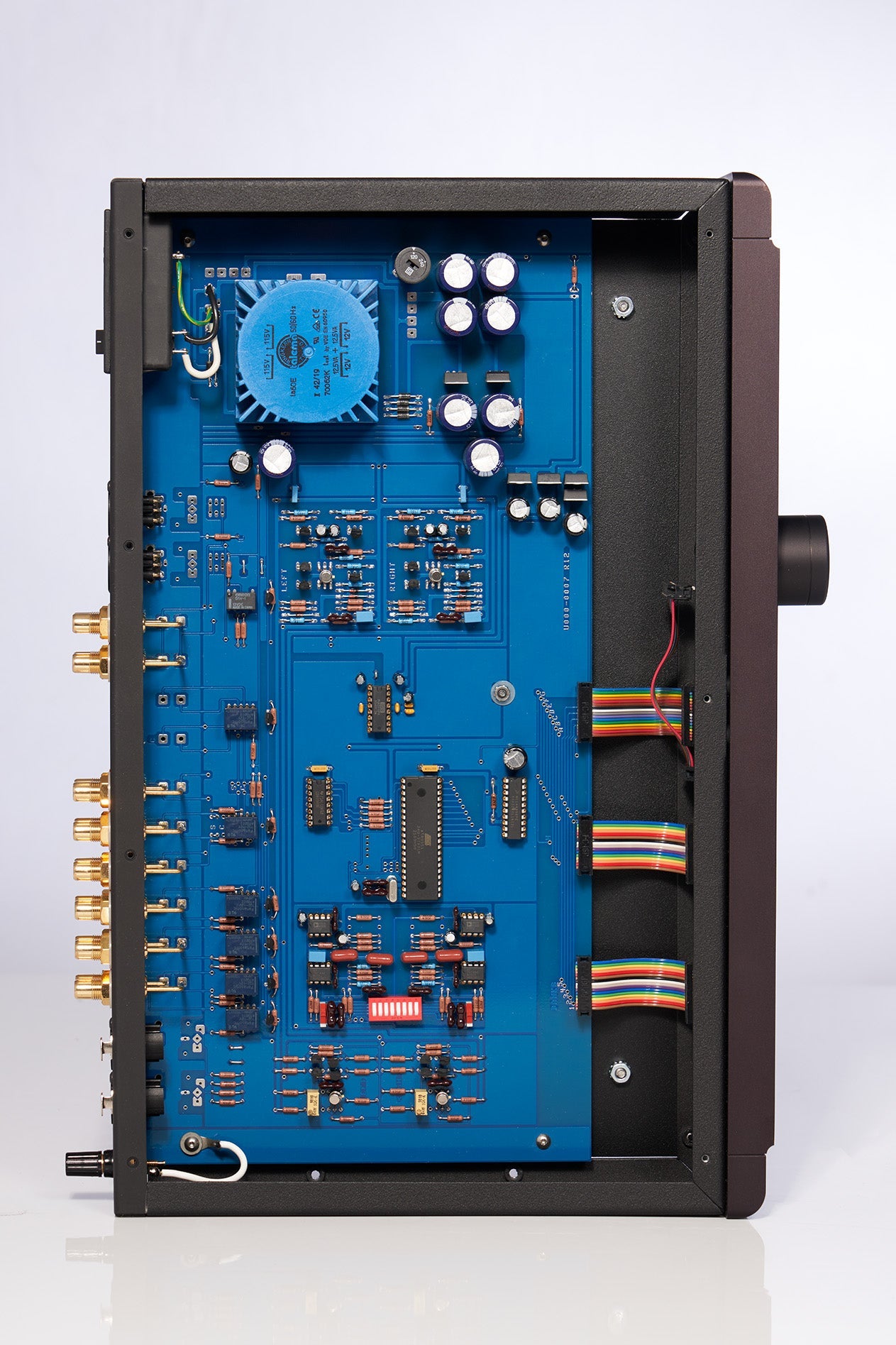

• SMOBC (solder mask over bare copper) FR-4 glass epoxy printed circuit boards
• Wideband, fully-regulated power supply with EMI and RFI line filtering
• 10 year warranty / 5 year transferable
• Designed, manufactured and assembled in the USA

Frequency Response: 5Hz to -3dB @ 200kHz

Distortion: <.02% from 10Hz to 40kHz, 6V peak into 600 Ohms or higher, shunted by 1000pF or less

Gain: 12dB, variable to 30dB

Maximum Current: 10V peak

Noise: <100dBA referenced to 1V

Input Impedance: 20kOhms

Output Impedance: 50 kOhms non-reactive unbalanced, 100kOhms non-reactive balanced

Crosstalk: 90dB @ 20kHz

Dimensions: 17” W x 12” D x 2.65” H

Weight : 15 lbs
