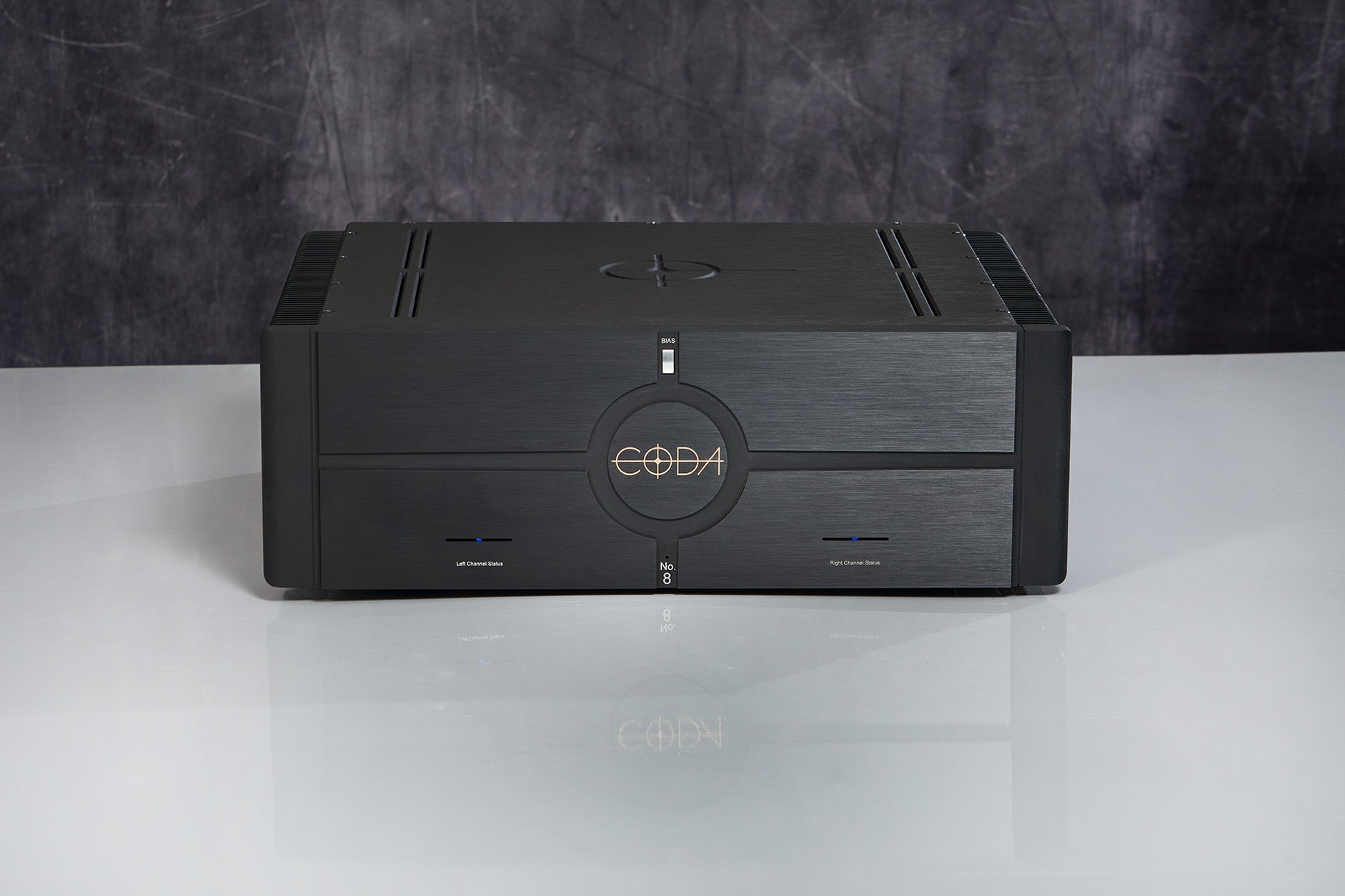

CODA Continuum No. 8 Stereo Amplifier

"The $6,200 Coda No. 8 is very musical yet very detailed in ways that make me think that a fairer comparison would be my $13,5000 Pass Labs XA-60.8 monoblocks, which is a significant accolade for the Coda No. 8, as the Pass 60.8s are mean competitors costing far more money." -Read the review, here

RATED POWER

V3: 400 Watts x 2 into 8 Ohms, 800 Watts x 2 into 4 Ohms

Class A ~8 Watts

V2: 250 Watts x 2 into 8 Ohms, 500 Watts x 2 into 4 Ohms

Class A ~12 Watts

V1: 150 Watts x 2 into 8 Ohms, 300 Watts x 2 into 4 Ohms

Class A ~18 Watts

BANDWIDTH

DC or -3dB at 5 Hz through 100kHz depending on input

DISTORTION

Less than .03% from 10Hz to 20kHz at 350 Watts both channels driven into 4 through 8 Ohms

GAIN

26dB

CURRENT CAPABILITY

150 Amperes peak

SLEW RATE

50 Volts/microsecond

INPUT IMPEDANCE

50k Ohms unbalanced/10k Ohms balanced

OUTPUT IMPEDANCE

.04 Ohms from 20Hz to 20kHz

NOISE

More than -116dB referenced to rated output

POWER SUPPLY

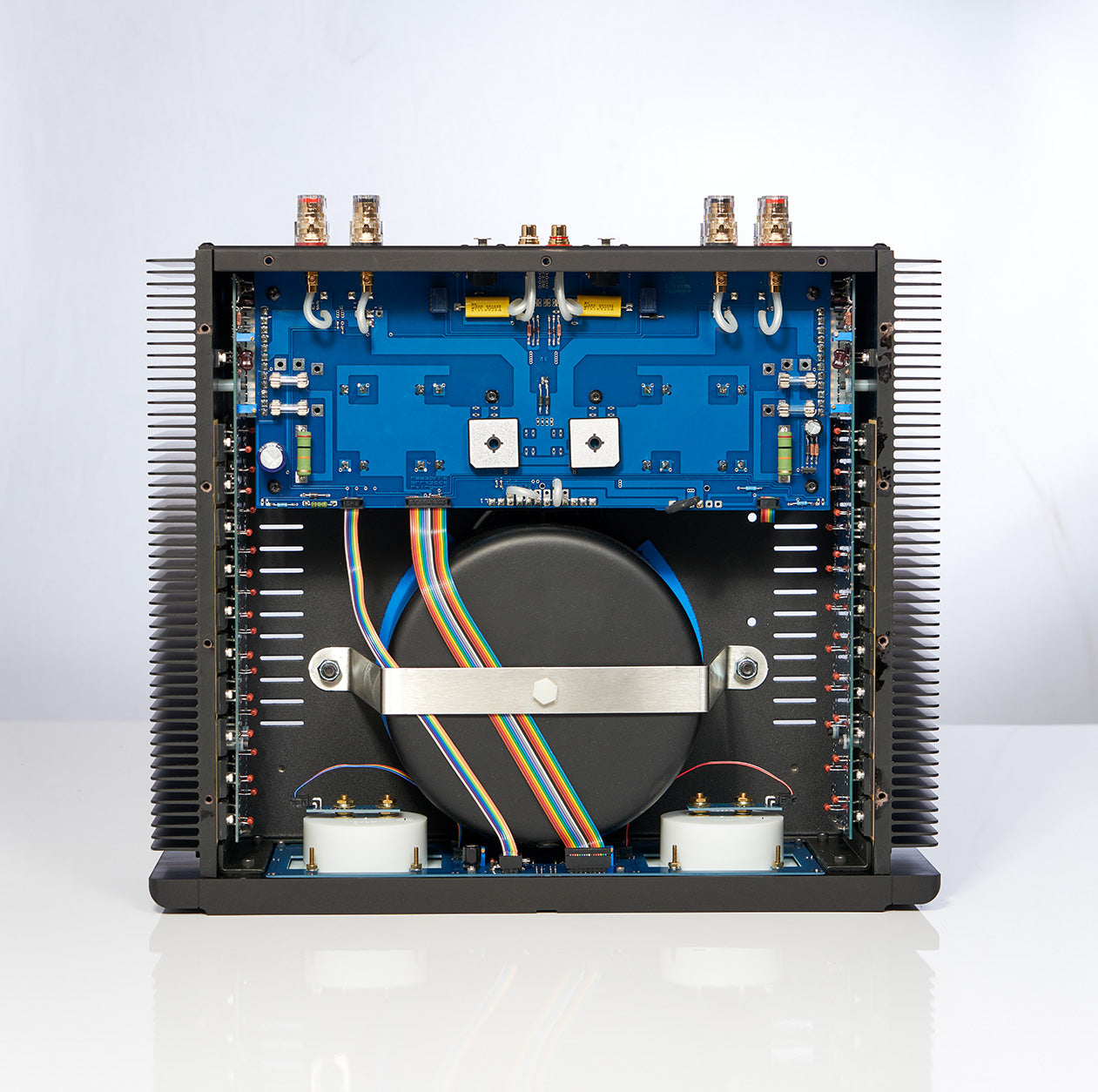

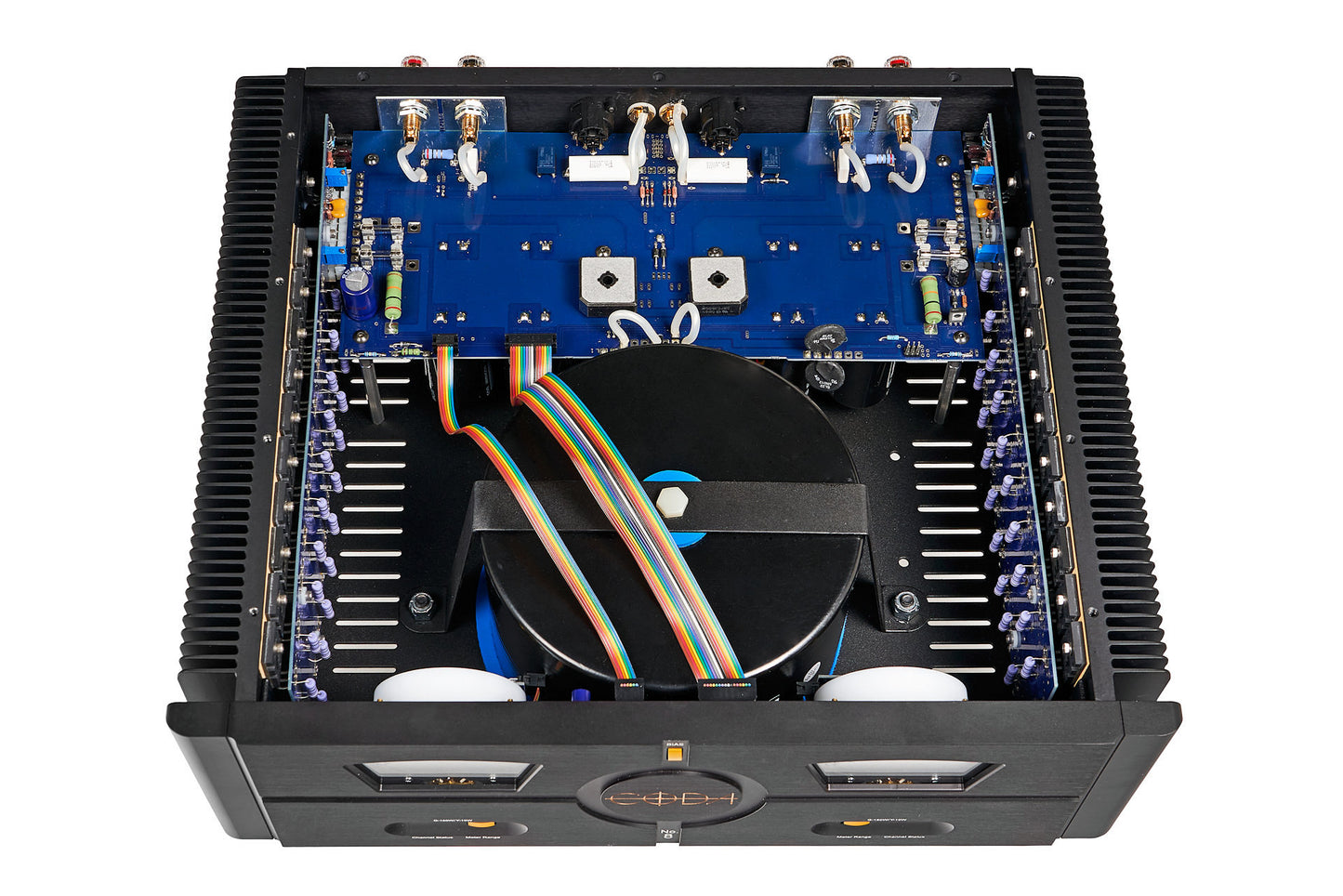

3.0kVA toroidal transformer with independent rectifiers and 80,000 uF of capacitance

DIMENSIONS

Faceplate: 17 inches wide by 5.5 inches tall

Chassis: 16.75 inches wide by 6 inches tall by 14 inches deep

WEIGHT

62 lbs

20 individual output transistors per channel, with a combined power capability of 3,600 watts and 75 amps with a bandwidth of 10 MHz

Damping factor of 200

Distortion rating- .0089 % THD

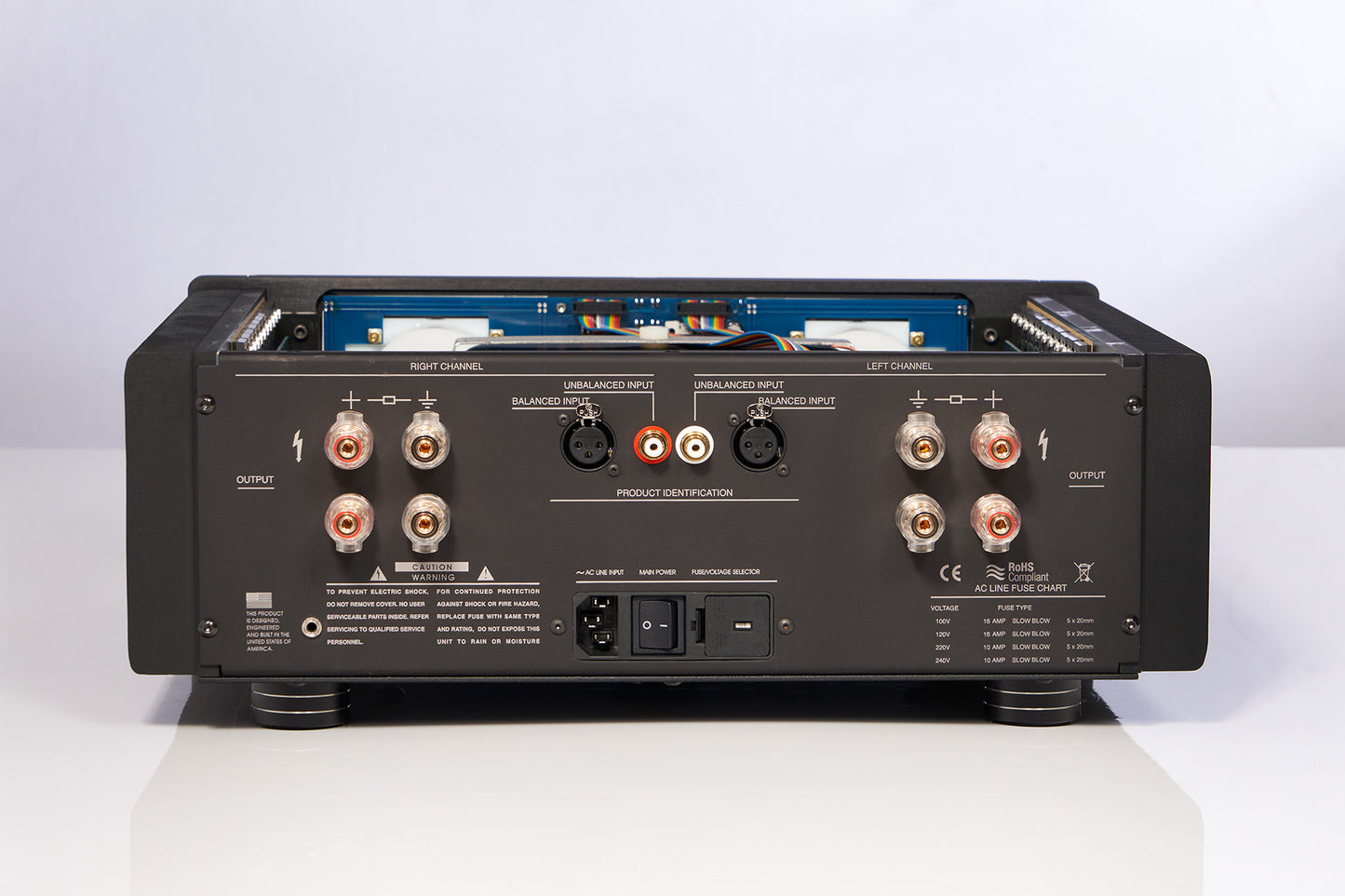

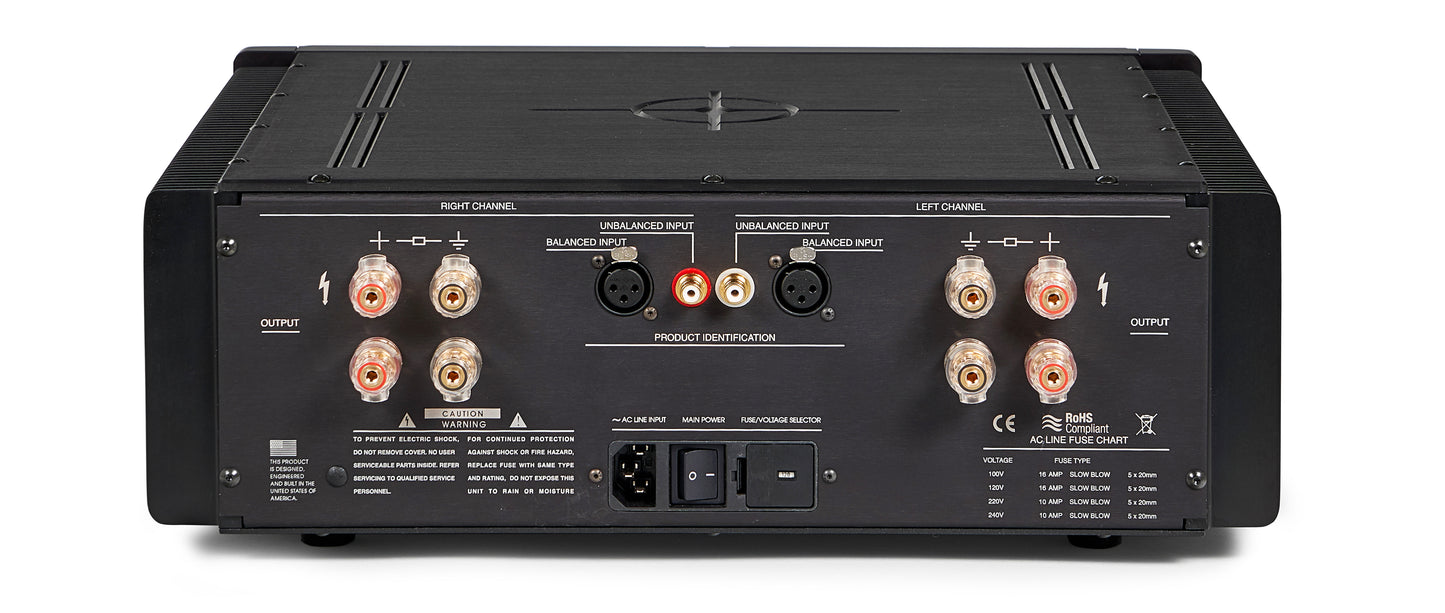

1 Pair XLR Inputs

1 Pair RCA Inputs
