Legacy Pro Audio Overhead Array

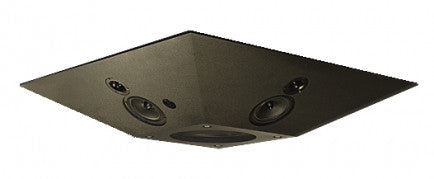

The Legacy Overhead Array is the perfect solution for clubs, theaters and auditoriums where high performance is desired and floor space is at a premium. The streamlined speaker is mounted via 4 fly-point eye bolts allowing it to blend into the ceiling while still providing the performance Legacy is known for.

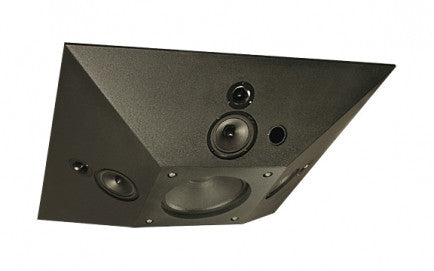

Each Overhead Array features four of the acclaimed Legacy midrange drivers and four neodymium compression tweeters that deliver clear and articulate music and speech at each of the pyramid faces. The 15" neo motor midwoofer completes this onmidirectional speaker- providing excellent low end extension. Optional internal amplification is available upon request, and the speakers can be used alone or in pairs in any space where groups of people need to experience world class sound.
Applications: | Full range overhead for commercial theaters, clubs & auditoriums |
---|---|
System Type: | 4 facets radiate sound for hemispherical coverage |

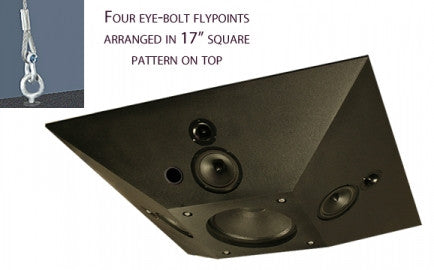

Mounting: | Suspended, 4 eye-bolts spaced 16" |
System Directivity: | Hemispherical |
Projection Distance: | 50 ft. radius |
Tweeter: | (4) 1" ring radiator |
Midrange: | (4) 6.5" carbon/pulp, cast frame |
Midwoofer: | 15" accordion edge, cast frame |
Low Frequency Alignment: | Vented 5th order |
Freq. Response (Hz, +/-3dB): | 49 - 20k with processor |
Sensitivity (Room, dB@ 2.83V): | 98 |
Crossover Freq. (Hz): | 350, 3.5k |
Inputs: | 1 pair binding posts |
Dimensions (inches) HxWxD: | 8.86x 47 x 47 (eyebolts extend 2") |
Weight: | 180 lbs |
Internal Amplification: | Passive, unless requested otherwise |
