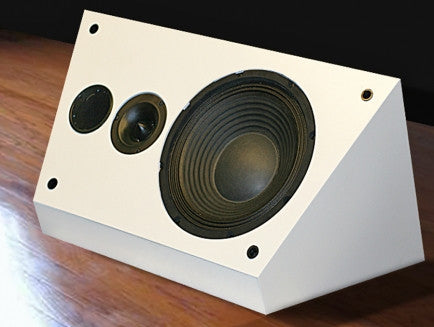

It can be ceiling mounted or used as a stage floor monitor for venues ranging from clubs to sanctuaries. Its compact size and high efficiency are the result of our premium 10” woofer and Italy’s finest ring radiator tweeter. It is available in a variety of finishes.
Product Manual | Download (3 MB) |
---|---|
Applications: | Ceiling post-mount, floor monitor, etc. |
System Type: | Vented, 2 driver, 2 way system, truncated trapezoid |

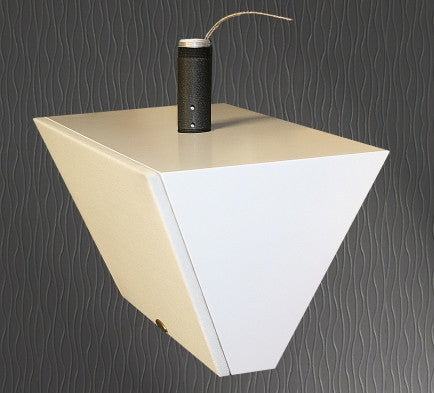

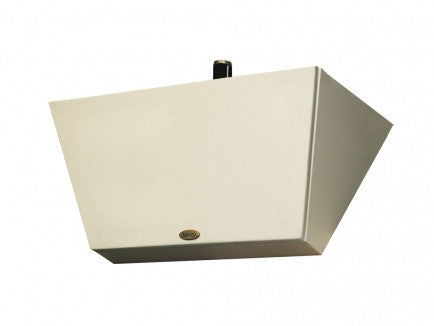

Mounting: | Uses Chief® extension, post-mount or floor |
System Directivity: | 60 degrees horizontally, 60 degrees vertically |
Projection Distance: | 30 feet |
Tweeter: | 1" ring radiator |
Midwoofer: | 10" accordion edge, carbon/pulp |
Low Frequency Alignment: | Vented |
Frequency Response (Hz, +/-3dB): | 48-20k |
Sensitivity (Room, dB @2.83V): | 94 |
Crossover Frequency (Hz): | 2.8k |
Inputs: | Binding post with terminal cup or lead out wires |
Dimensions HxWxD (inches): | 11.25 x 24 x 12 |
Weight: | 32 lbs each |
