LUMIN U1-X Transport Streamer with X1 Power Supply

After years of requests from existing high-end DAC owners, the LUMIN team have taken the finest components from the flagship S1 model and developed them specifically for digital processing and output.

Using a new dedicated LUMIN U1 processor adds upsampling and downsampling for every supported format all the way from 44.1kHz to DSD128 providing maximum DAC compatibility and optimization.

Transport-only unit based on the award-winning LUMIN S1

• 5 types of digital audio output including new USB
• Includes DSD512 22.5Mhz 1-bit playback
• PCM 44.1 768kHz 16 32-bit
• 4 exceptionally low-phase-noise crystal clock oscillators
• External dual-toroidal power supply
• Resampling to every supported format up to DSD128 and PCM384kHz
• Supports DoP (DSD over PCM) for Optical, Coaxial RCA, Coaxial BNC & AES/EUB SPDIF

Sampling rate: Up to DSD512 22.5 MHz, PCM 768 kHz, 16-32 bit, Upsampling to DSD128 and 384kHz PCM

DIGITAL Outputs
USB: DSD512 22.5 Mhz, PCM 44.1 khz 768 kHz, 16 32bit
Optical, Coaxial RCA, Coaxial BNC, AES/EBU: DSD (DoP) 2.8 MHz, PCM 44.1 kHz 192 kHz, 16 24bit

Power Supply: External dual-toroidal

Dimensions (WHD)
Unit: 13.78" x 2.4" x 13.6" 17.63 lbs
PSU: 3.94" x 2.16" x 12.4" 4.4 1bs

LUMIN X1 PSU UPGRADE SPECIFICATION:
PHYSICAL
FINISH: Raw brushed aluminum or black anodized brushed aluminum
DIMENSIONS: 106mm (W), 334mm (D), 60mm (H), 4kg

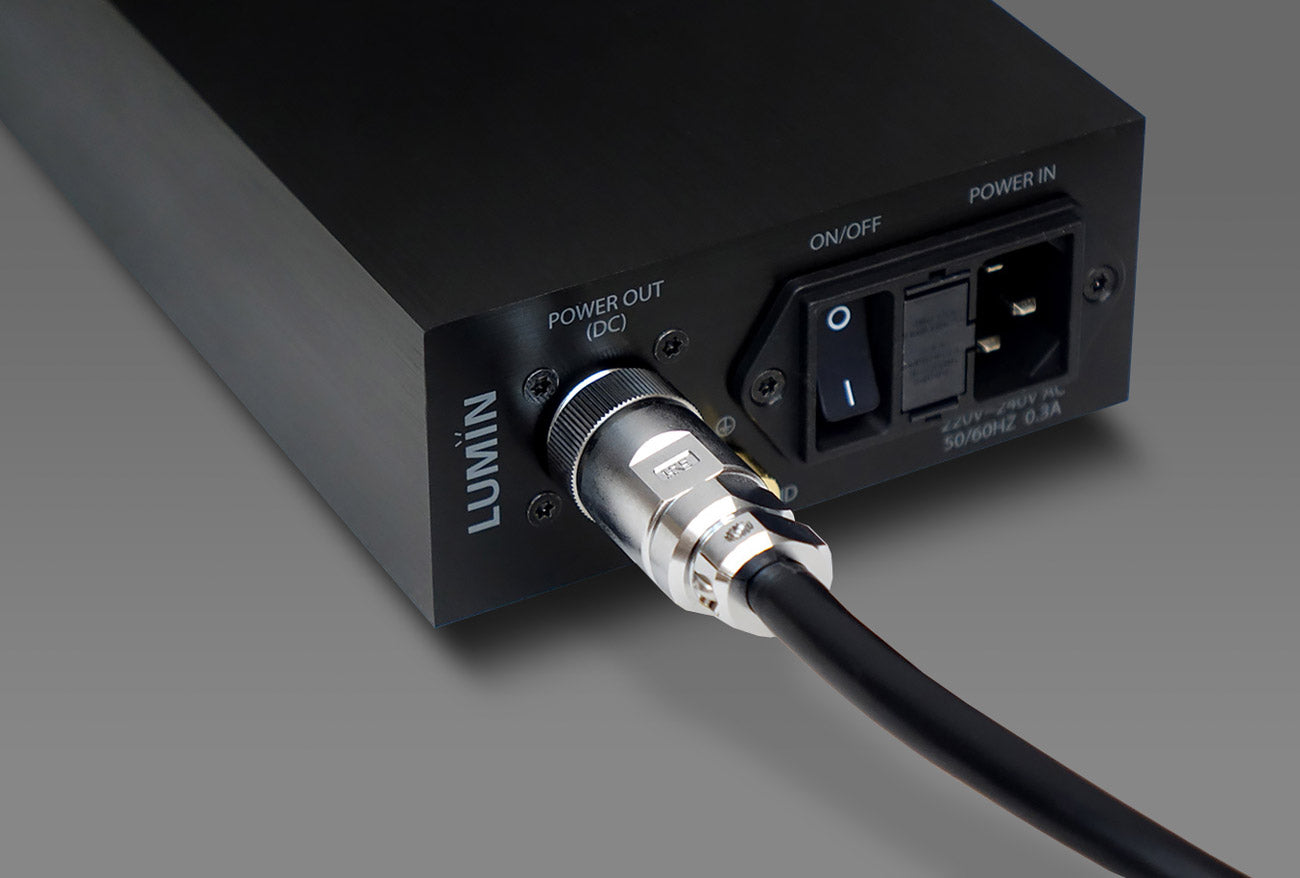

CABLE LENGTH: PSU to LUMIN DC Umbilical Cord: 1.5m
COMPATIBILITY: LUMIN S1 / A1 / T1 / U1
POWER: 110V - 120V AC 50/60HZ 0.2A or 220V - 240V AC 50/60HZ 0.2A

All the usual LUMIN refinements

• From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
• Native support for TIDAL, Qobuz, Spotify and AirPlay-compatible, giving you access to tens of millions of songs
• The unique and intuitive LUMIN App described as "the most convenient interface in existence" by Tinman

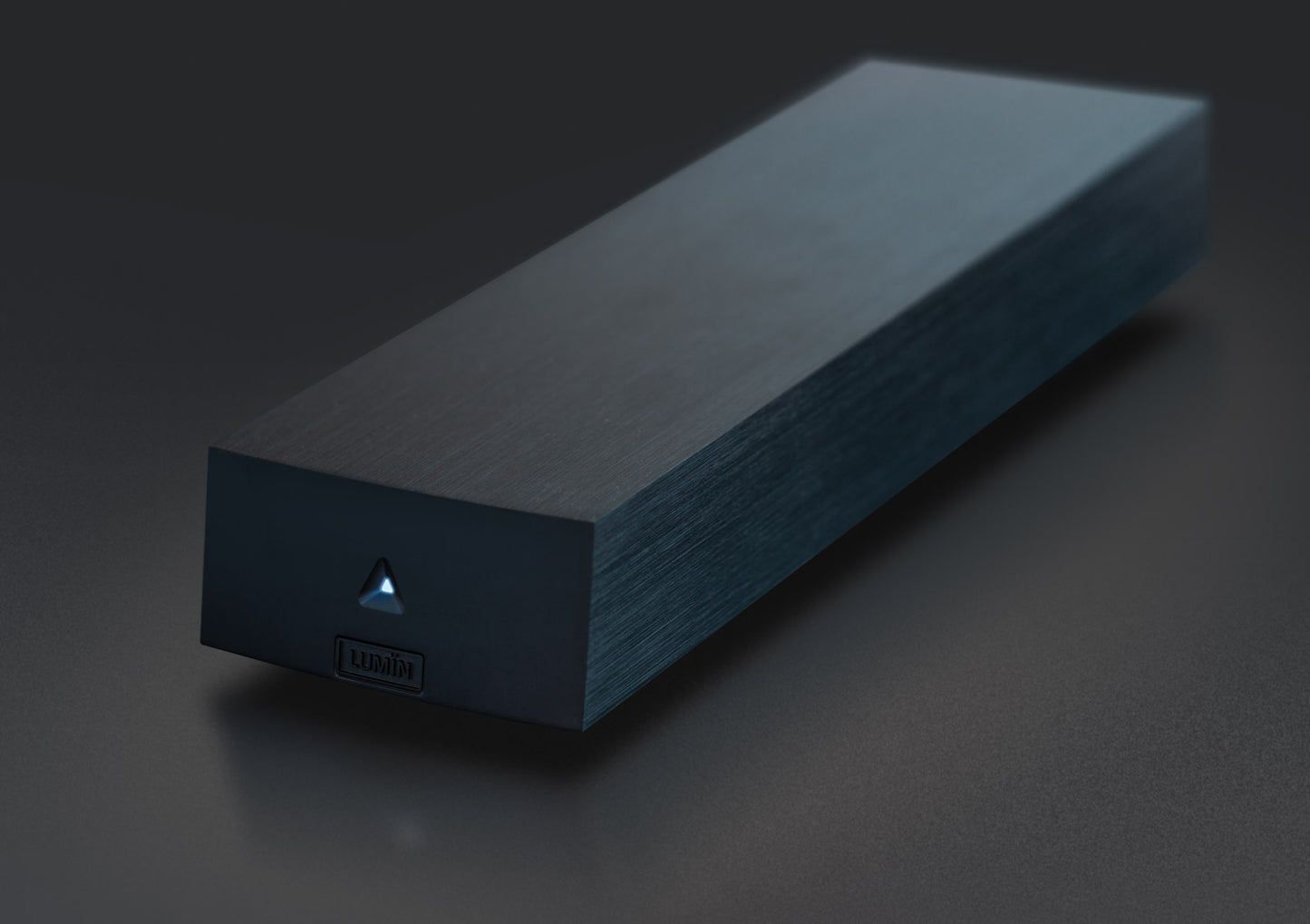

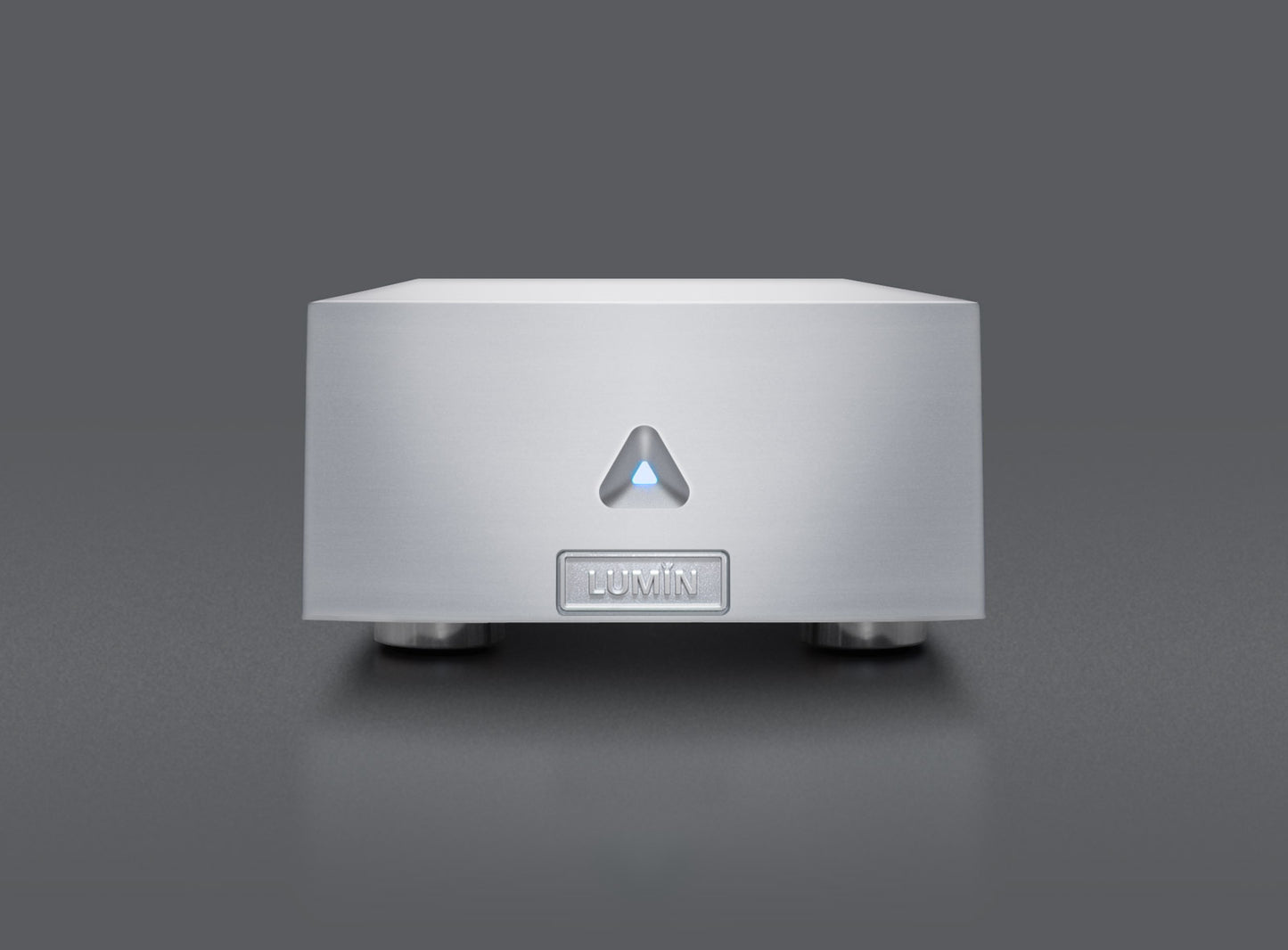

LUMIN X1 PSU

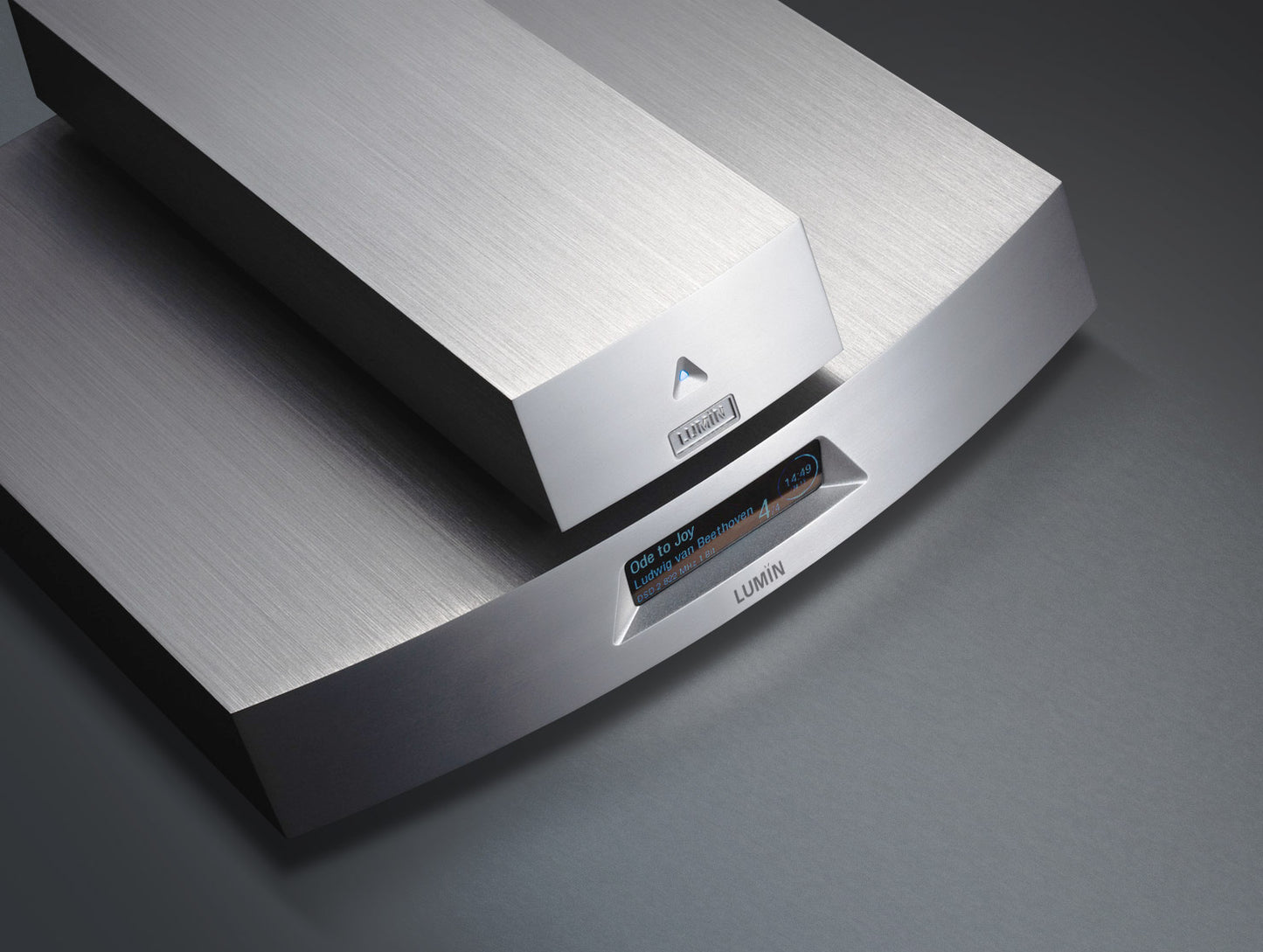

The perfect upgrade for your LUMIN

• Solid billet construction using all the same techniques as your main chassis
• Thick aluminium walls provide even more shielding
• Available in anodised black and raw silver
• Supplied with a custom cable for S1 / A1 / T1 / U1 compatibility

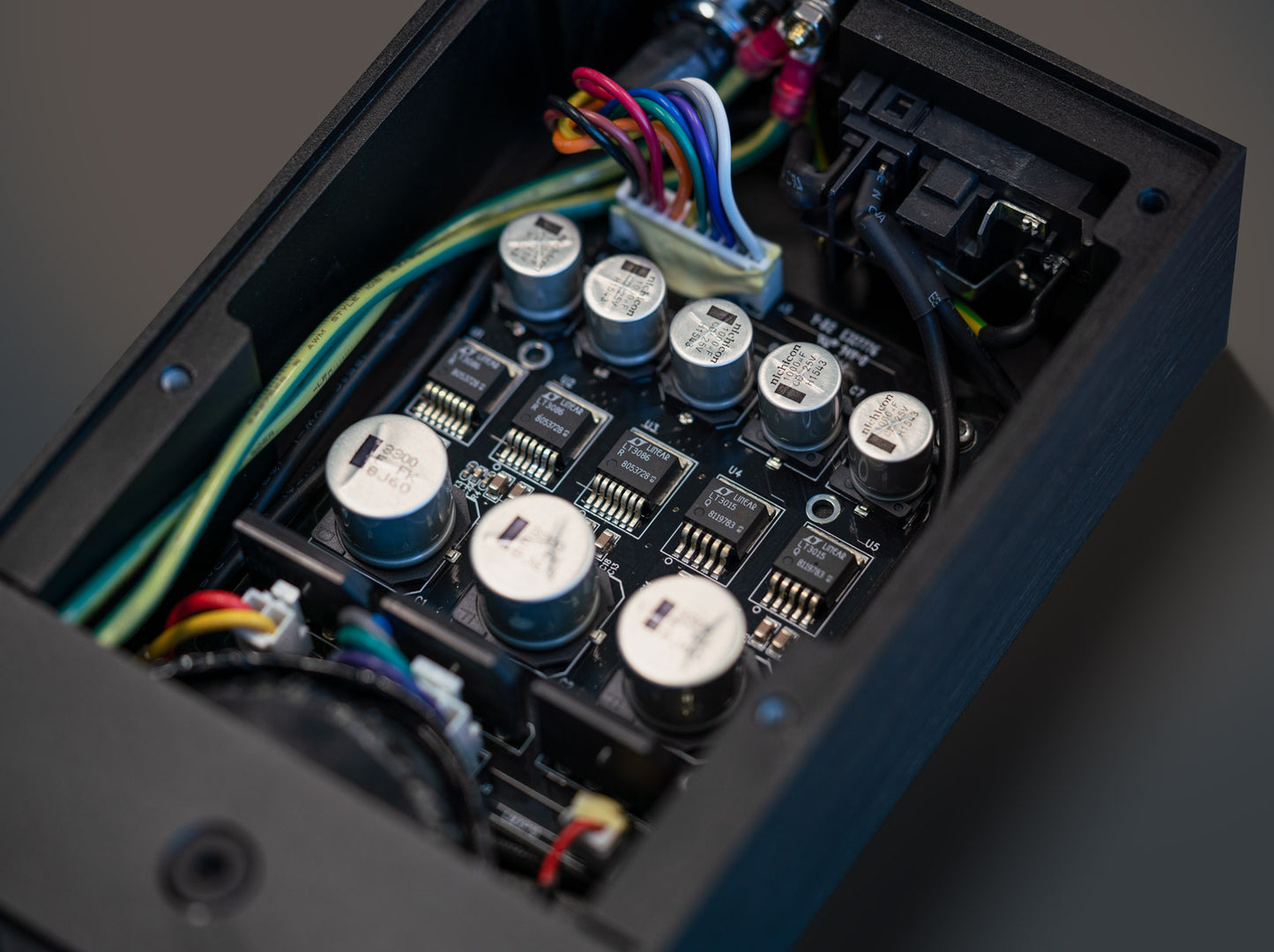

• Separate digital and analogue circuitry
• Low-noise Linear Regulator
• The highest quality components used throughout
